Setting Building Level Vacation Schedule from Airoverse for Facilities

2 Minute Read

| Overview

A 'Vacation Schedule' is similar to building schedule, but unlike a building schedule its only comprised of a day/date range. During this period, your building HVAC recognizes that the needs required are not the same as during a building schedule, and the system operates in a setback (or unoccupied) mode, in which the desired temperatures are defined by a much larger range than in the scheduled duration (or setpoint mode).

| Accessing Vacation Schedule

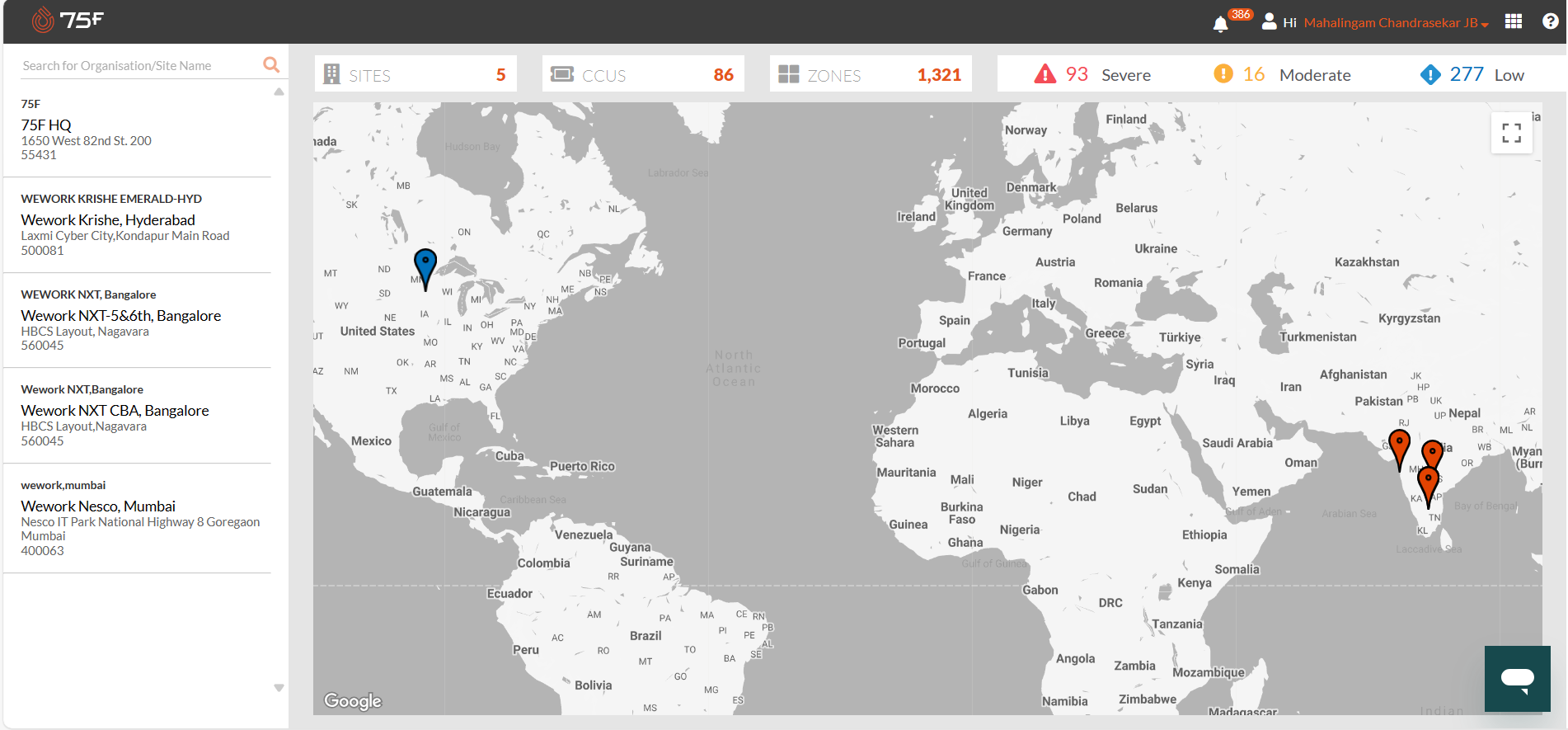

Navigate to the Airoverse for Facilities home page:

• Select the site in scope.

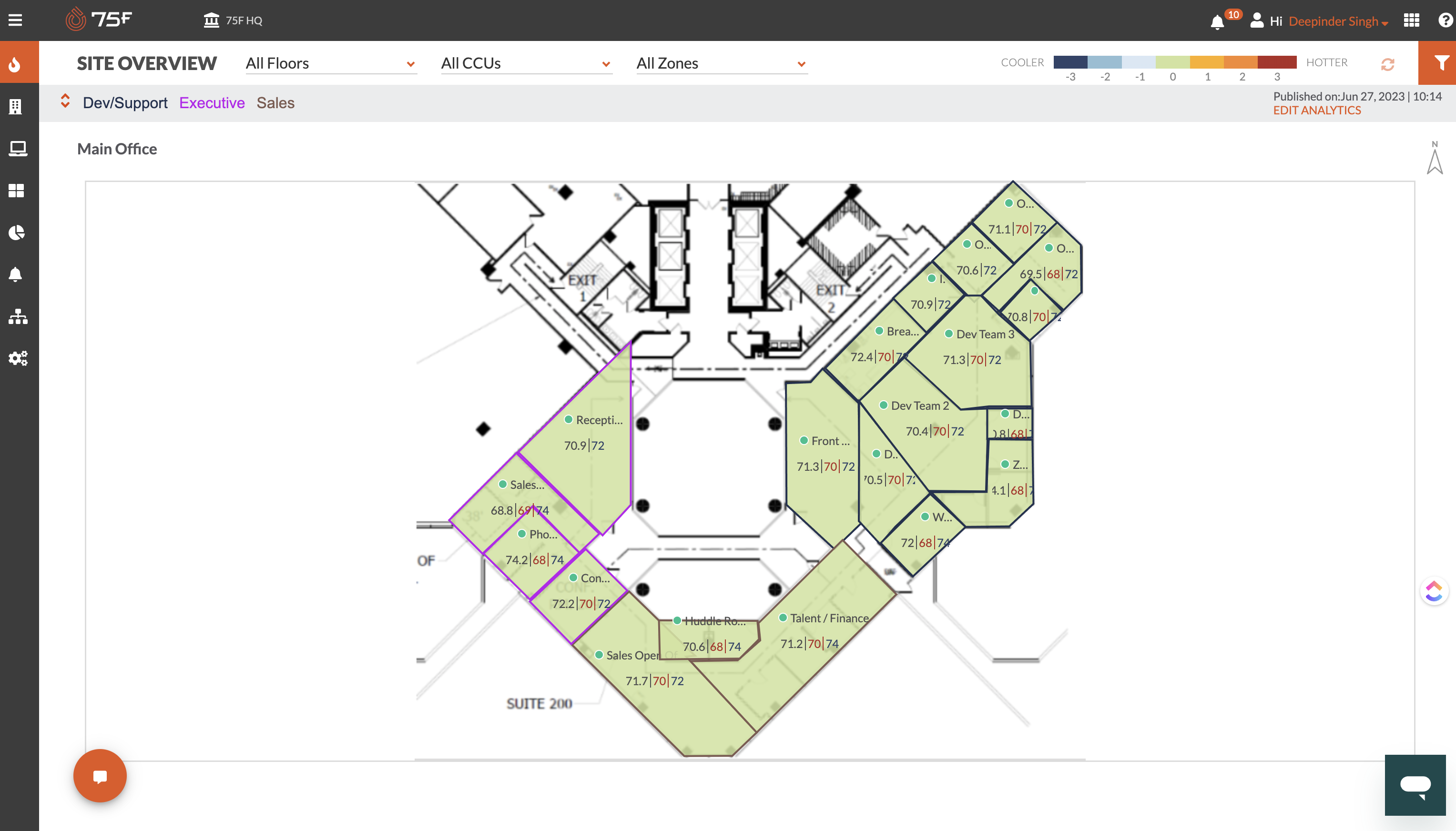

The heat map screen below is displayed:

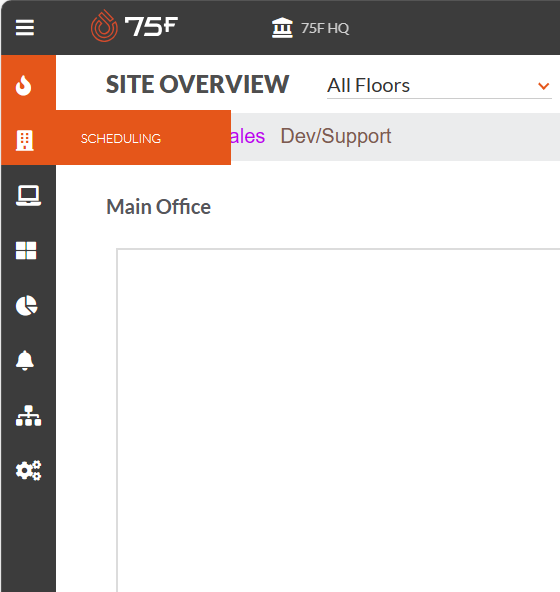

• Click 'Scheduling'

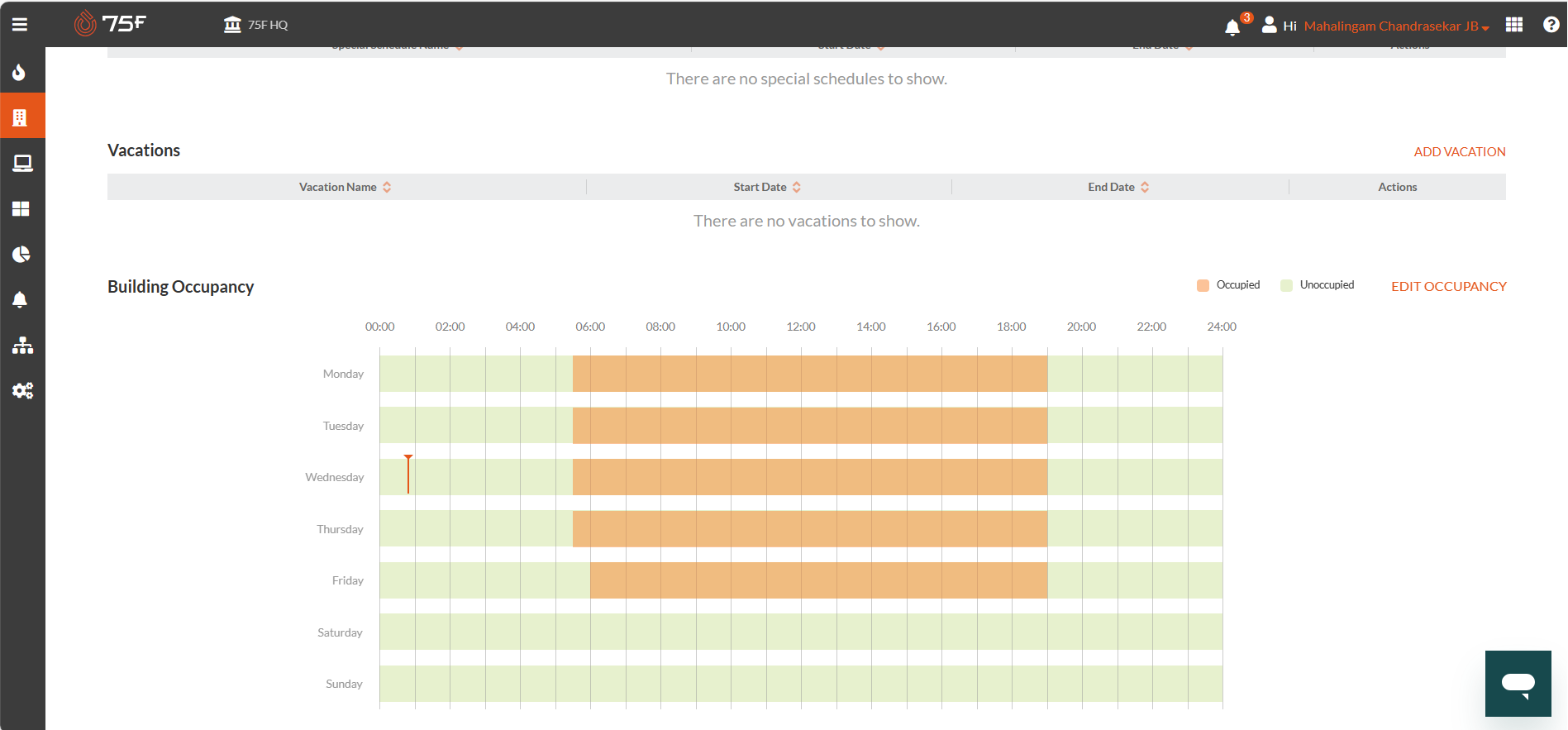

The Building Schedule screen is displayed with a 'Vacation Schedule' section.

| Setting a Vacation Schedule

To set a new entry for Vacation Schedule:

• Click 'Add Vacation' next to the vacation.

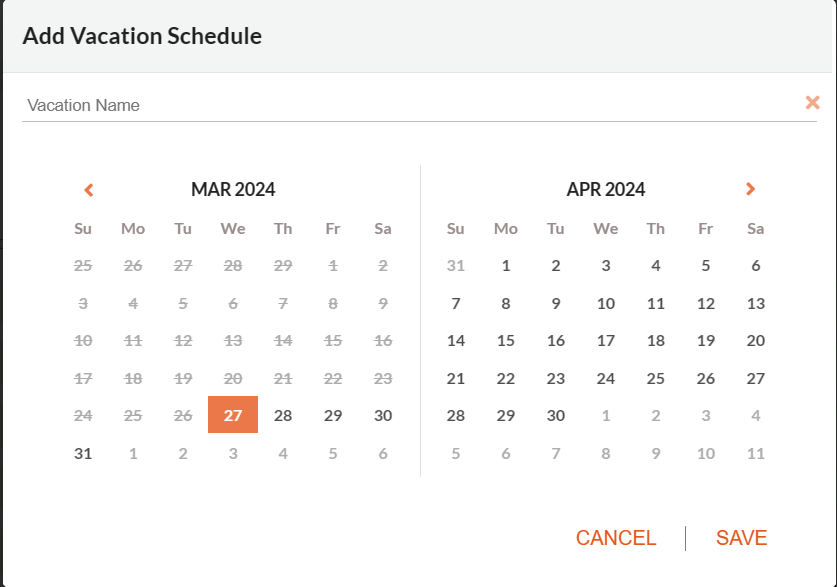

The 'Add Vacation Schedule' window is displayed as shown below:

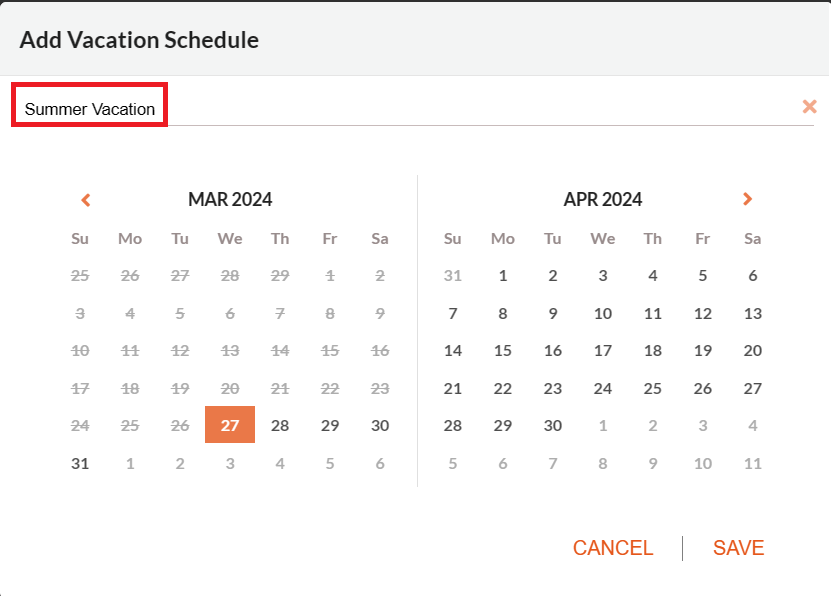

• Enter a name for the vacation.

• Select the date or a date range that the vacation will take place on:

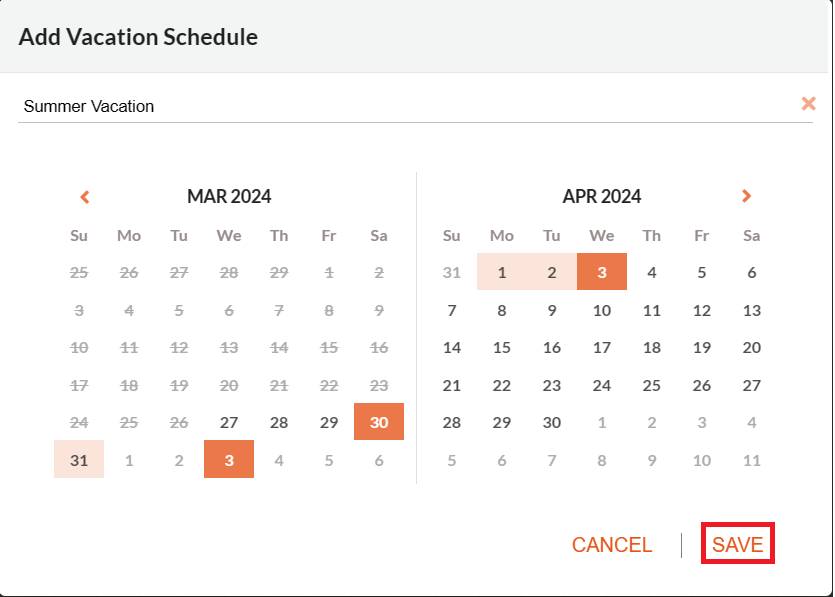

• Click 'Save' to confirm and create the vacation schedule for the building.

Note: You can also edit an exiting vacation by simply selecting the vacation you wish to change, and modifying the date or date range.

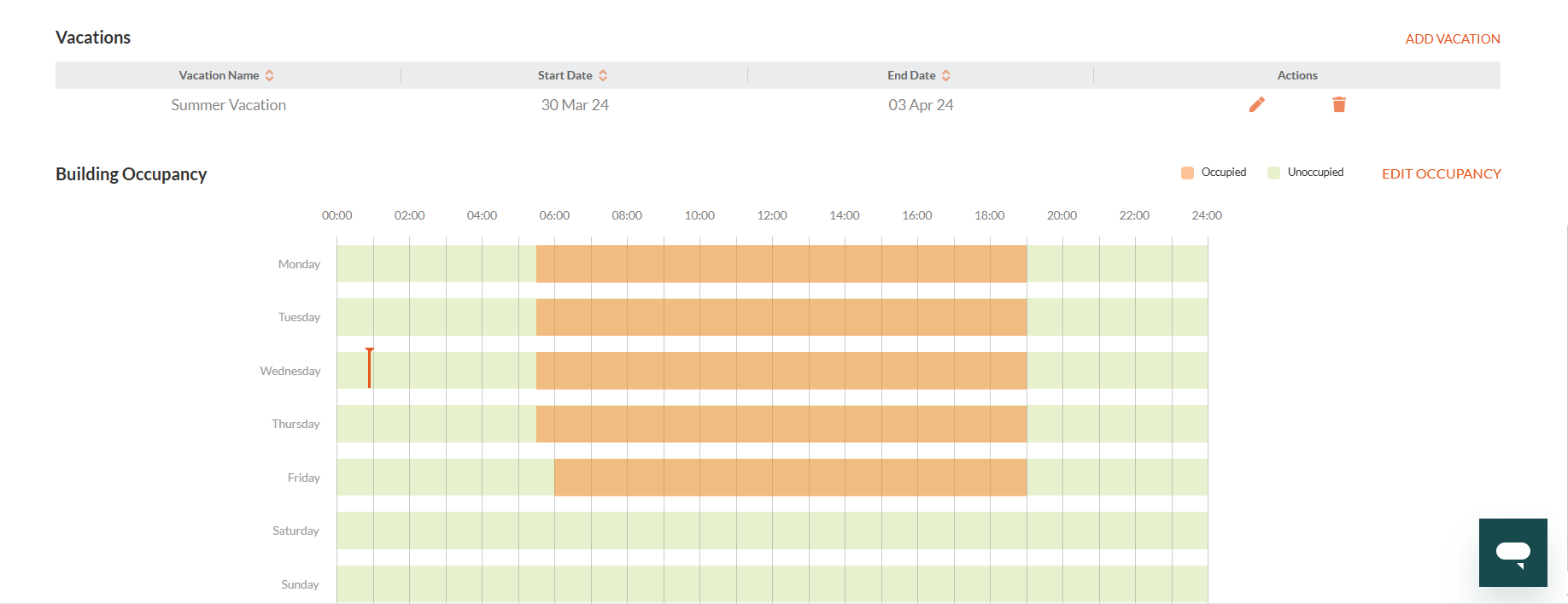

Once a Vacation is added for the building from the Airoverse for Facilities, the same information gets relayed to all CCU's in your building.
