Reconfiguring System and Zone Profiles Internal

2 Minute Read

| Reconfiguring Profiles

Profiles are configured from the CCU but can be reconfigured for minor modifications in configuration settings and values from the internal portal.

| System Profile Reconfiguration

It is reconfiguring a profile from the CCU widget screen in the Internal portal.

To reconfigure a system profile:

From the internal portal heatmap screen for the site.

• Click the CCU for which you wish to reconfigure the profile parameters.

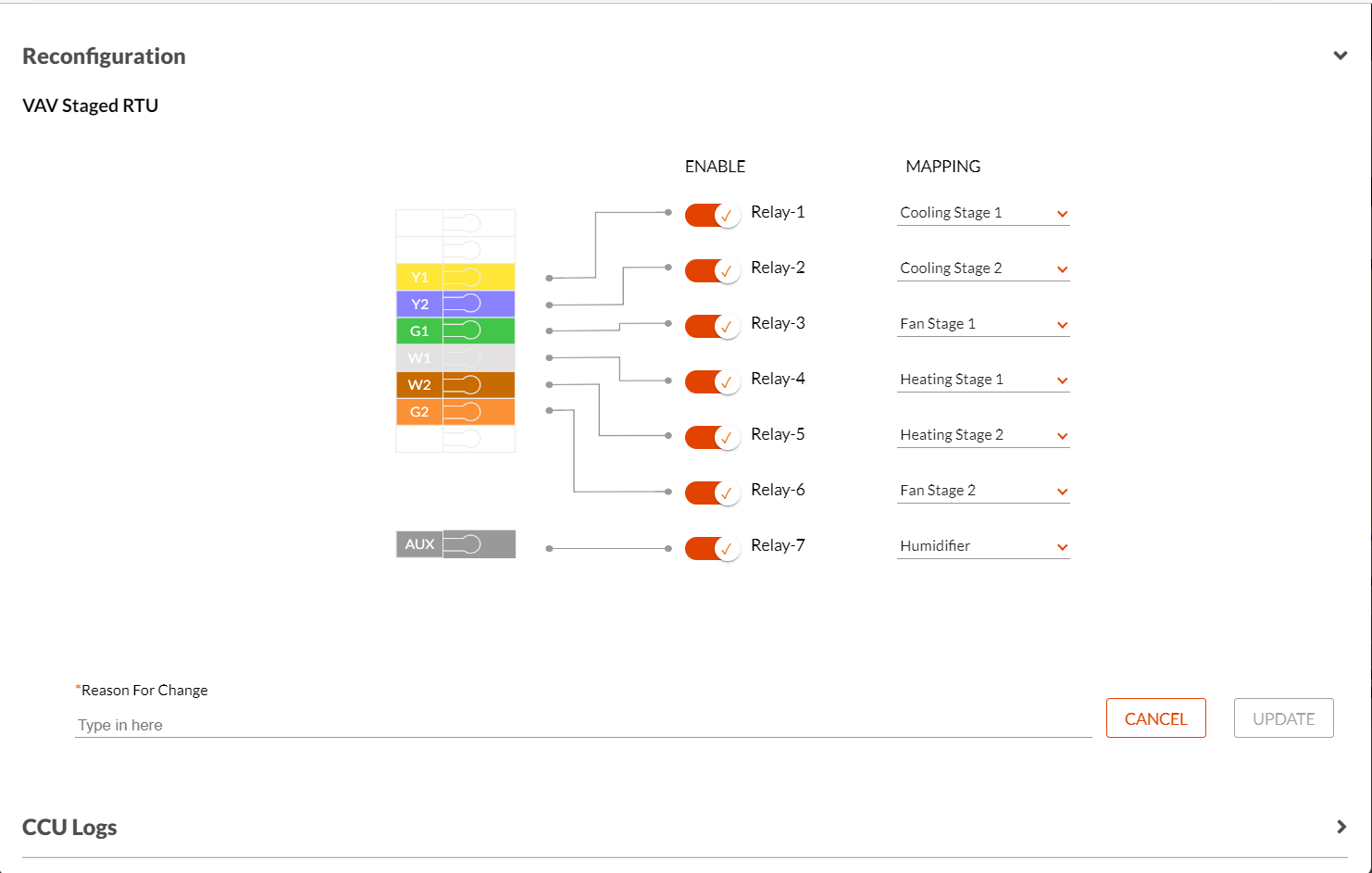

• Scroll down further in the system-level visualization screen to locate the reconfiguration section and expand the Reconfiguration section as shown.

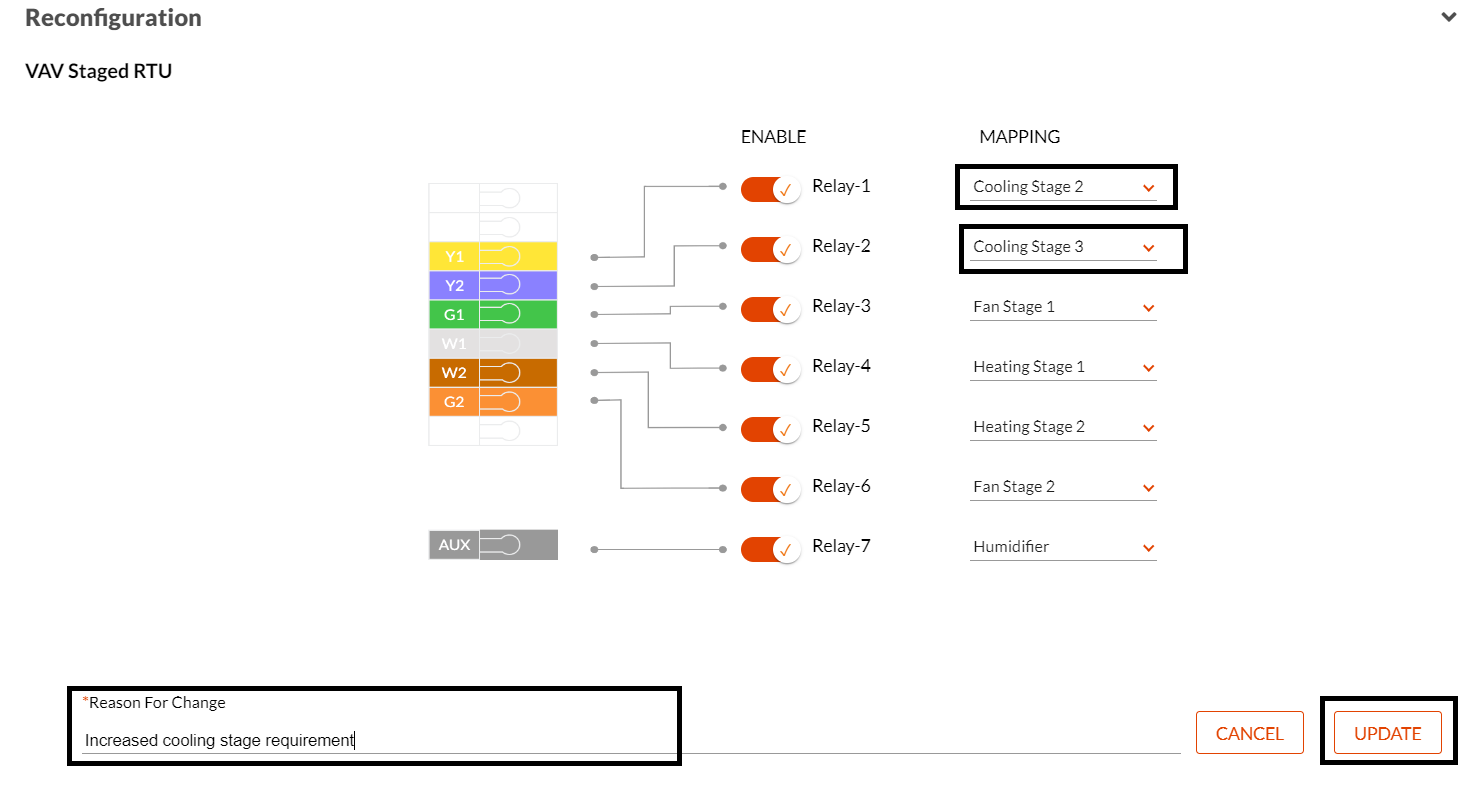

• Make the necessary edits.
• Enter the reason for the change.

• click Update.

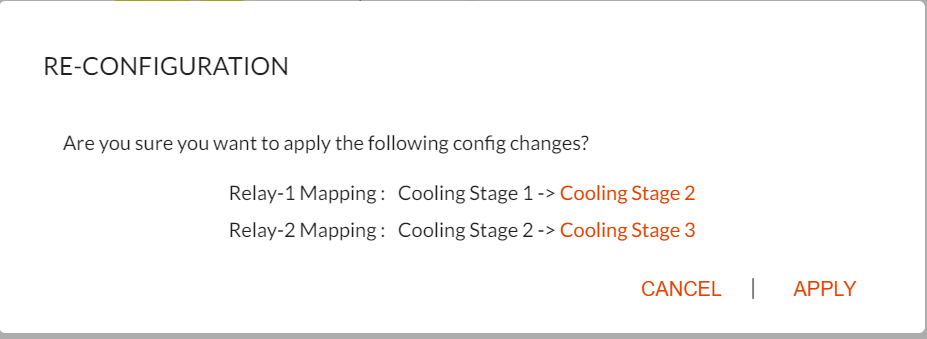

A confirmation window is displayed.

     7. Click Apply to confirm the changes.

A message that the configuration changes are saved successfully appears.

| Terminal Profile Reconfiguration

It is reconfiguring a profile from the zone widget screen in the Internal portal

To reconfigure a terminal profile:

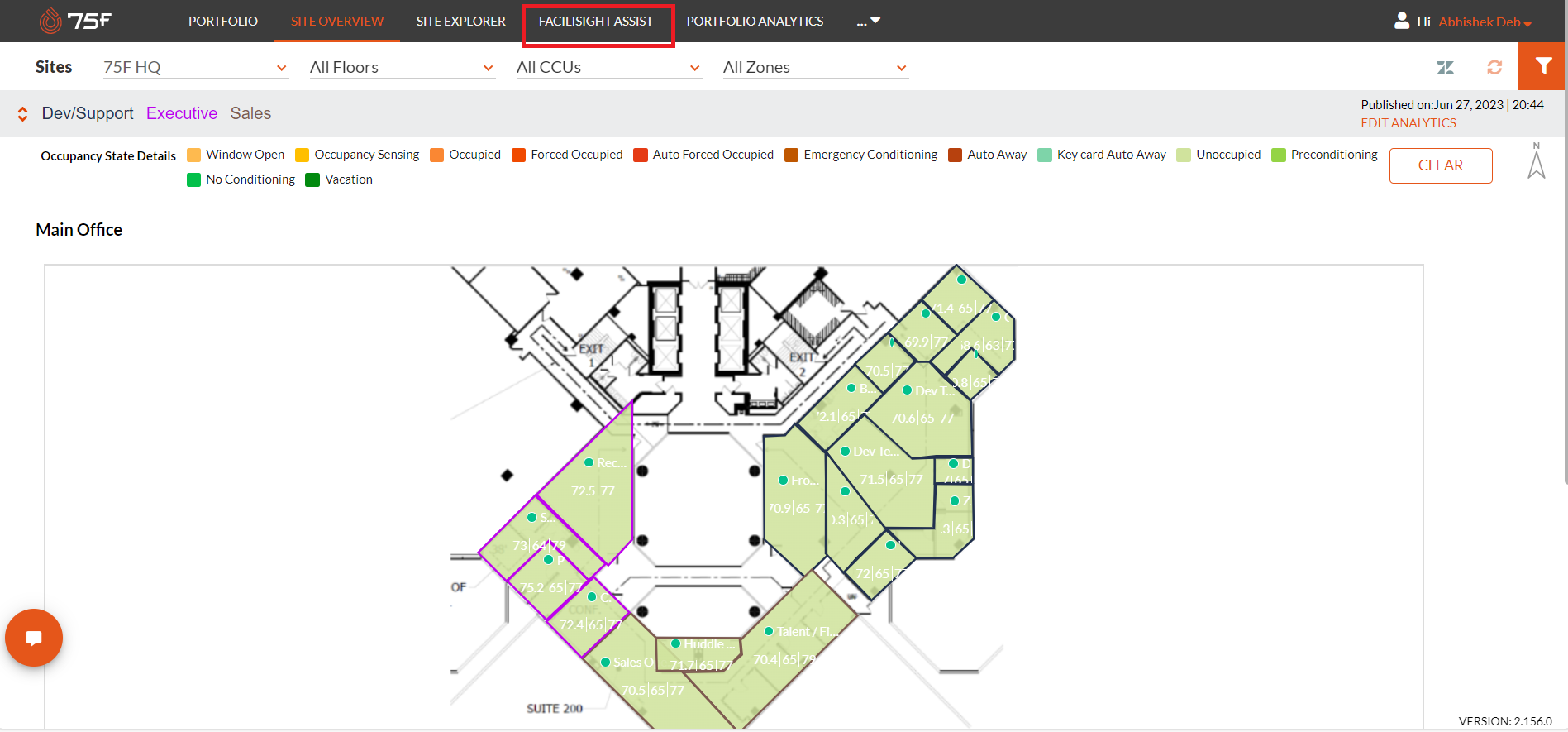

From the internal portal heatmap screen for the site.

• Click the Zone for which you wish to reconfigure the profile parameters.

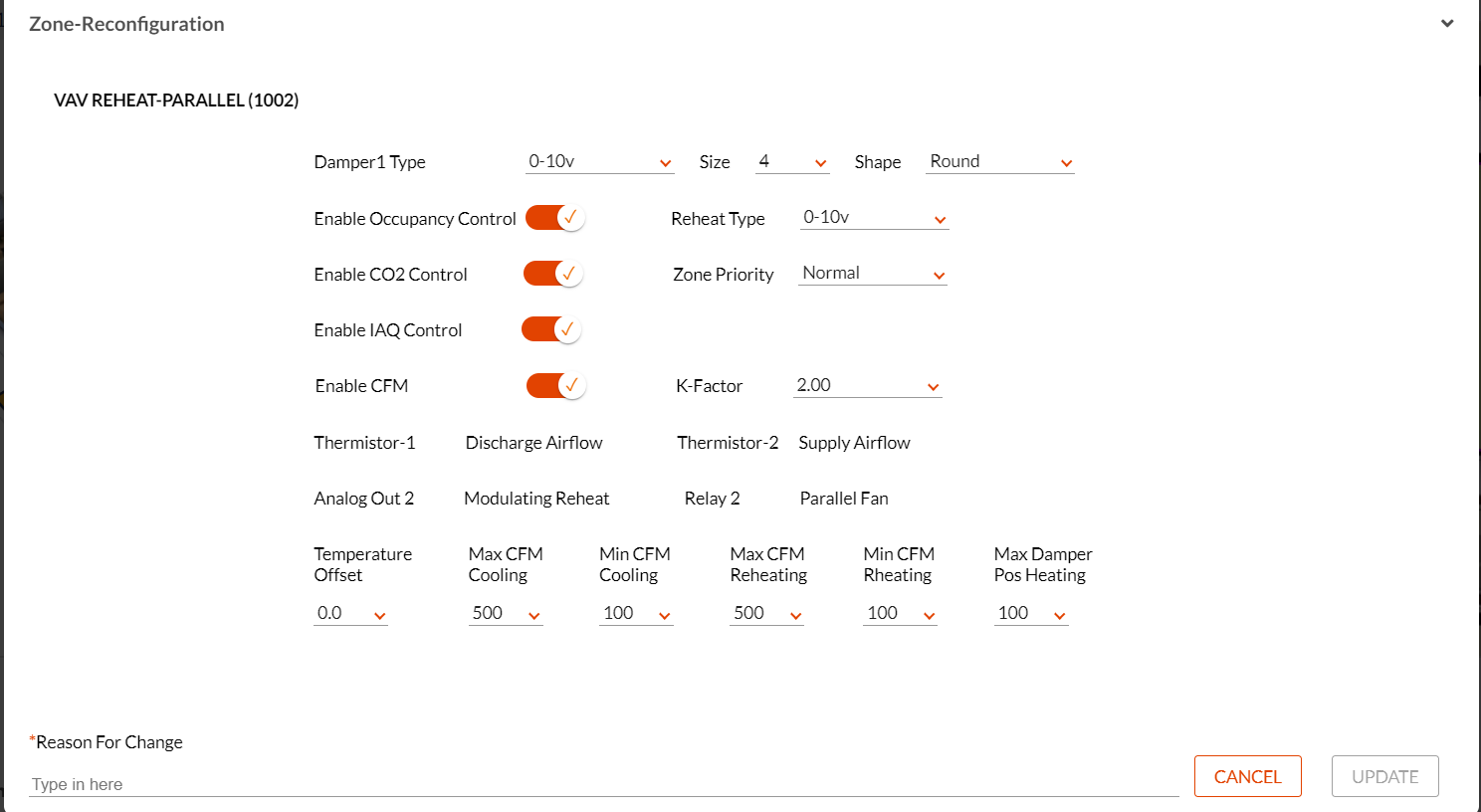

• Scroll down further in the zone-level visualization screen to locate the reconfiguration section and expand the Reconfiguration section as shown.

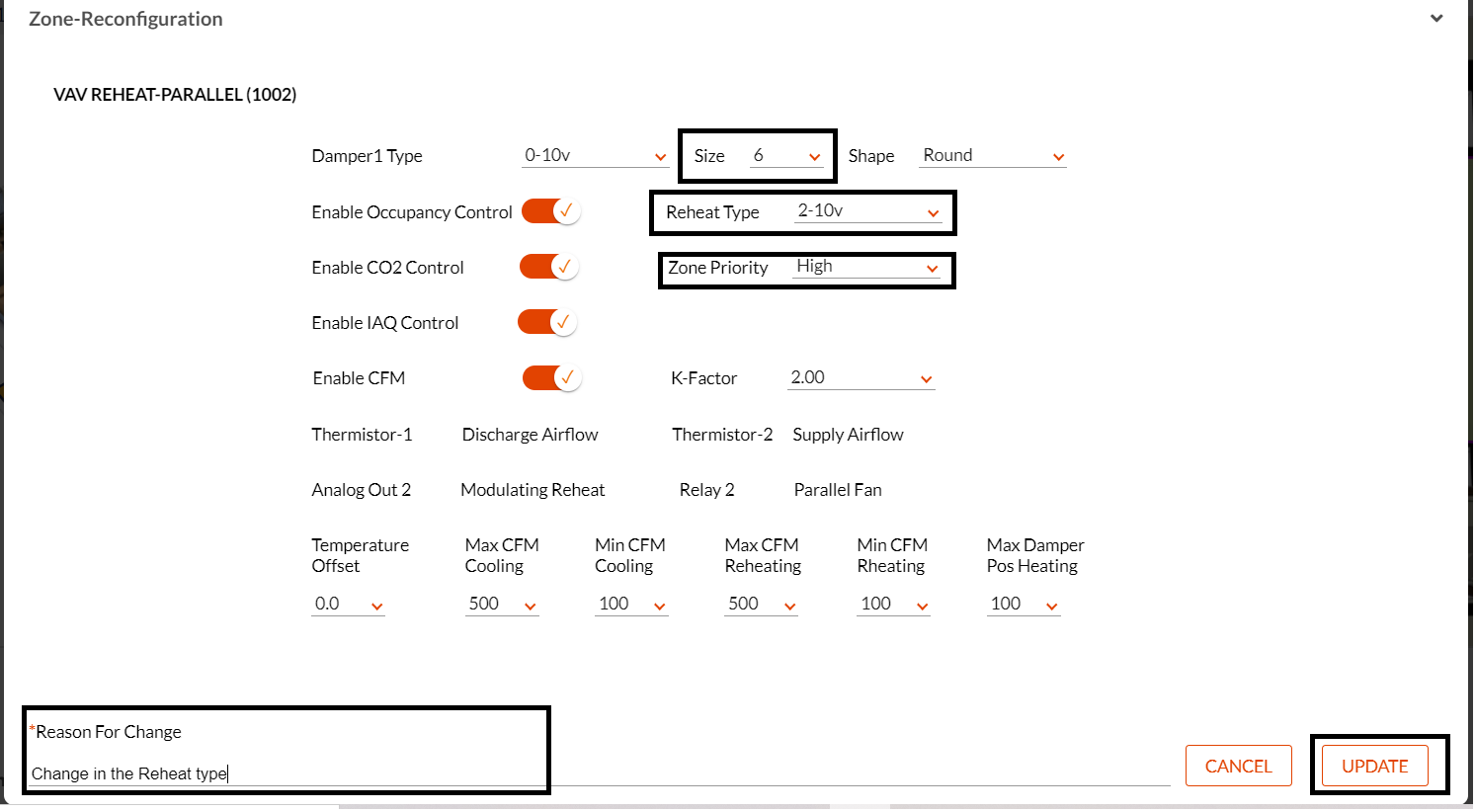

• Make the necessary edits.
• Type the reason for the change.

•  click Update.

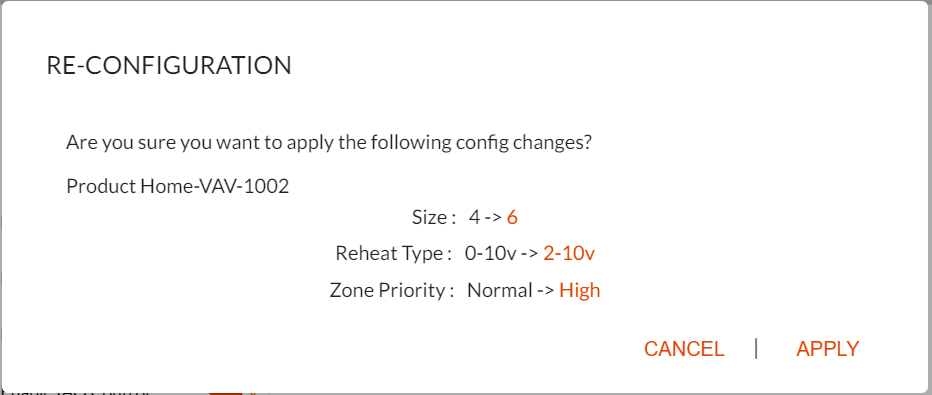

A confirmation window appears.

    7. Click Apply to confirm the changes.

A message that the configuration changes are saved successfully appears.
