| Introduction

The common framework provides the users with a consistent builder, sharing mechanism, like, bookmark, adding description, and custom arrangement capability for analytics.

A Common Framework is introduced to maintain a consistent design pattern and workflow so as to improve and increase user engagement. This would also help users engage in a standardized sharing mechanism and contribute more frequently to the system.

The Analytics feature includes the existing custom widgets capability which have been enhanced with a common framework featuring calculated parameters with Blockly support for parameter conditions. Also, additional enhancements have been introduced which include dual Y-axis configuration, Y-axis scaling, with minimum/maximum configuration values, enabling users to derive deeper insights and make more informed decisions.

| Types of Analytics

Analytics are categorized into two types depending on visibility. They are as follows:

Analytics Created by Me
Analytics shared by others.

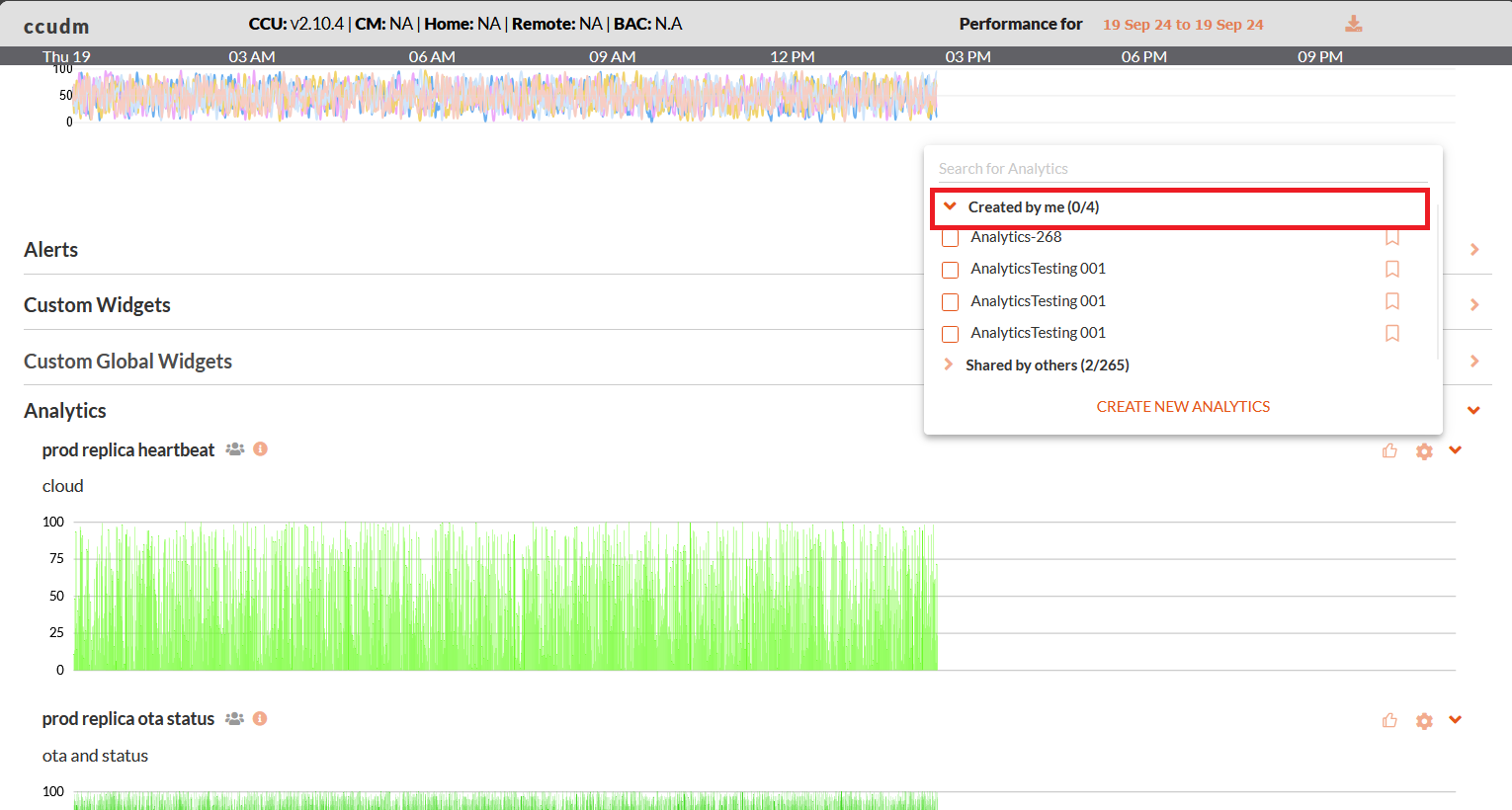

Analytics Created by Me

Analytics shared by me are the ones that are created by the signed-in users and shared with other users. This is visible to all Internal and Airoverse for Facilities users once shared.

created by me.png

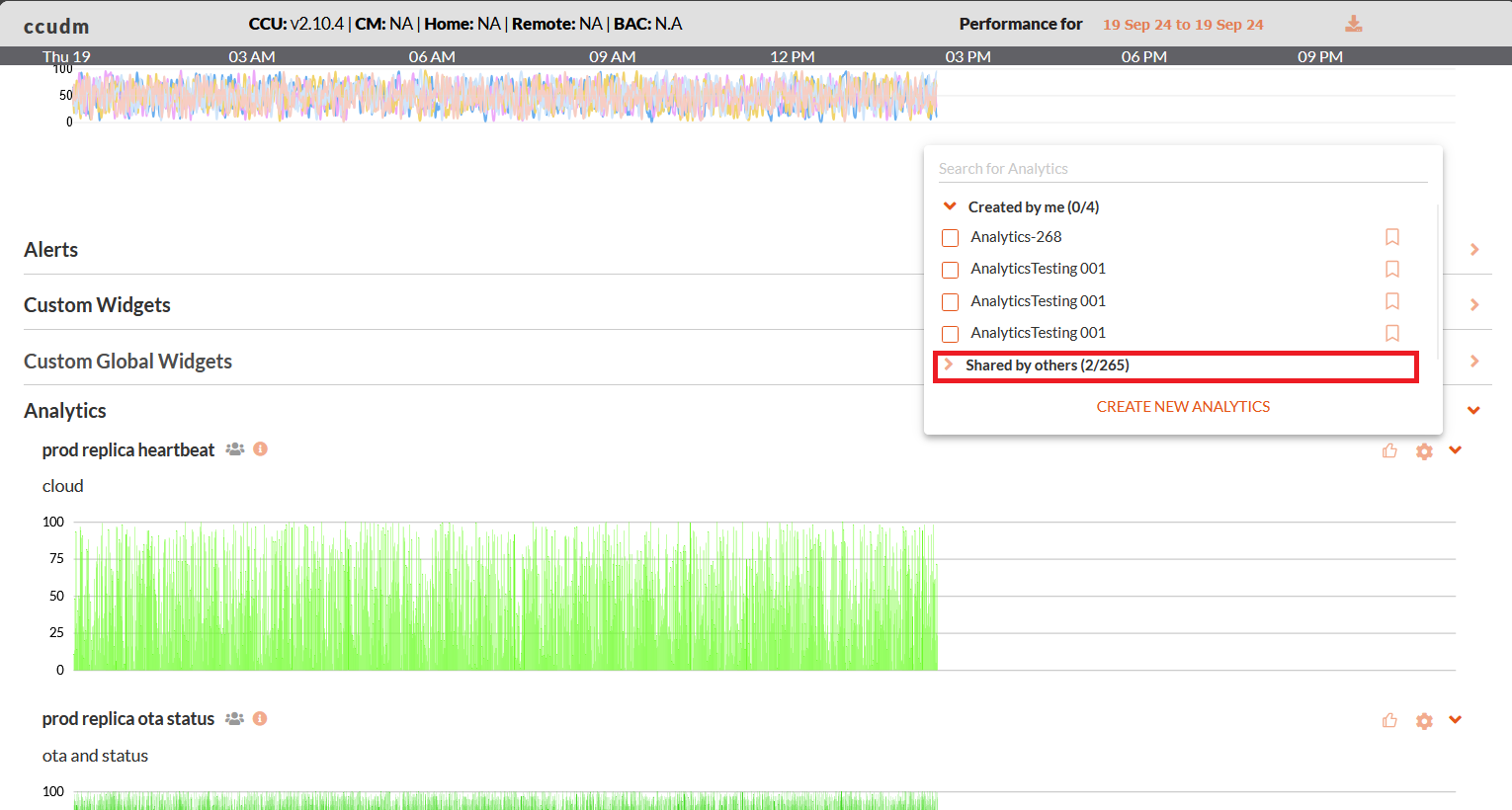

Analytics shared by Others

Analytics shared by others are the ones that are created by other users as shared tables. This as well is visible to all Internal and Airoverse for Facilities users once shared.

shared by others.png

Note: Support users have the capability to share analytics to Internal Portal only or both Internal+Airoverse for Facilities

| Like and Bookmark Capability

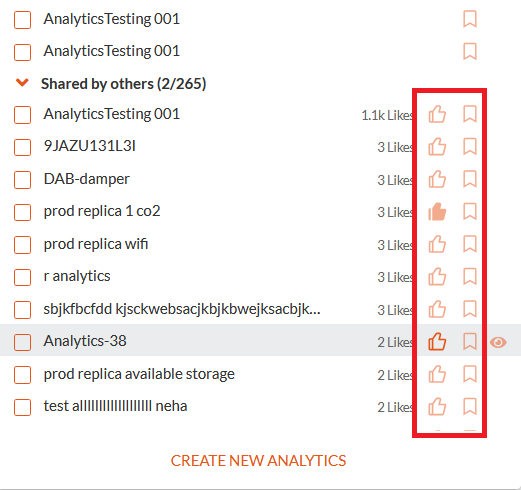

The common framework also provides capability to the users to like and bookmark analytics for future reference.

Screenshot 2024-09-19 150721-11191.png

Note: Like option is only available for analytics shared by others. However, a user can bookmark analytics created or shared by others for reference.

| View Capability

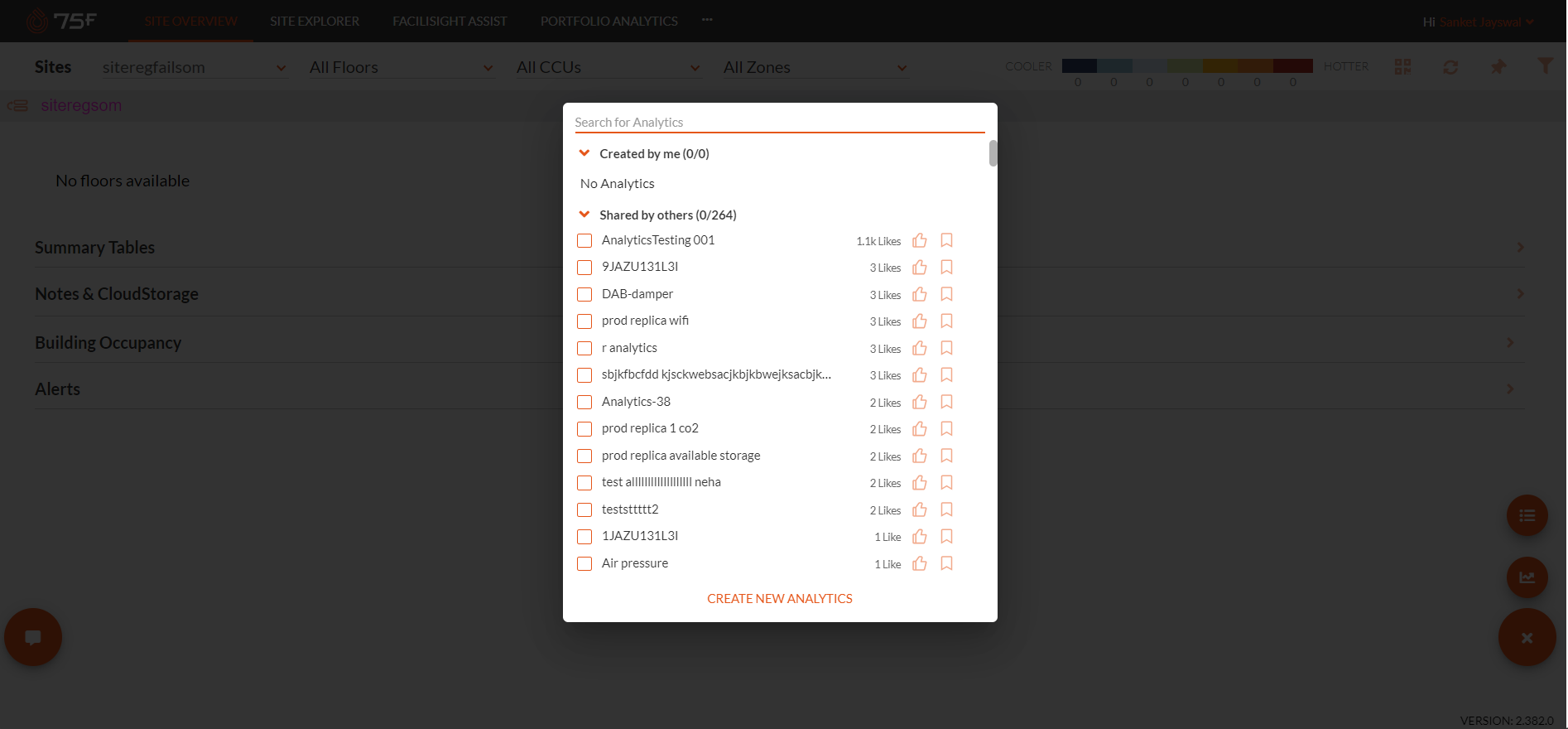

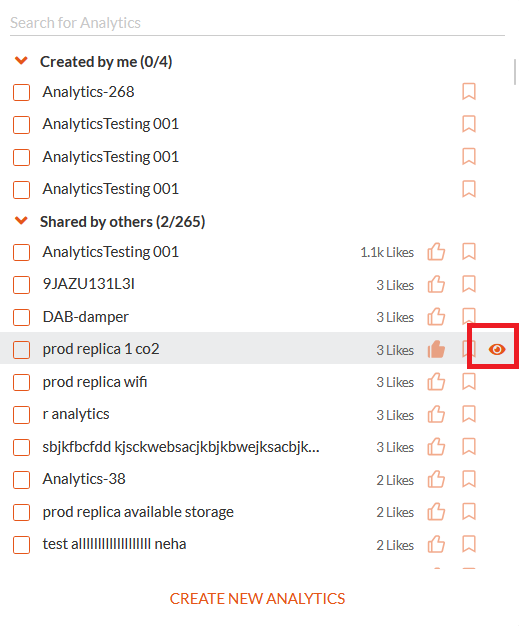

The common framework also provides capability to the users to view created analytics shared by others

Screenshot 2024-09-19 155434.png

Note: Users will be able to add a maximum of 20 analytics from Site Overview and 20 analytics from a specific system or zone page

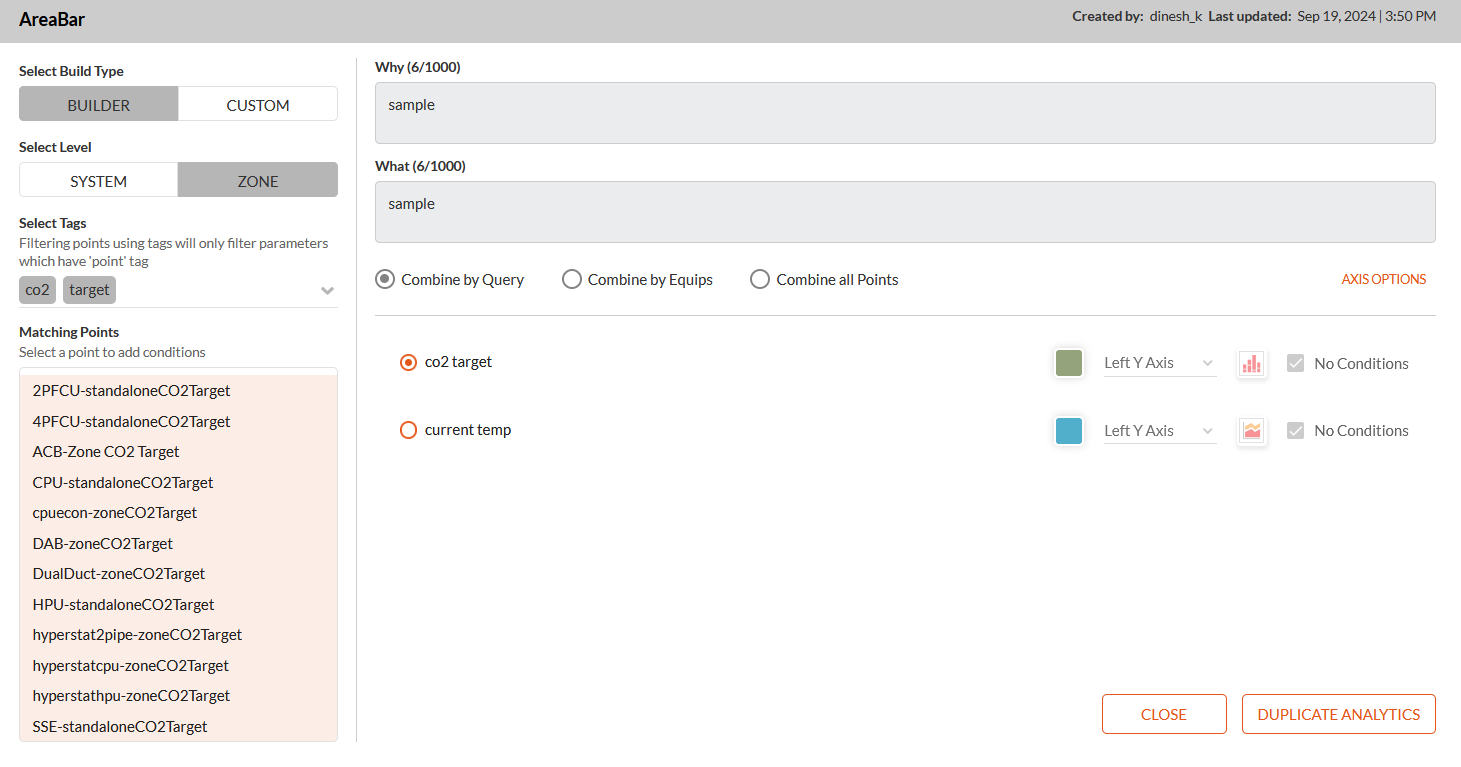

Click the view icon to view analytics shared by others

Screenshot 2024-09-19 180208.png

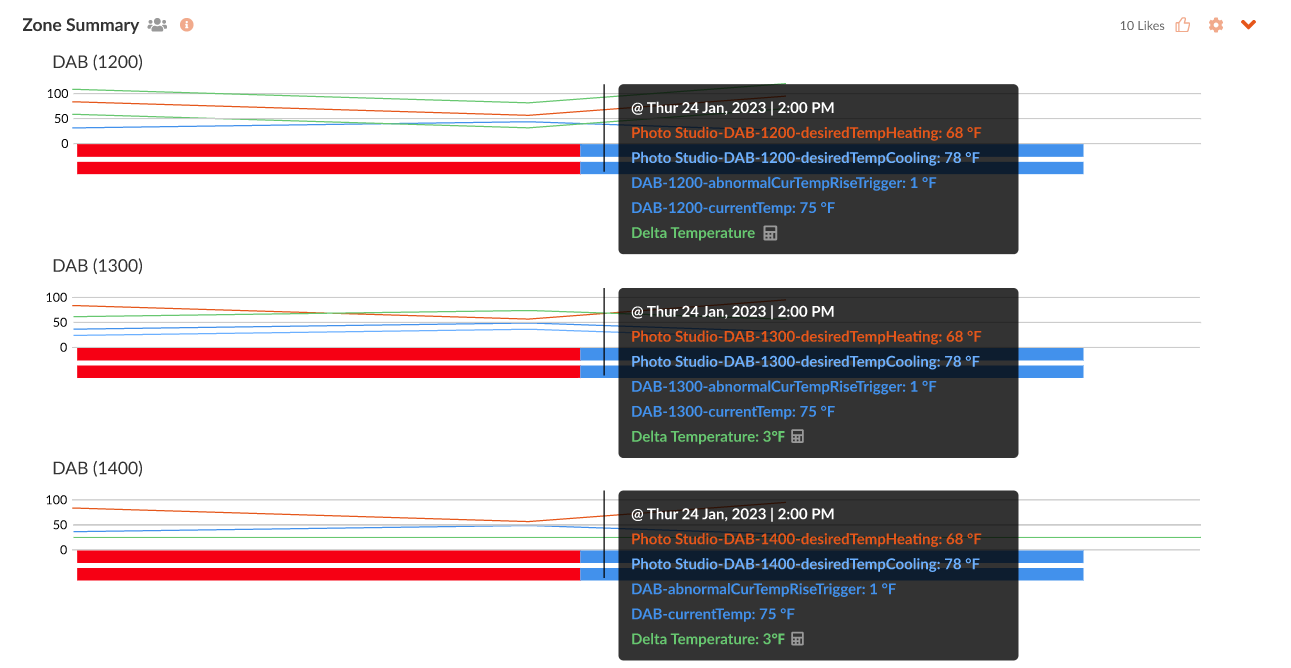

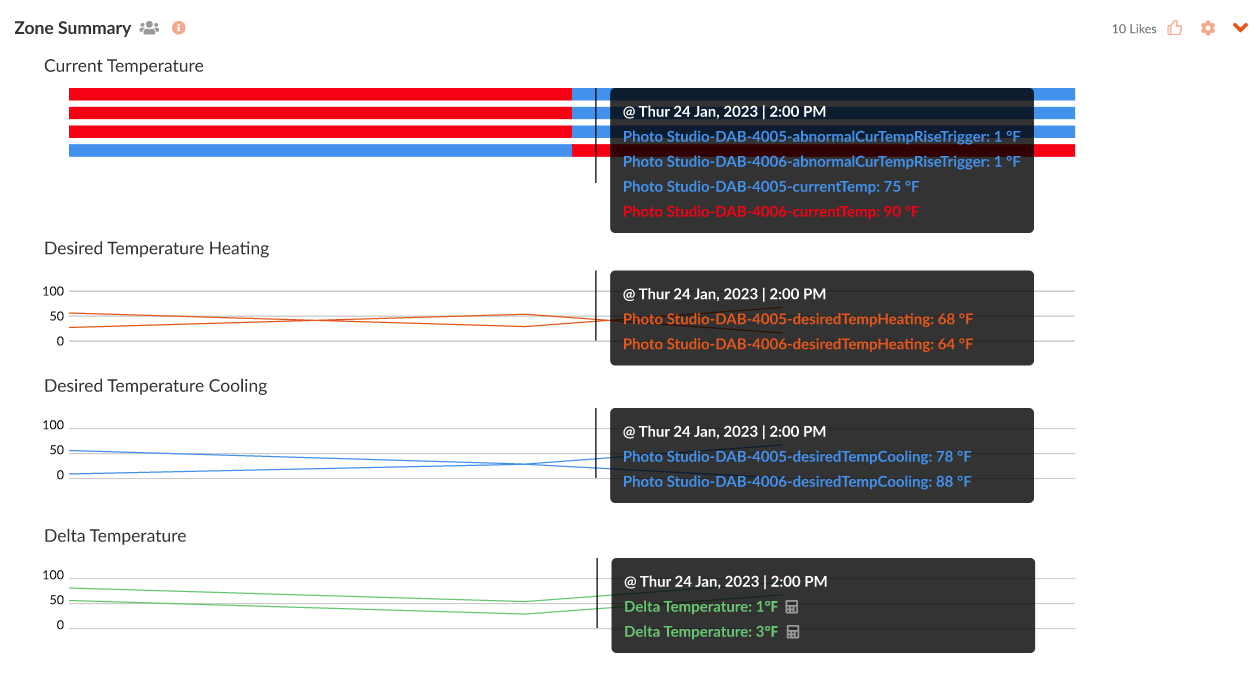

The analytics is displayed.

| Search Capability

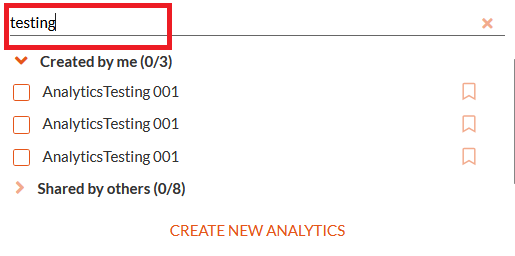

Users can also search for specific analytics in the table by typing in the name in the search bar.

Screenshot 2024-09-19 152026.png

| Accessing the Analytics

From the Widgets Screen

In the Widgets screen,

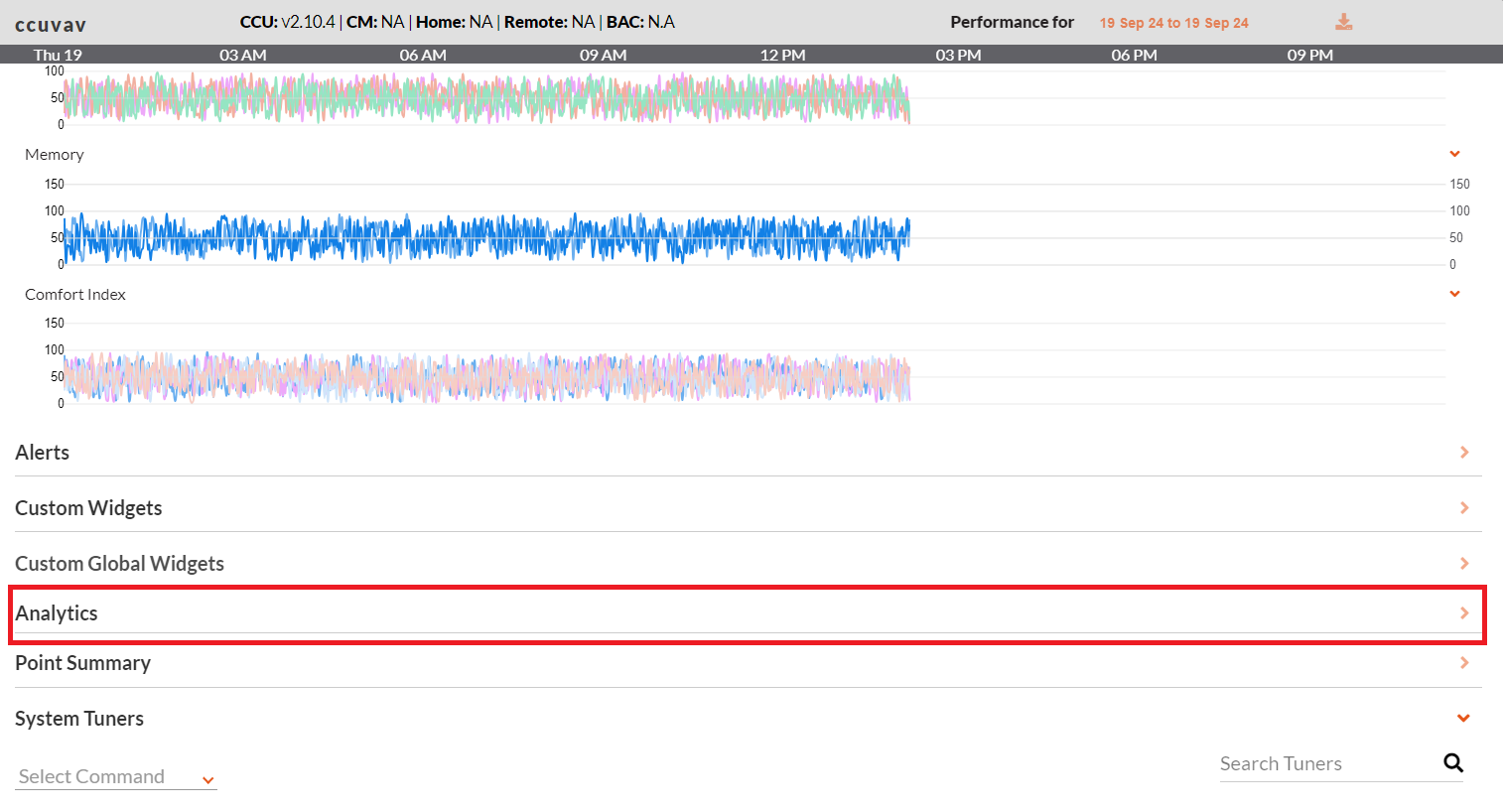

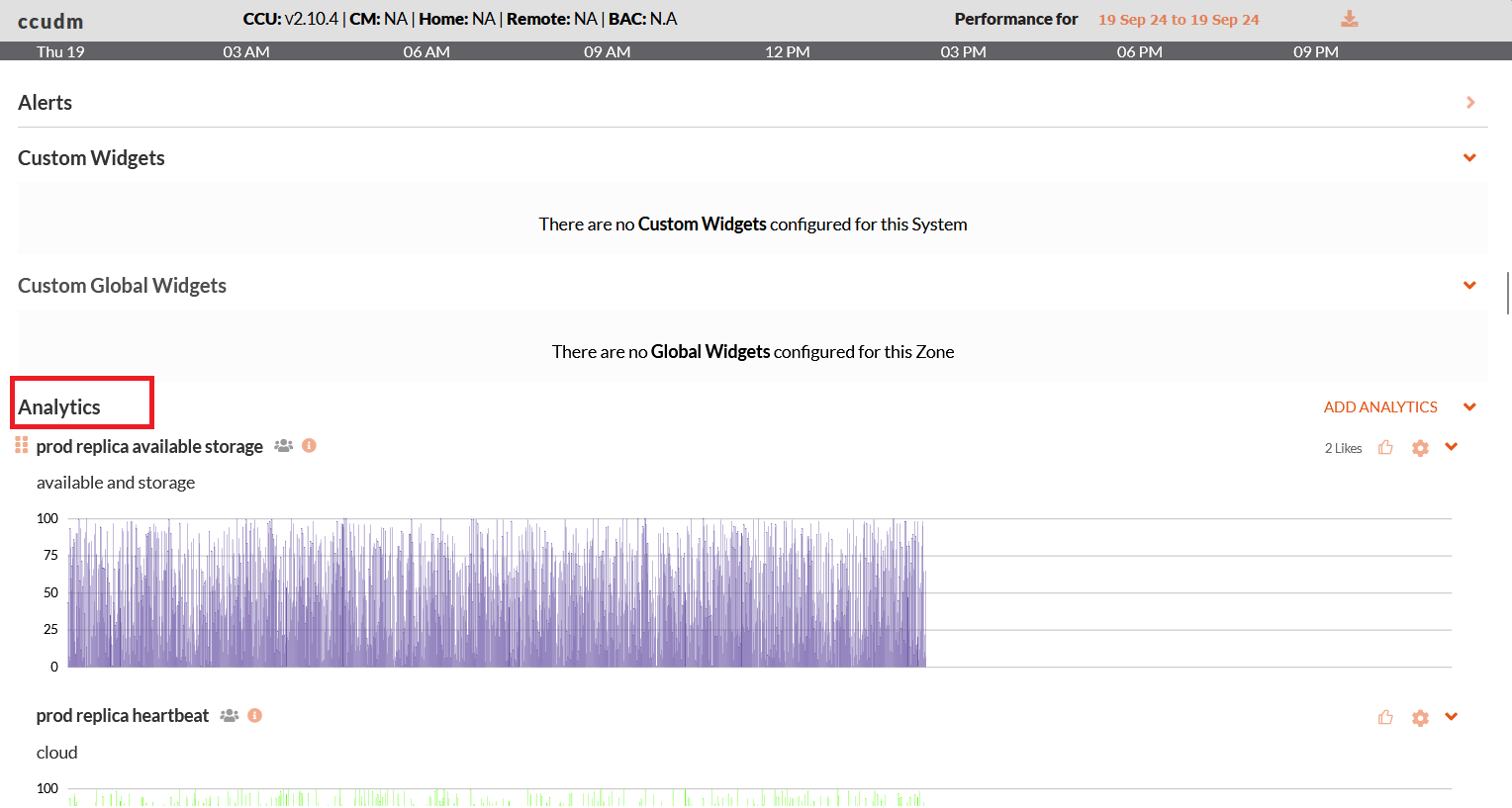

Click the Analytics tab

The Analytics tab is displayed.

analytics tab-1.png

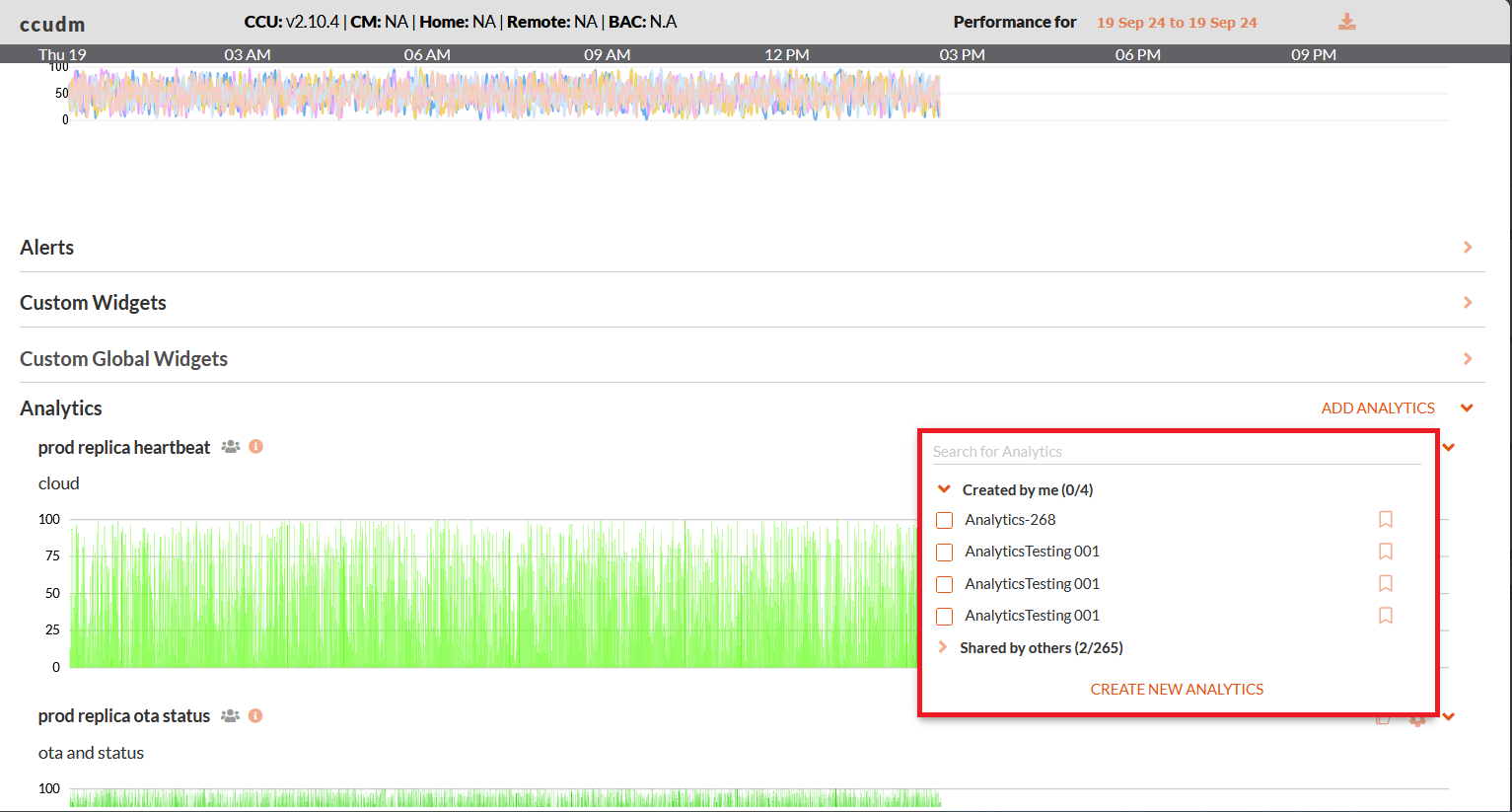

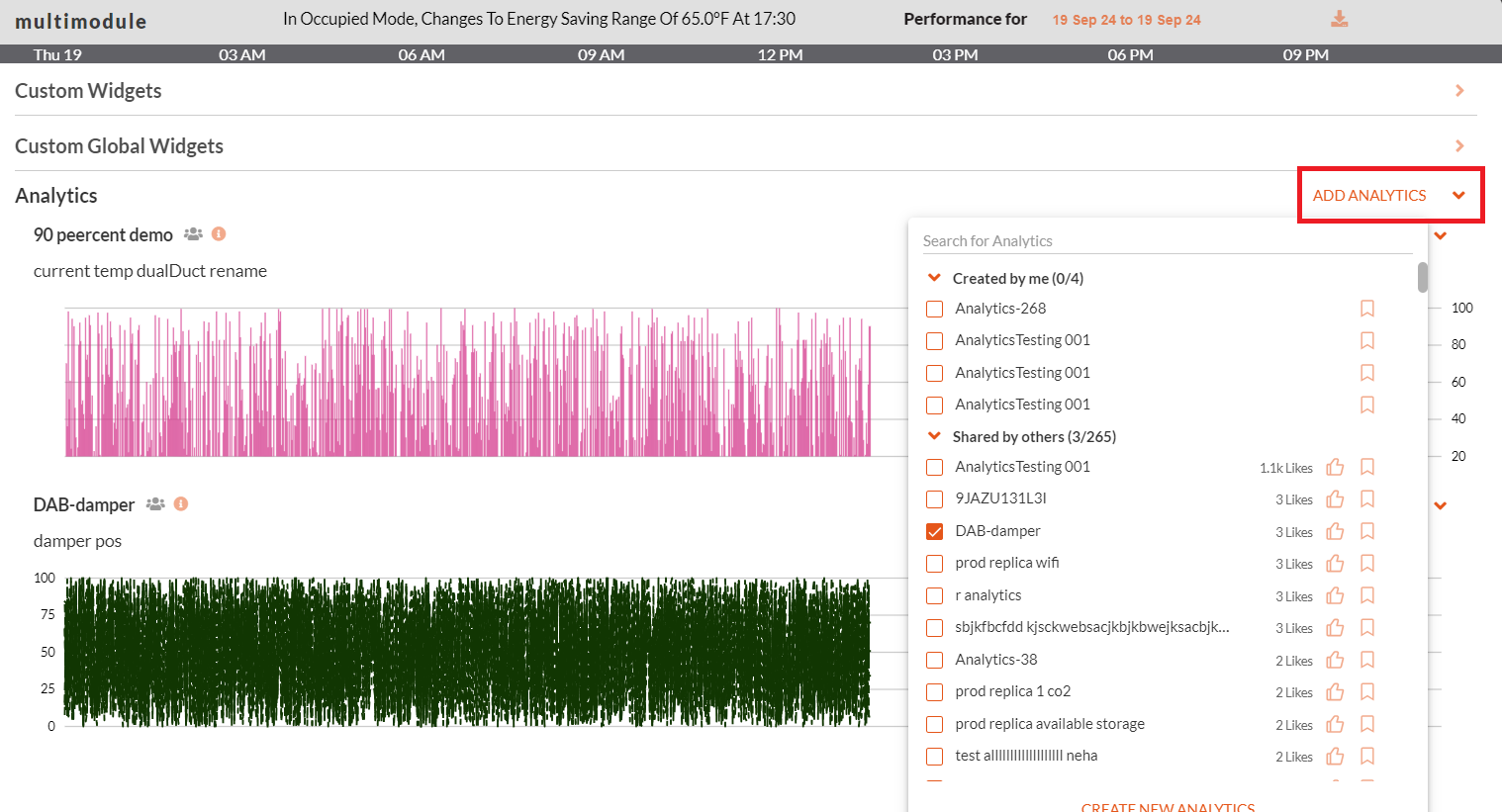

Click Add Analytics to bring up the Analytics table

Screenshot 2024-09-19 151033.png

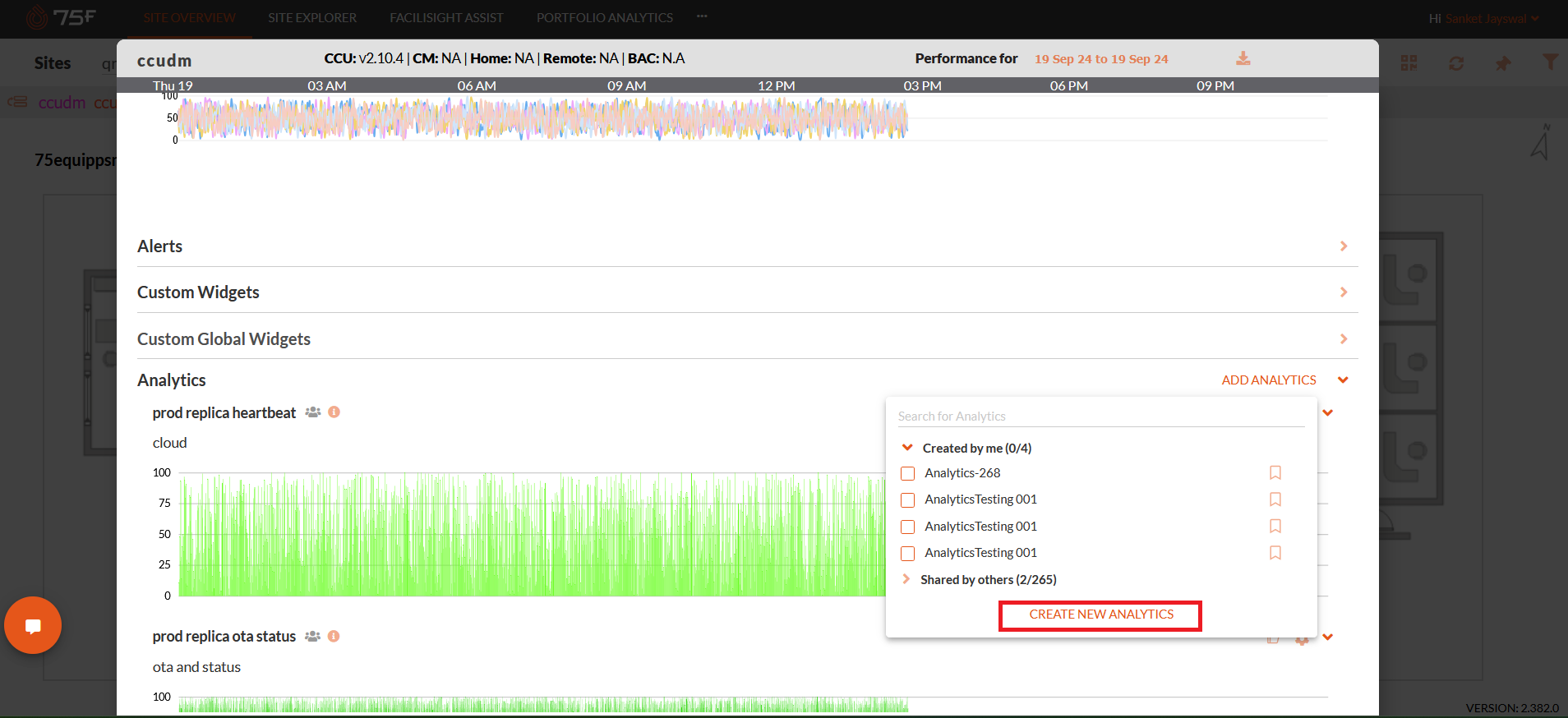

Click Create to create a new analytics

Screenshot 2024-09-19 151440.png

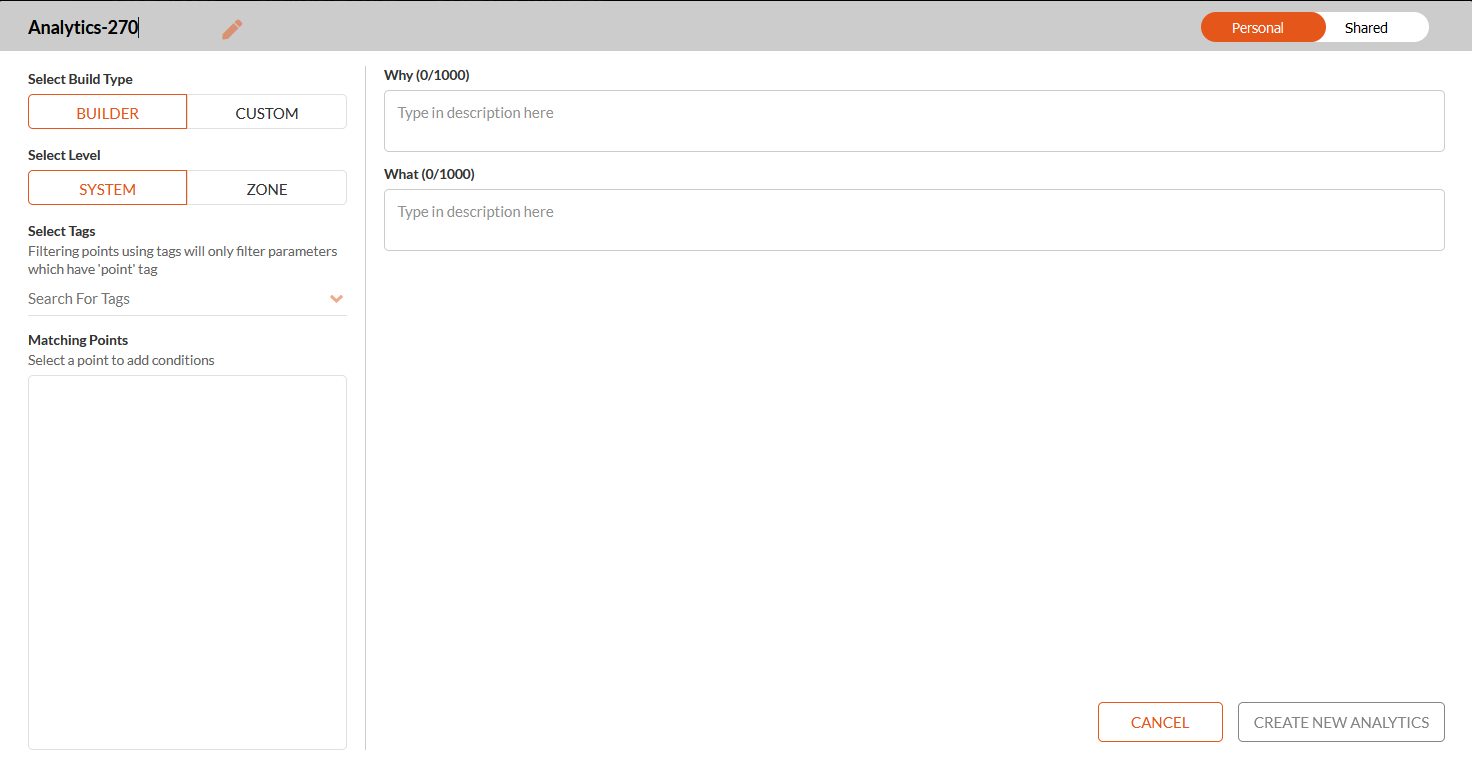

The analytics table is displayed.

Screenshot 2024-09-19 151633.png

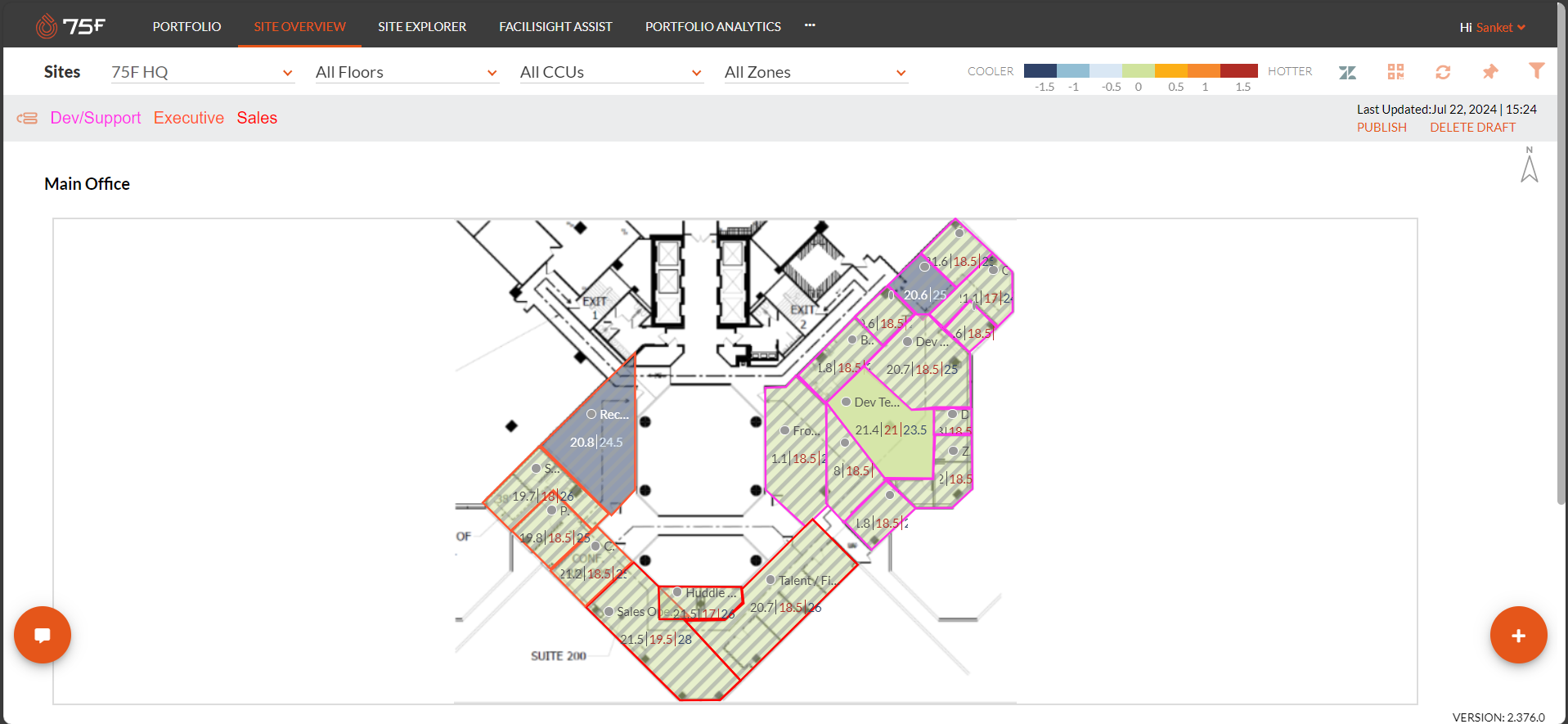

From the Site Overview page

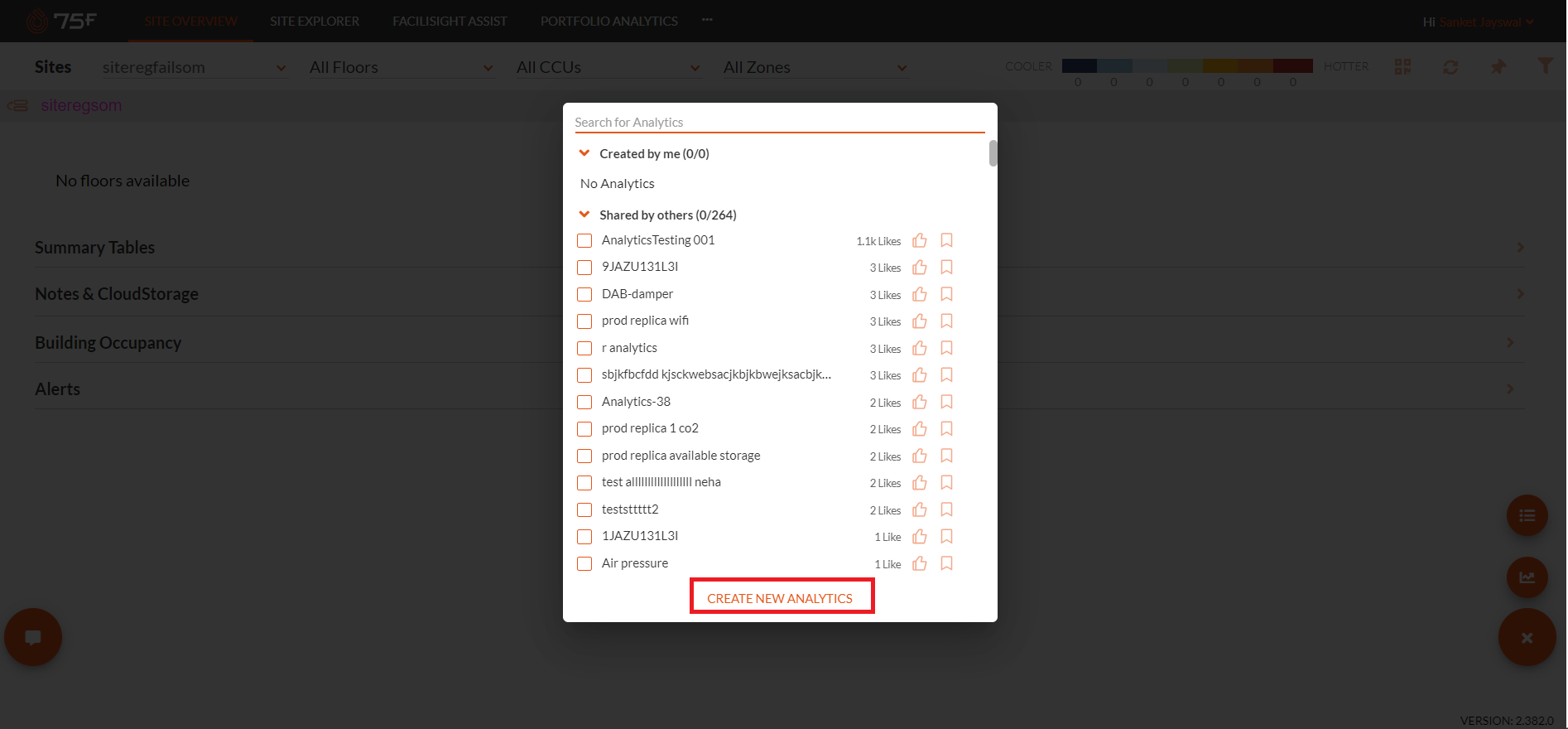

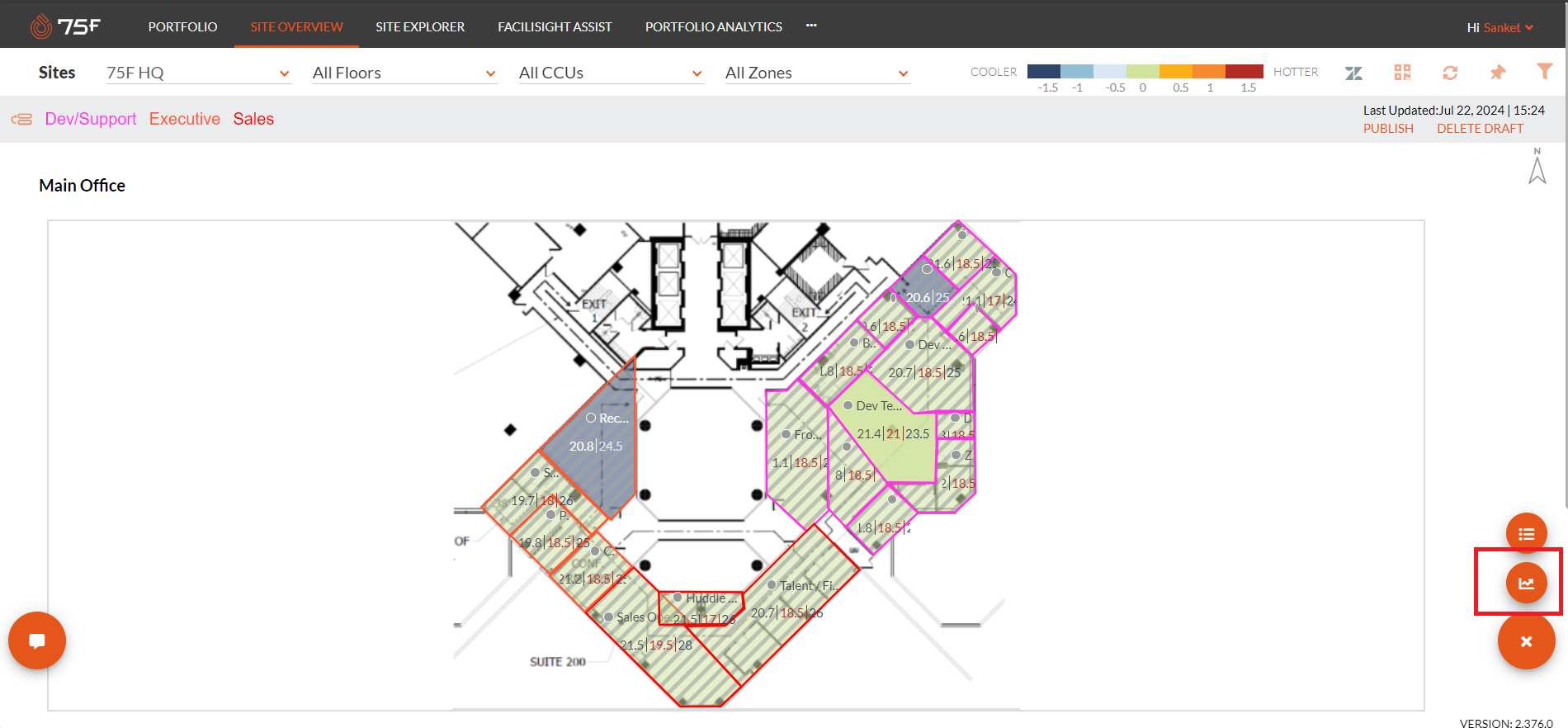

The Analytics tab can also be accessed from the Site Overview Page by clicking the + icon.

In the Internal Portal,

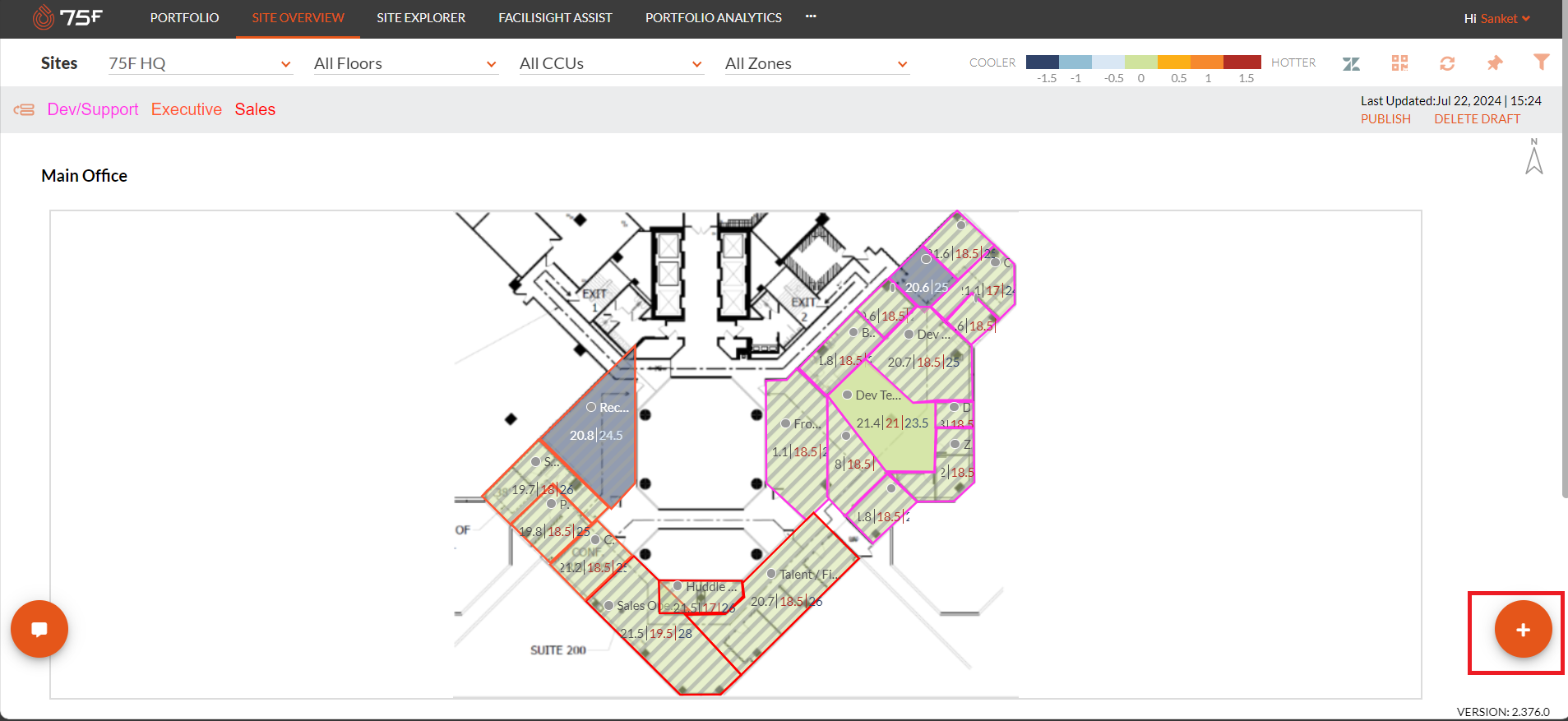

Click the + icon

Screenshot 2024-09-19 173130.png

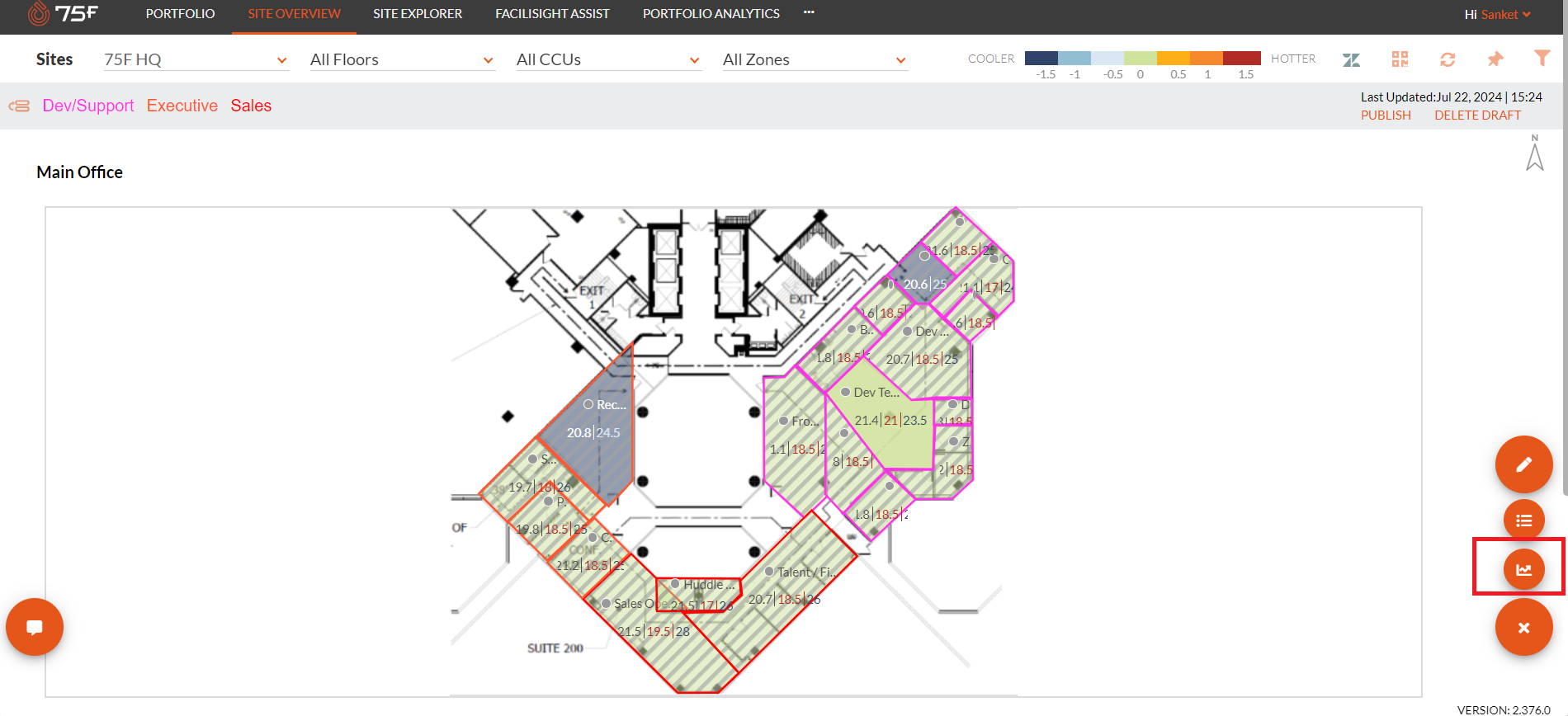

Click the Analytics icon

Screenshot 2024-09-19 173242.png

The Analytics option is displayed.

Screenshot 2024-09-19 151633.png

| Creating a New Analytics

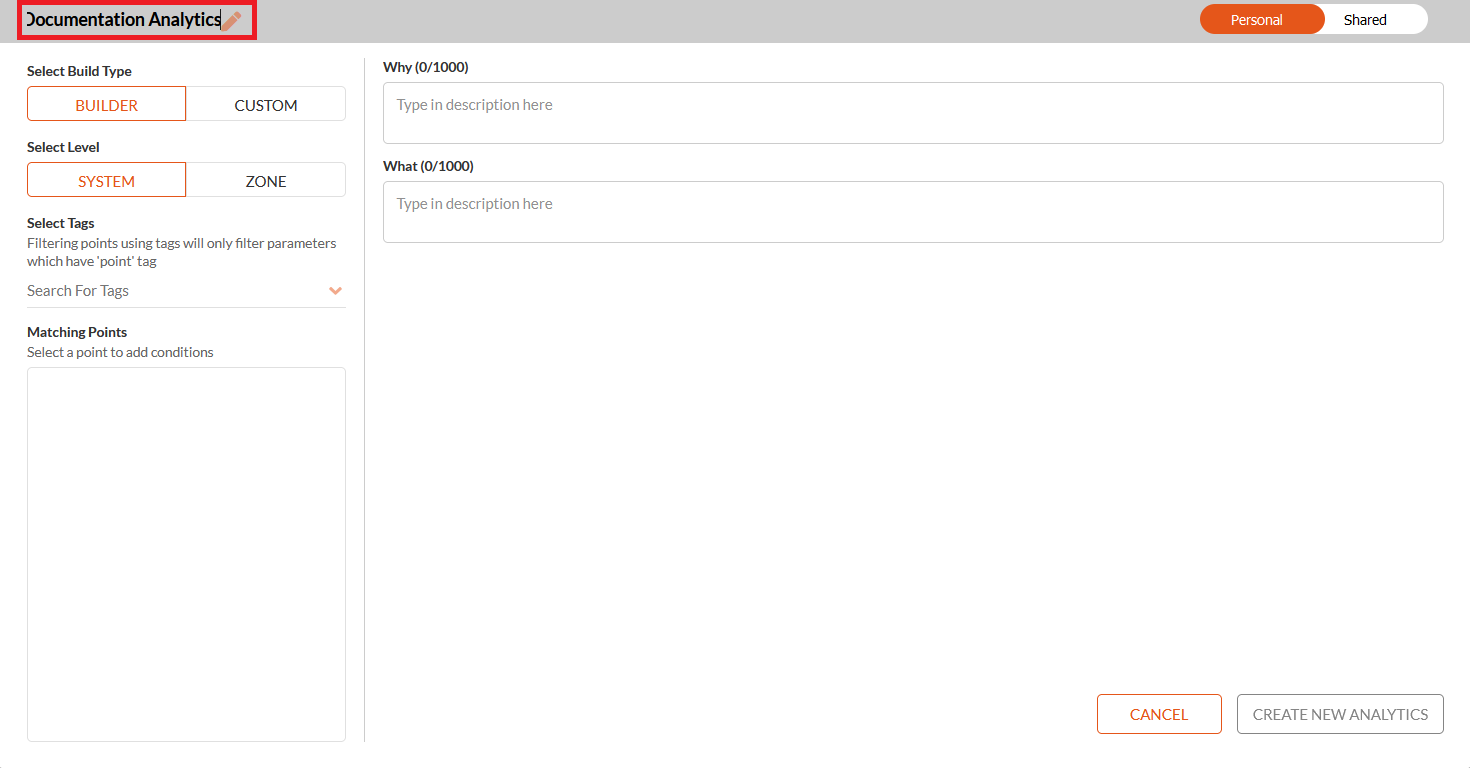

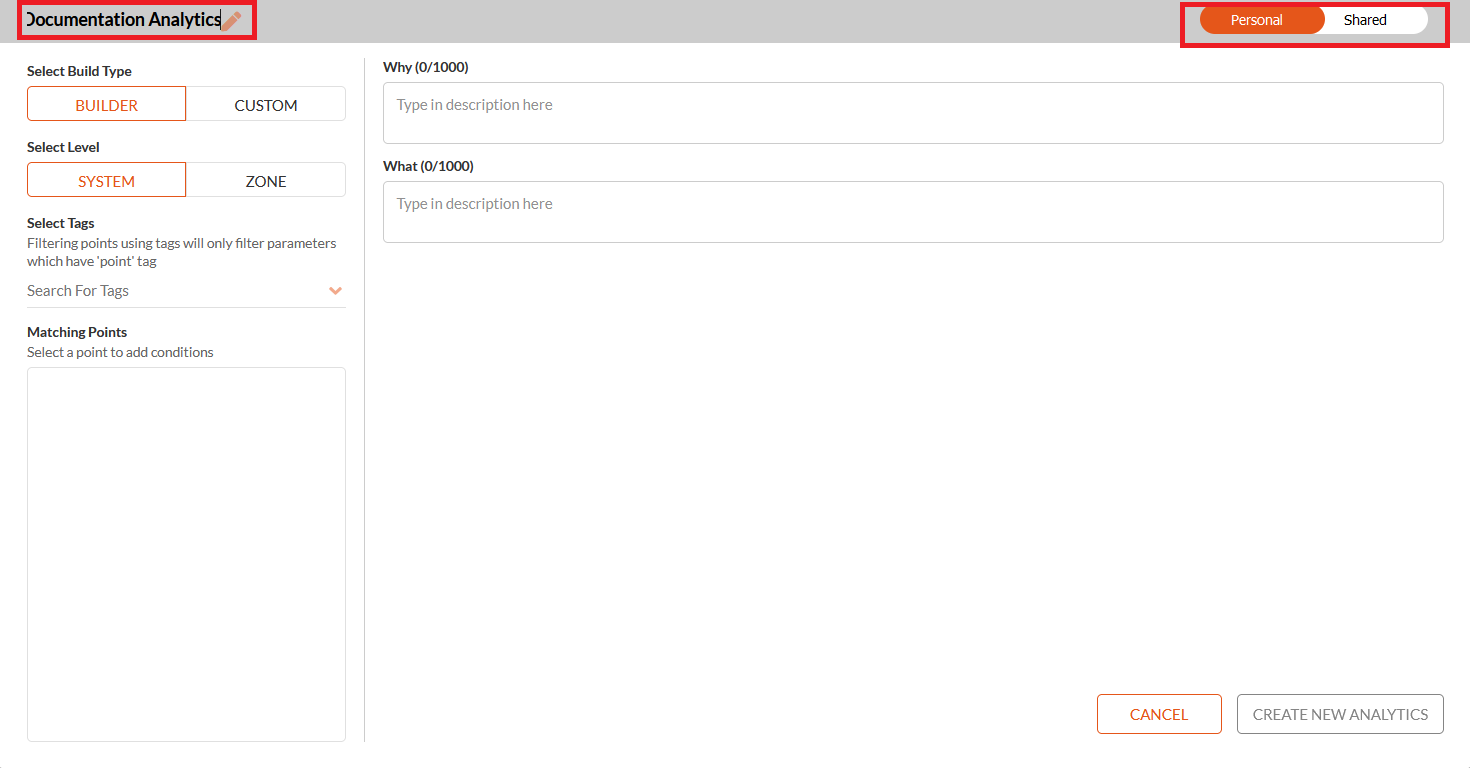

Select the edit icon to edit the name of the Analytics

Screenshot 2024-09-19 152151.png

Select the personal or shared tab to select the visibility of the analytics

Screenshot 2024-09-19 152151.png

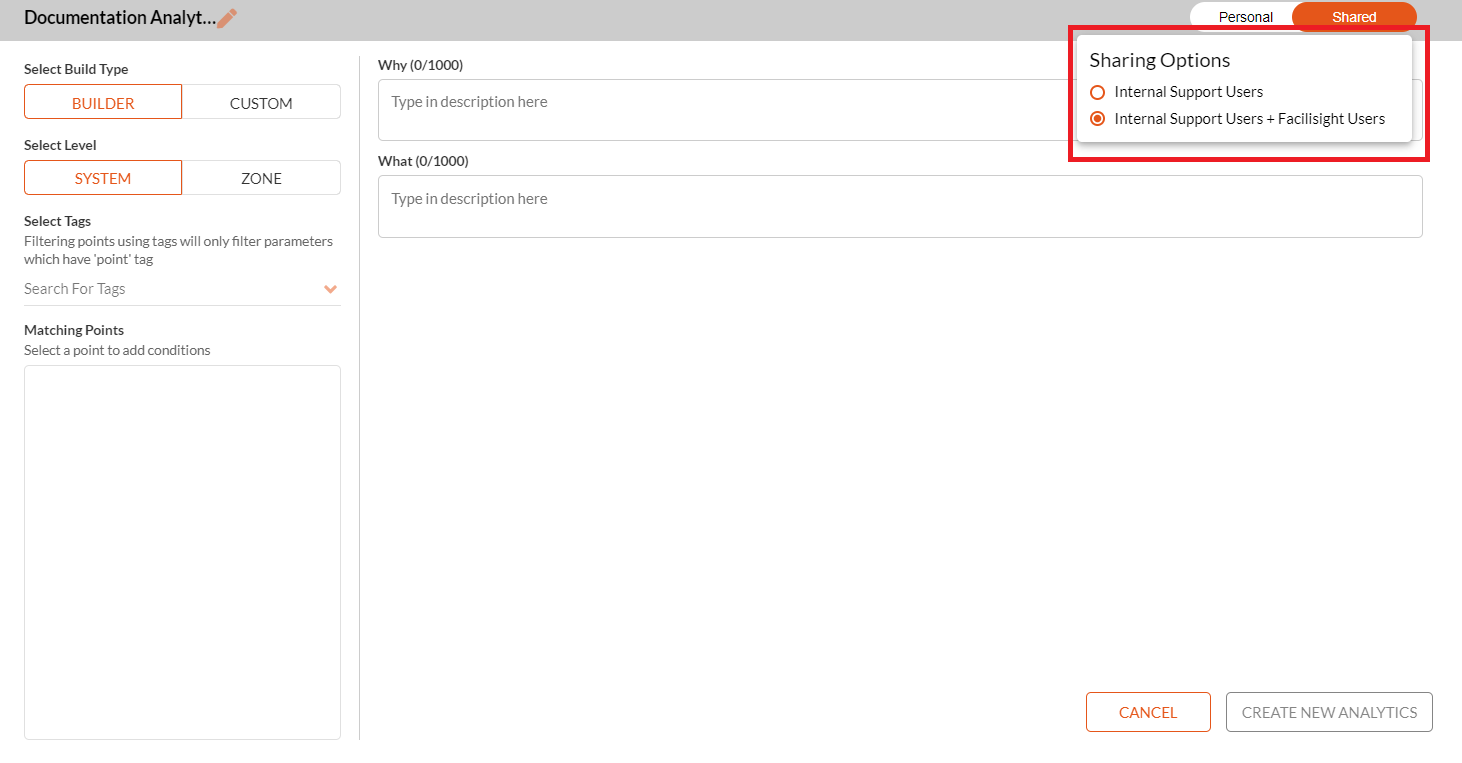

Click the shared option to share analytics to Internal Portal only or both Internal+Airoverse for Facilities

Screenshot 2024-09-19 175035121.png

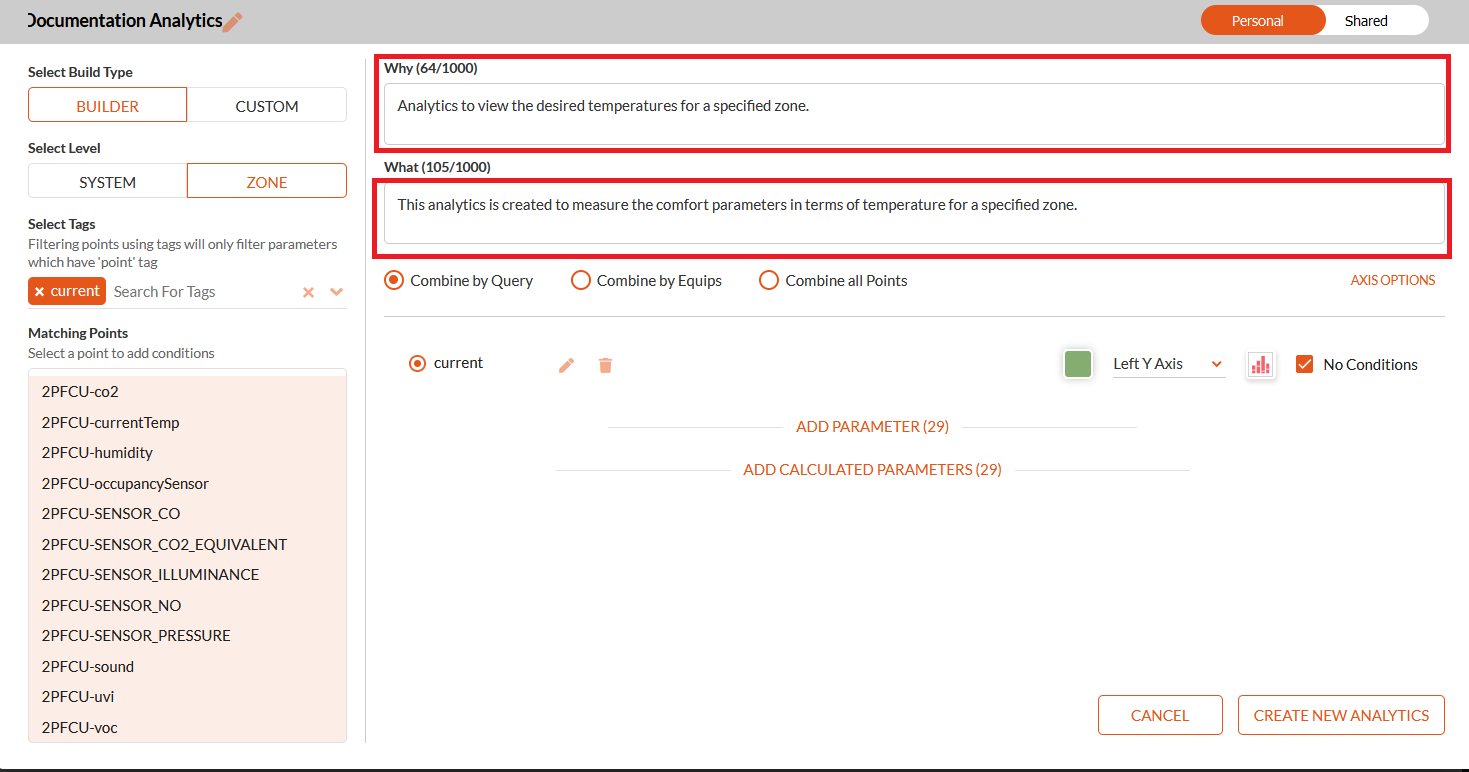

Enter the why and what description for the analytics

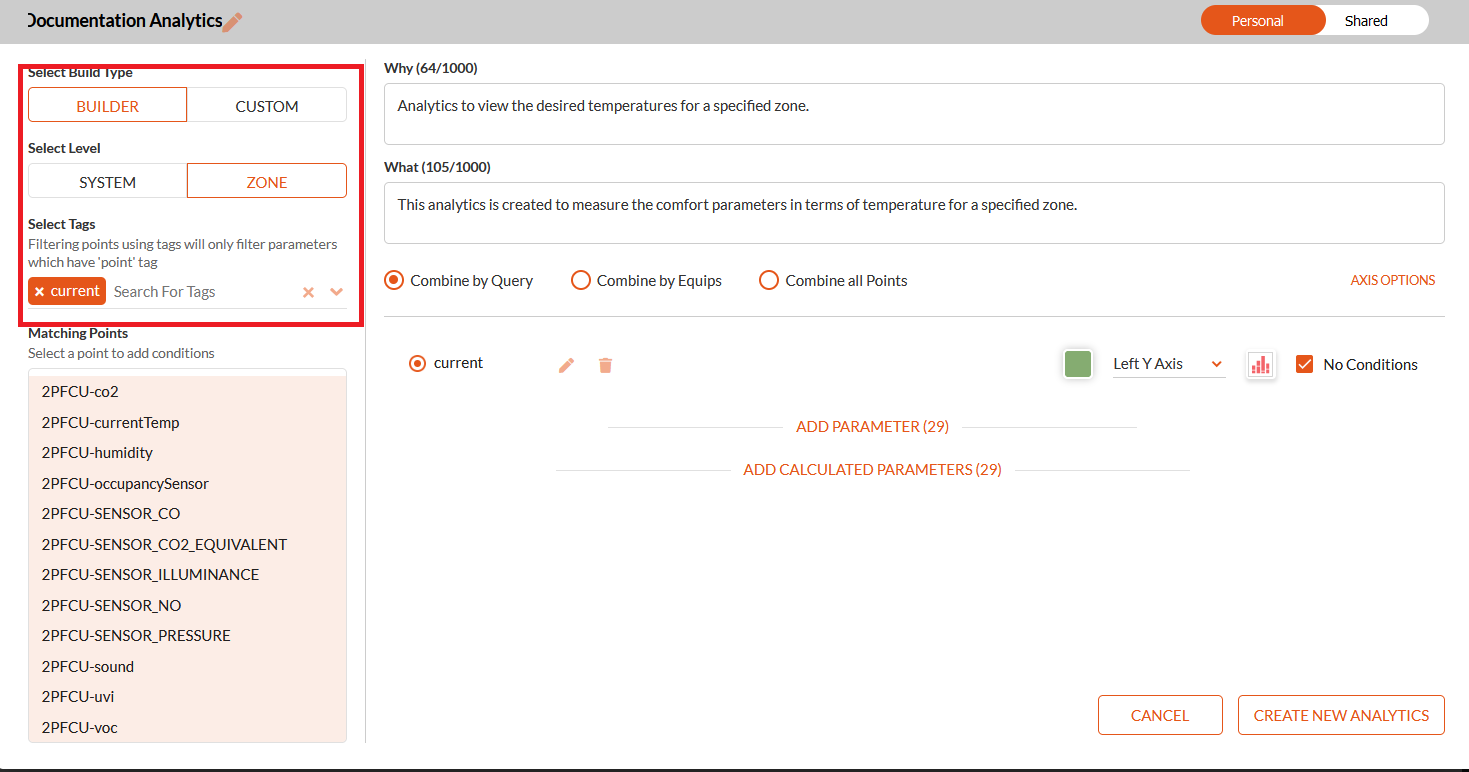

Select the build type as builder or custom

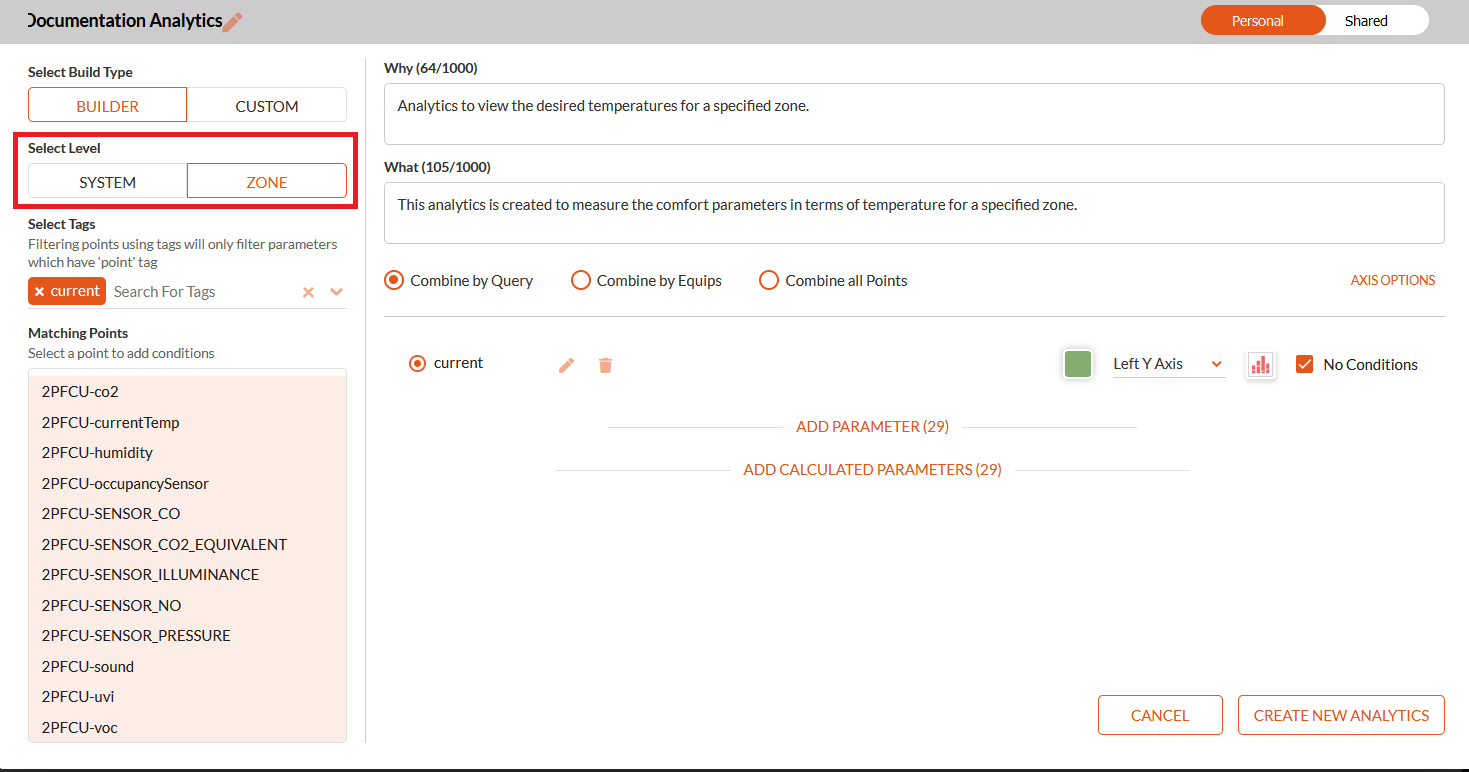

Select level as system or zone

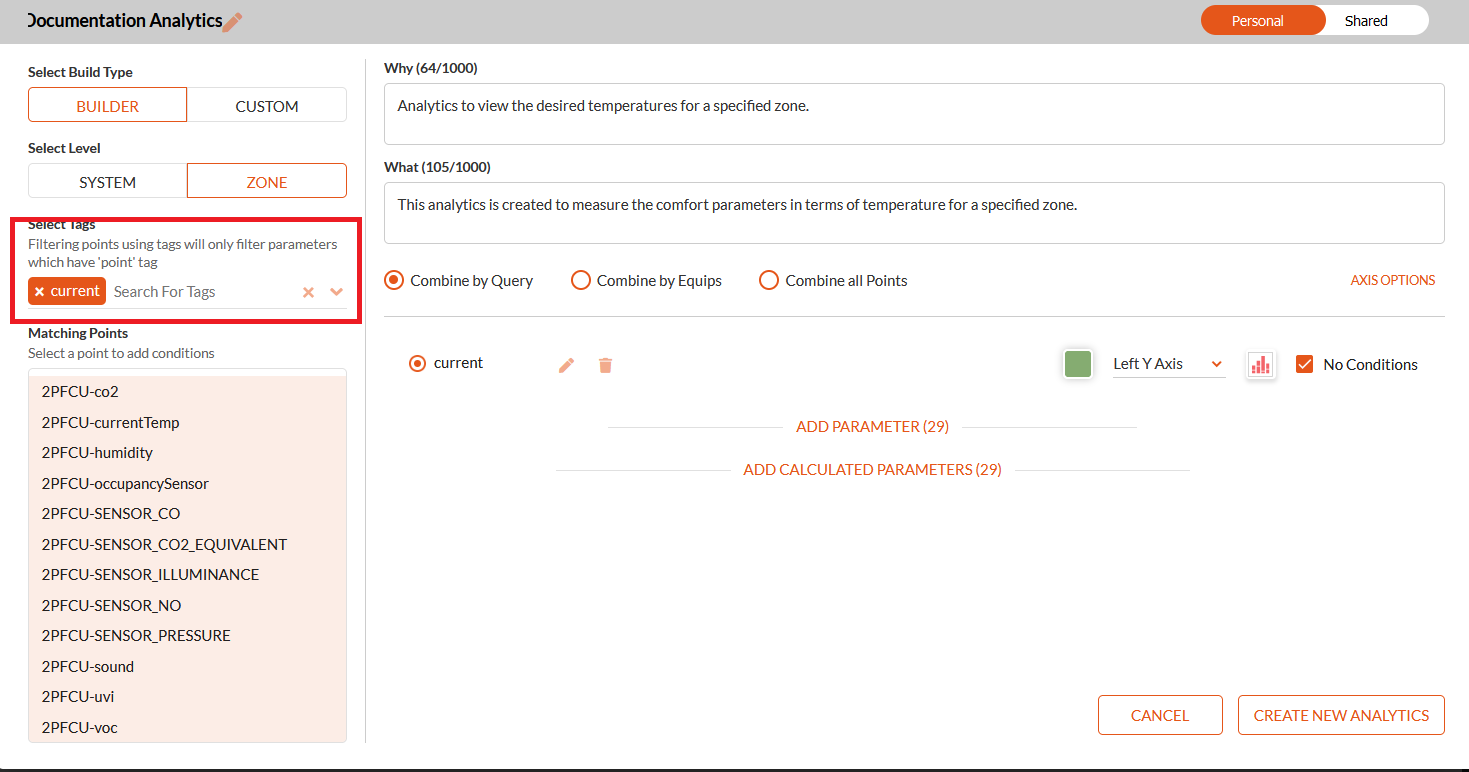

Select the required tags associated with the level

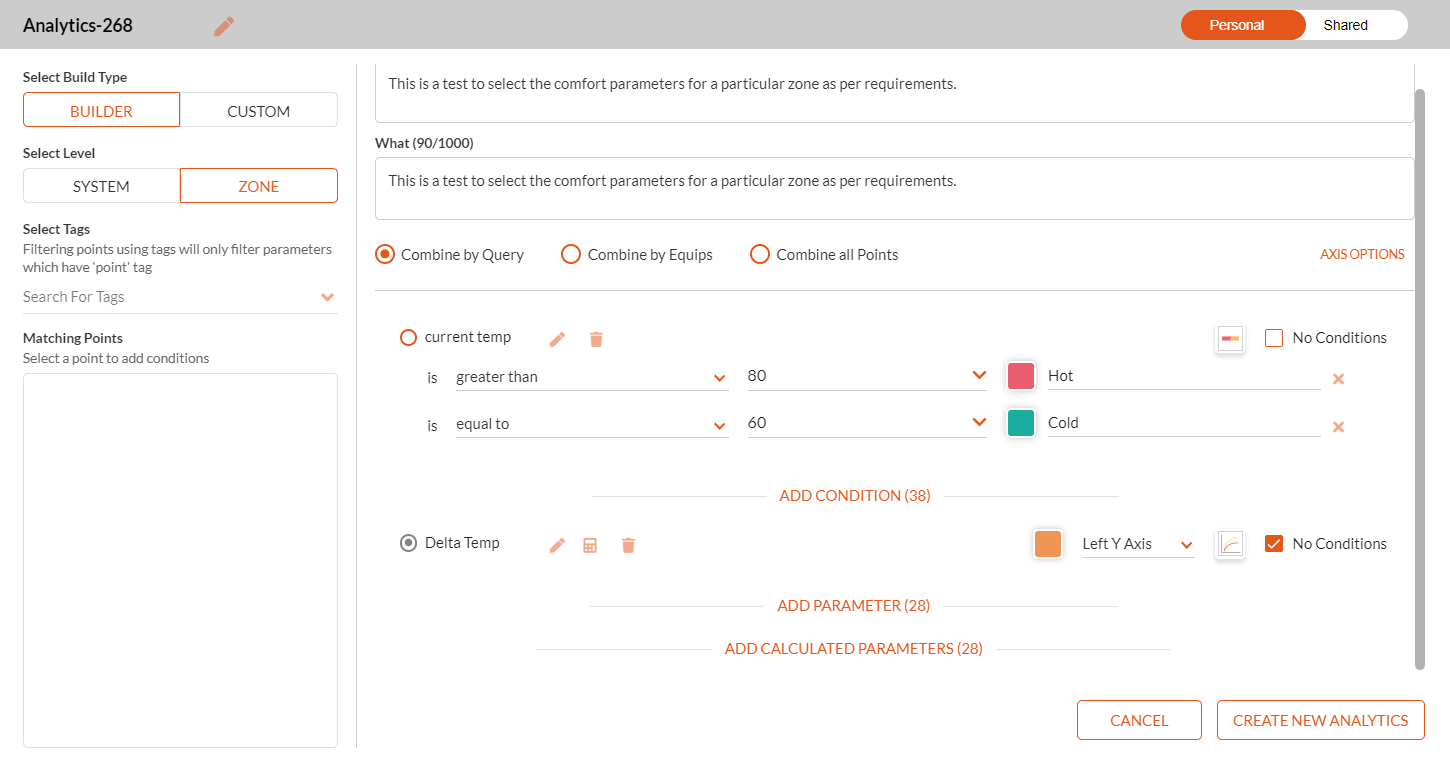

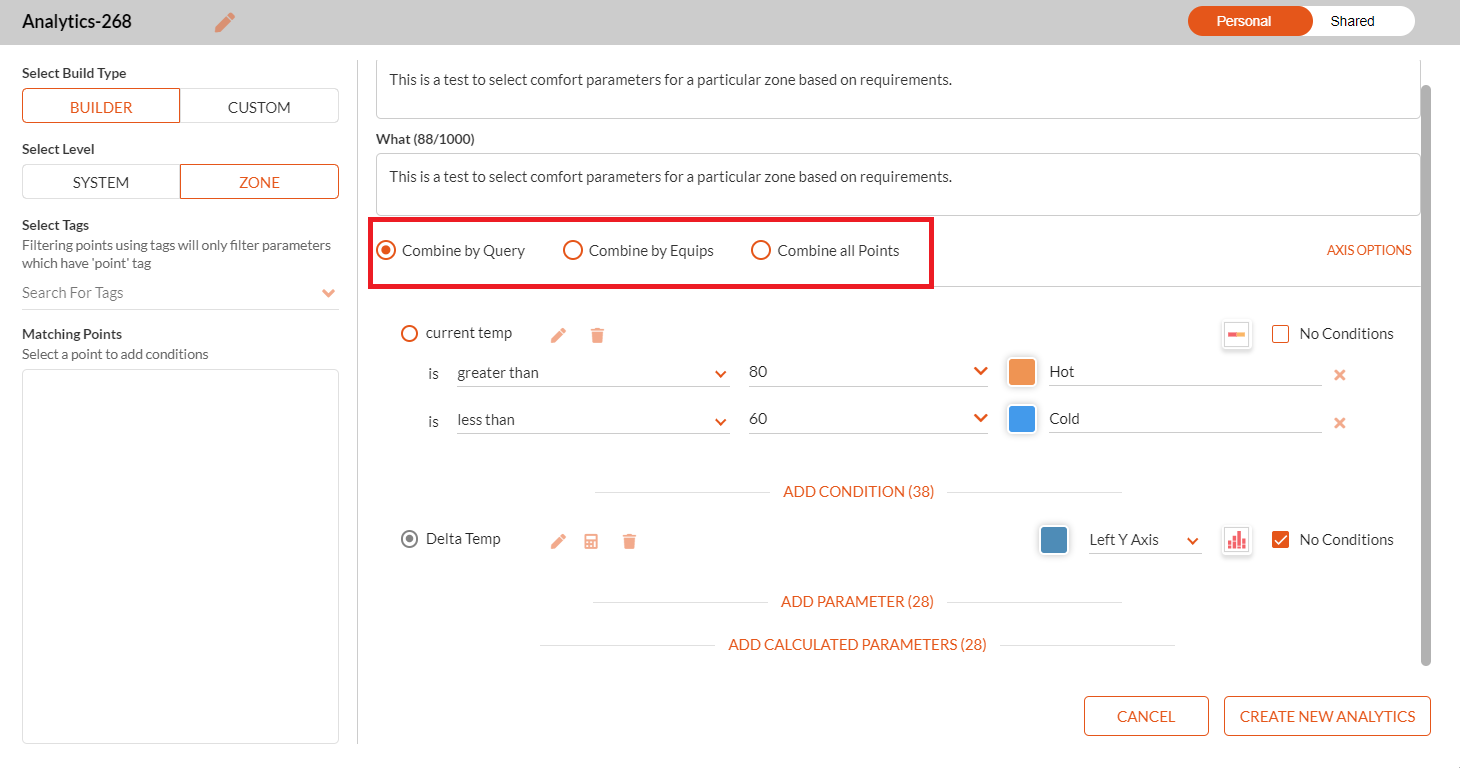

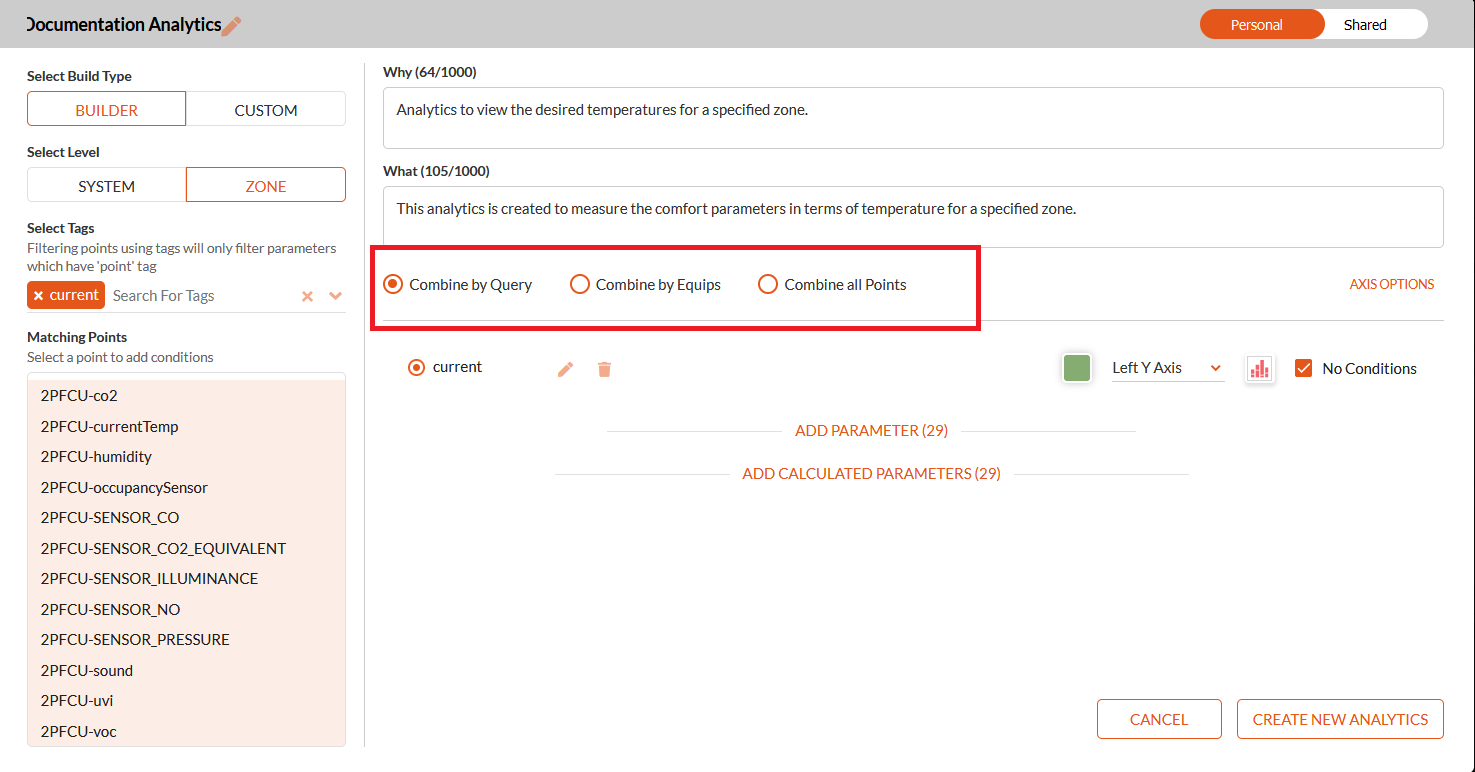

Users will have the option to combine analytics by query, combine by equips or combine all the points associated with it.

Screenshot 2024-09-19 153518-1112.png

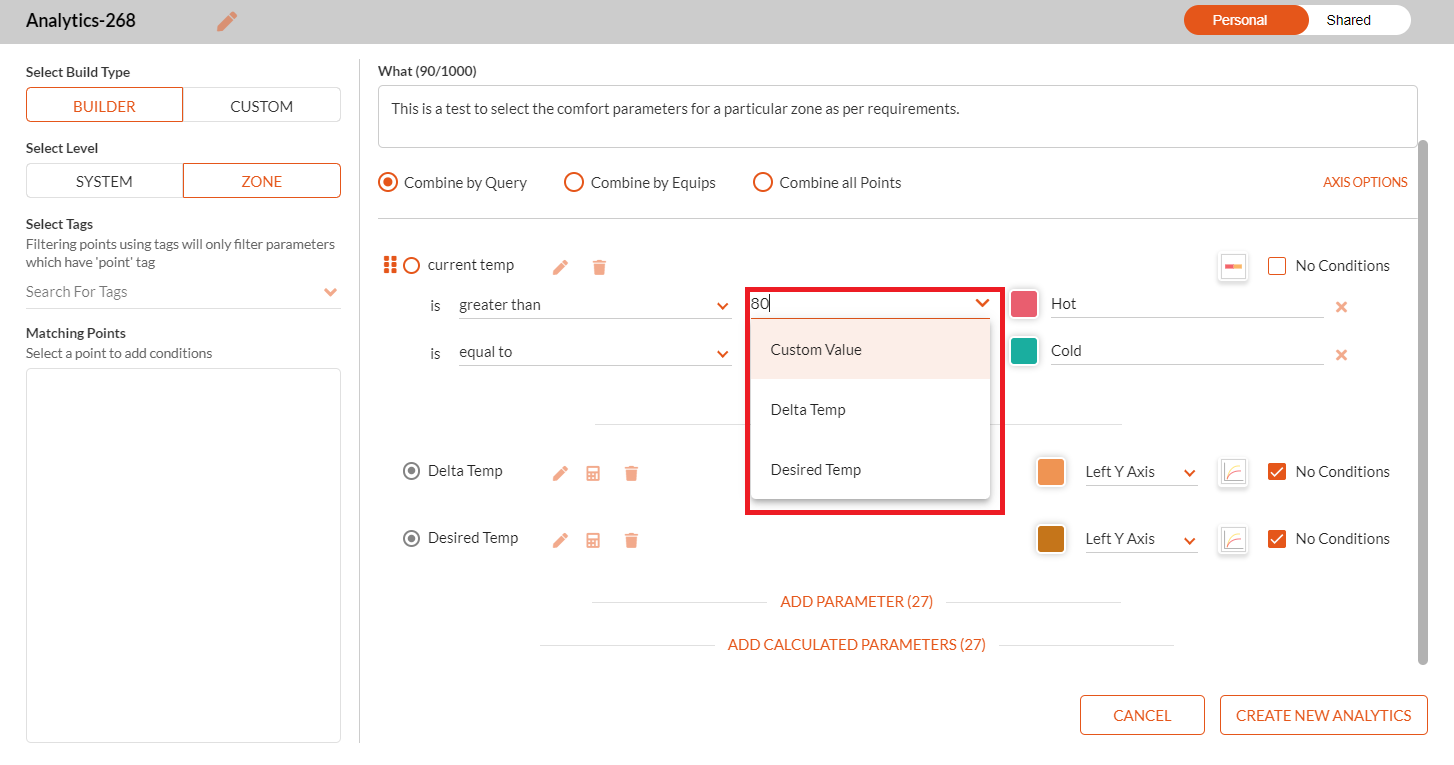

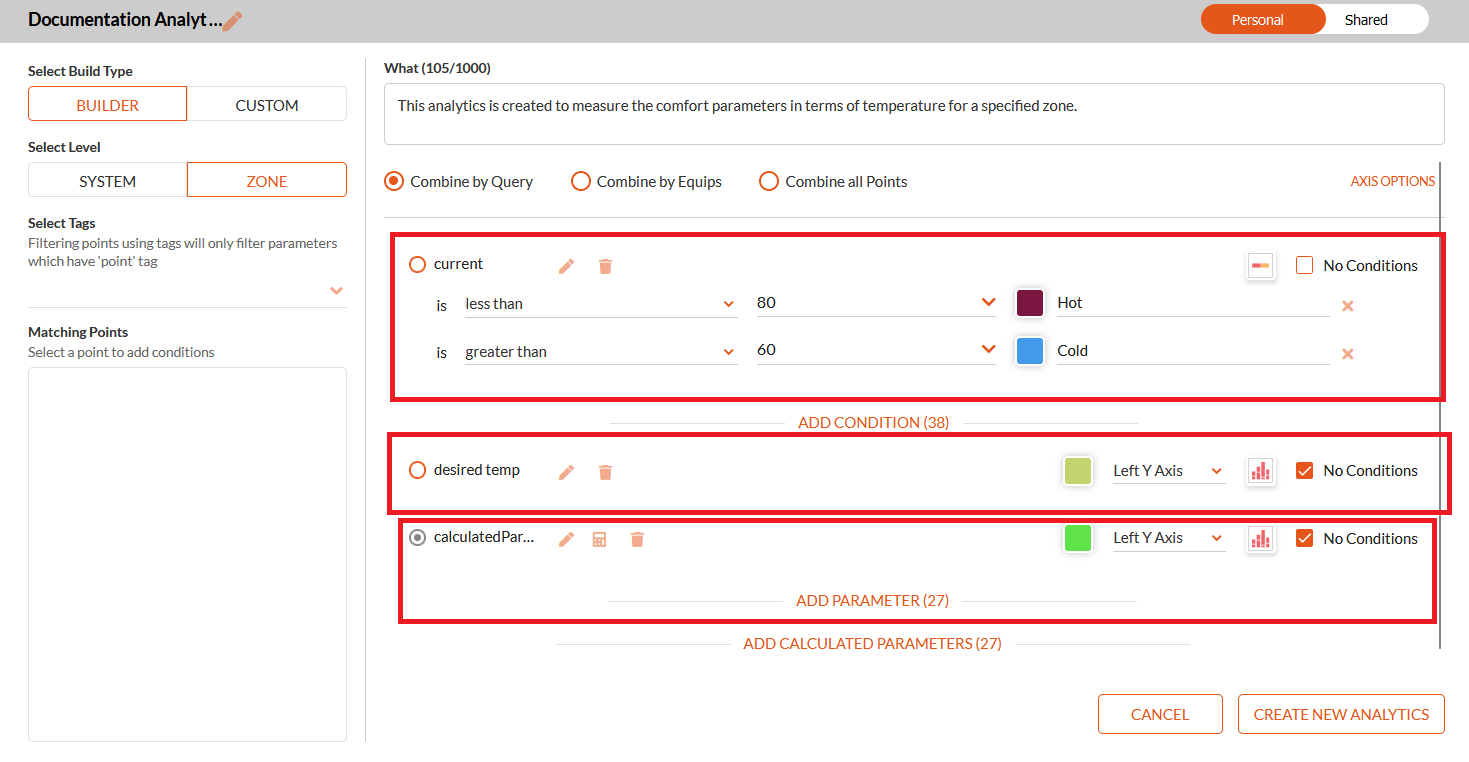

Select the parameters and the calculated parameters for the analytics

Note: Users will be able to add a maximum of 30 parameters along with 40 conditions for each parameter

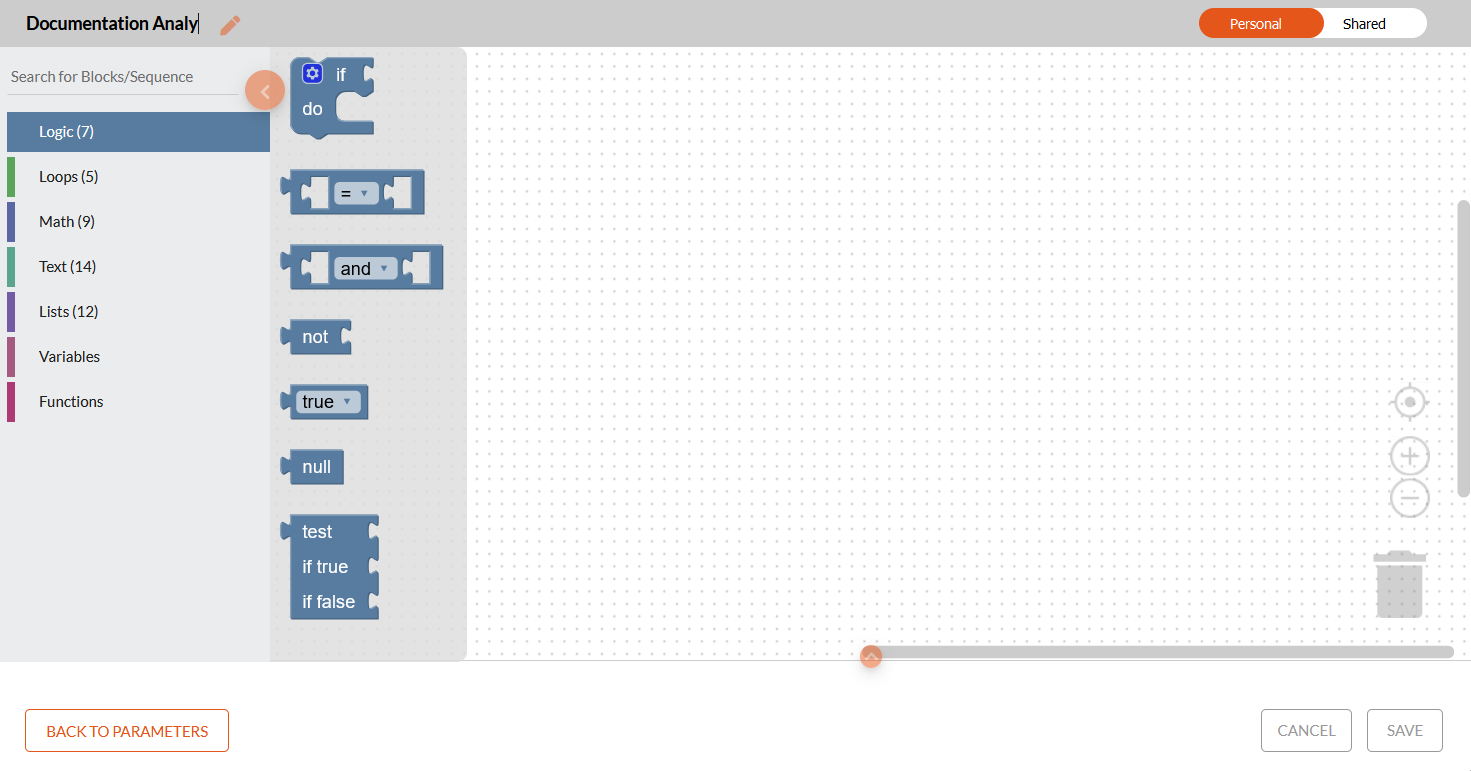

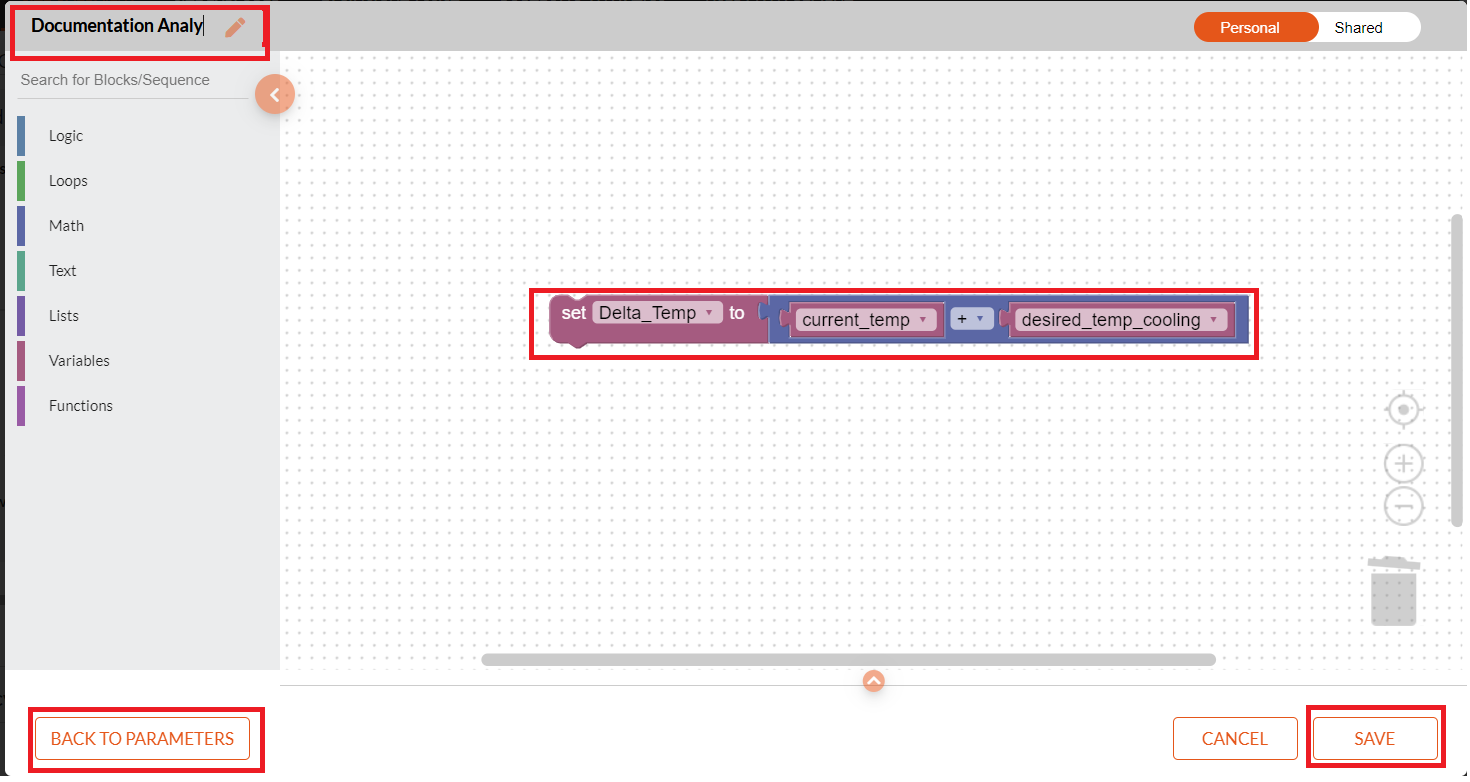

Select the calculator icon to access the Blockly page

Screenshot 2024-09-19 154511.png

Use the Blockly blocks to compute and display the calculated parameters, as below:

Click Save to save and confirm the calculation blocks built.
Click Back to Parameters to go back to the parameters addition screen.

Screenshot 2024-09-19 154943.png

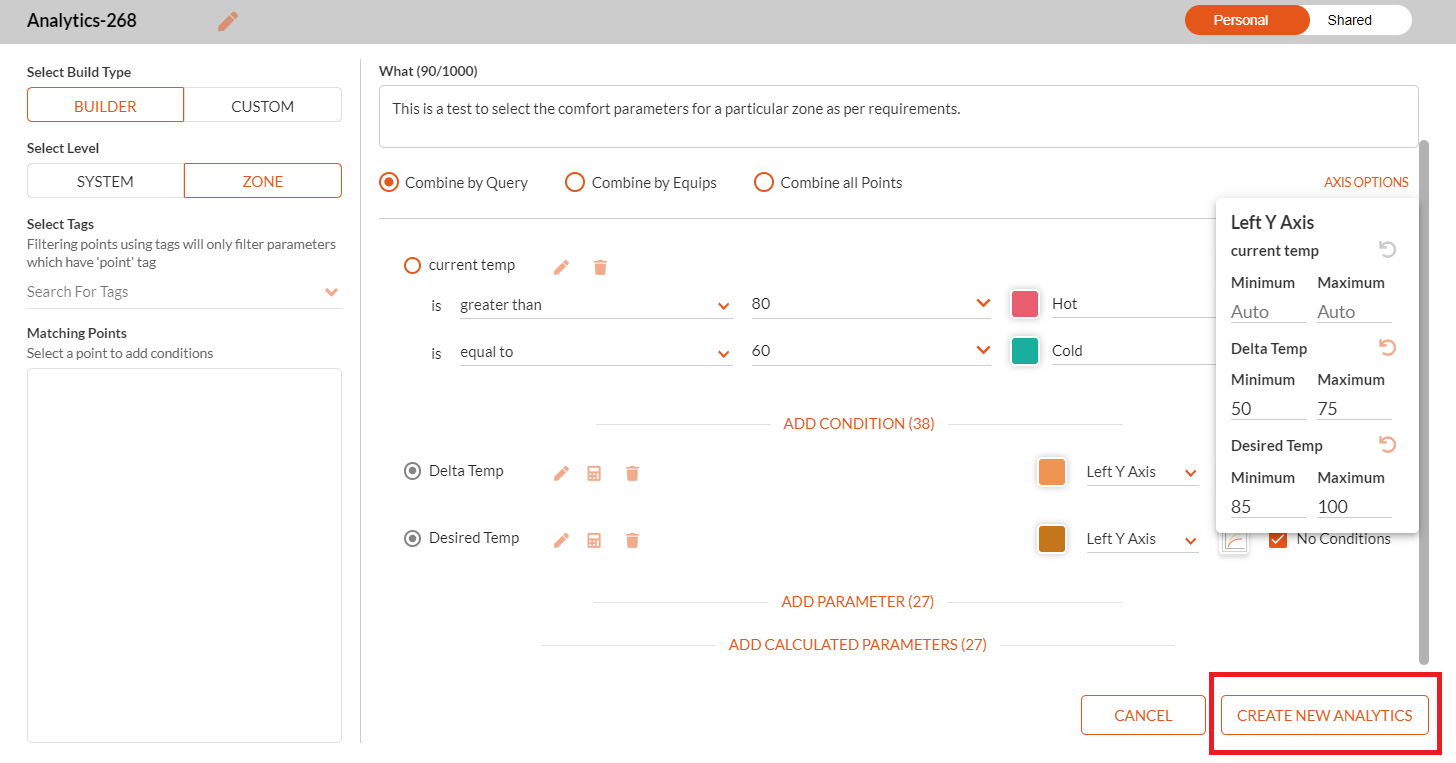

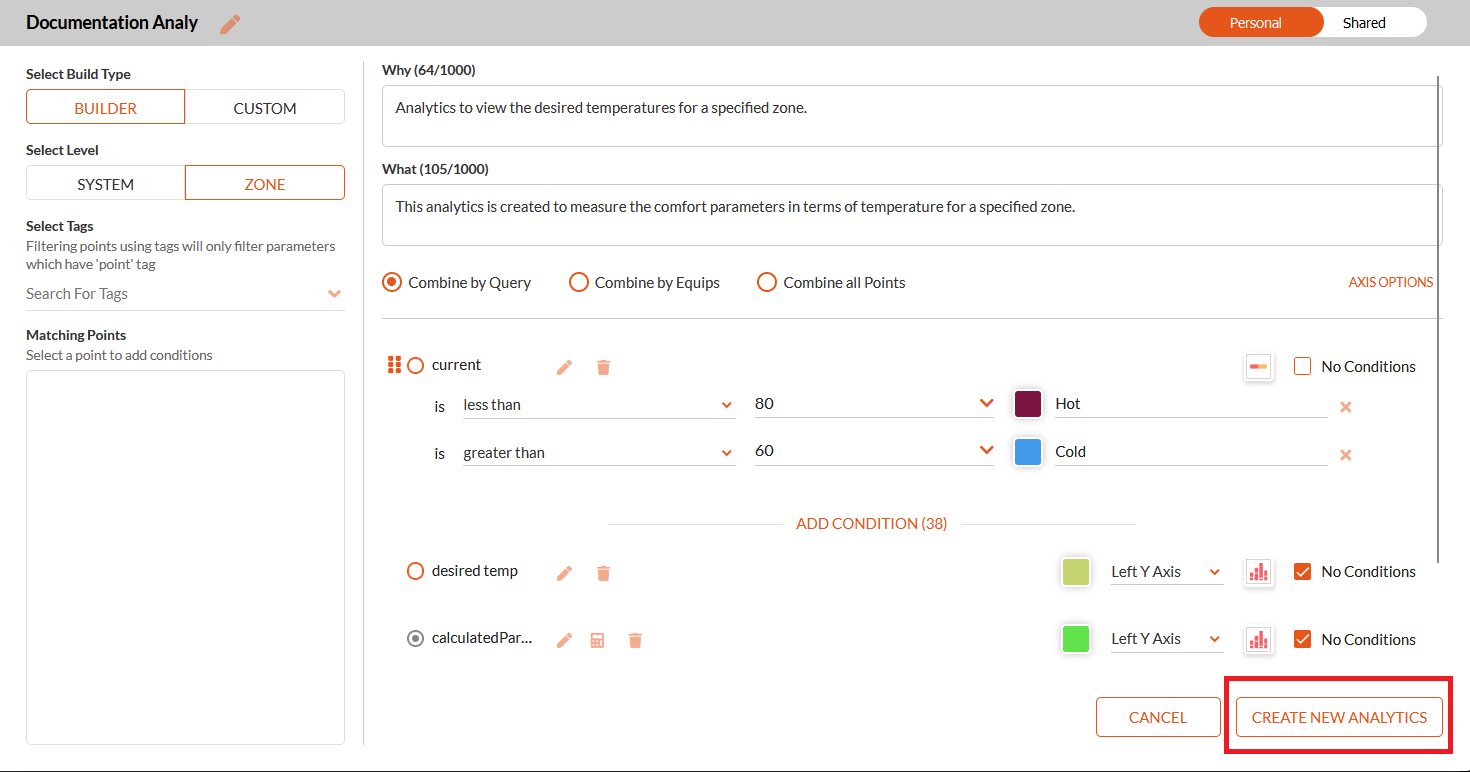

Click Create New Analytics to confirm the table created.

| Editing an Analytics

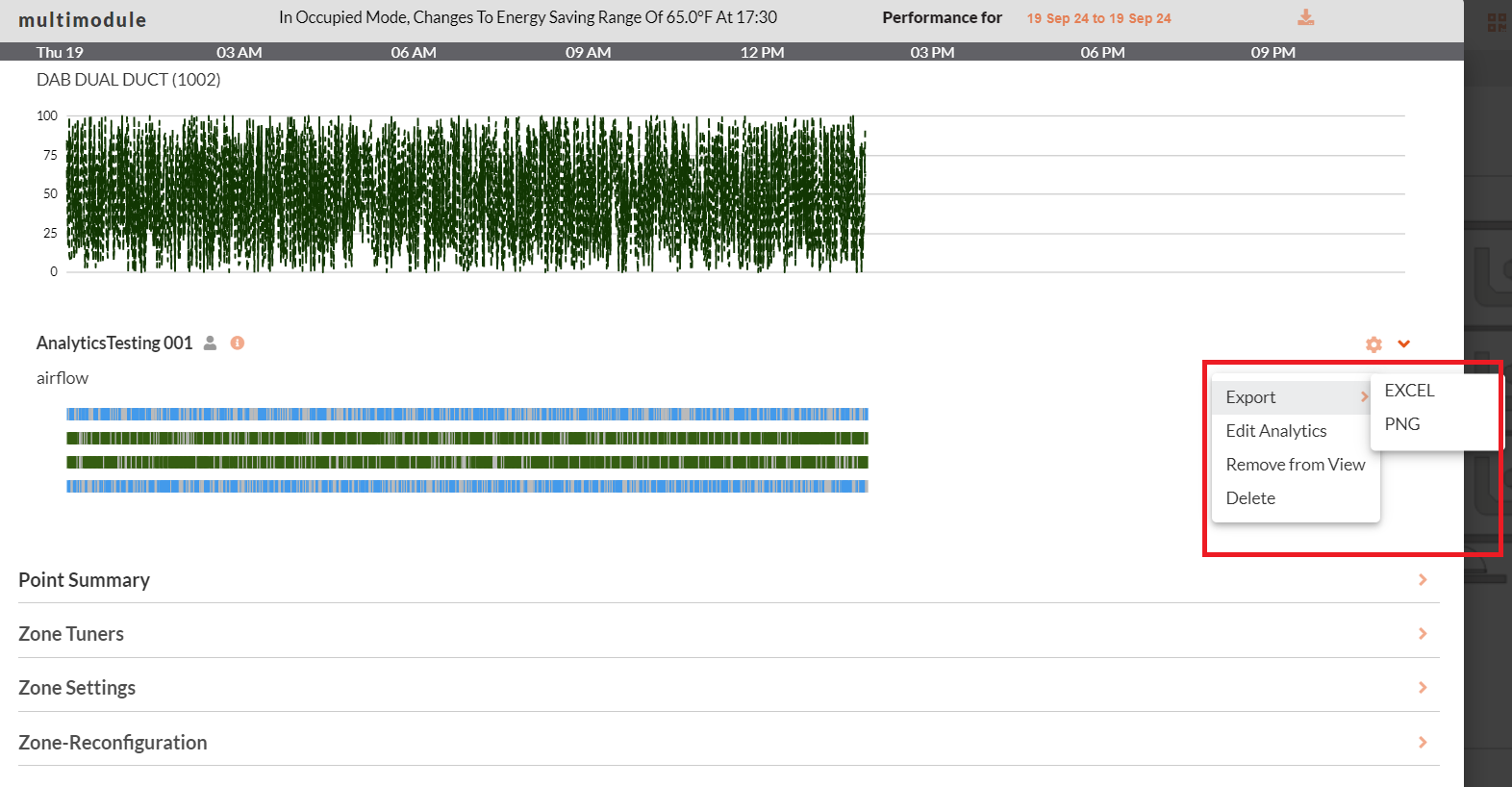

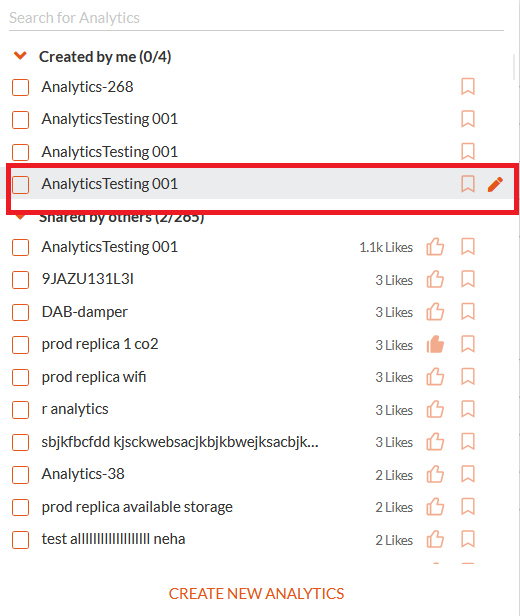

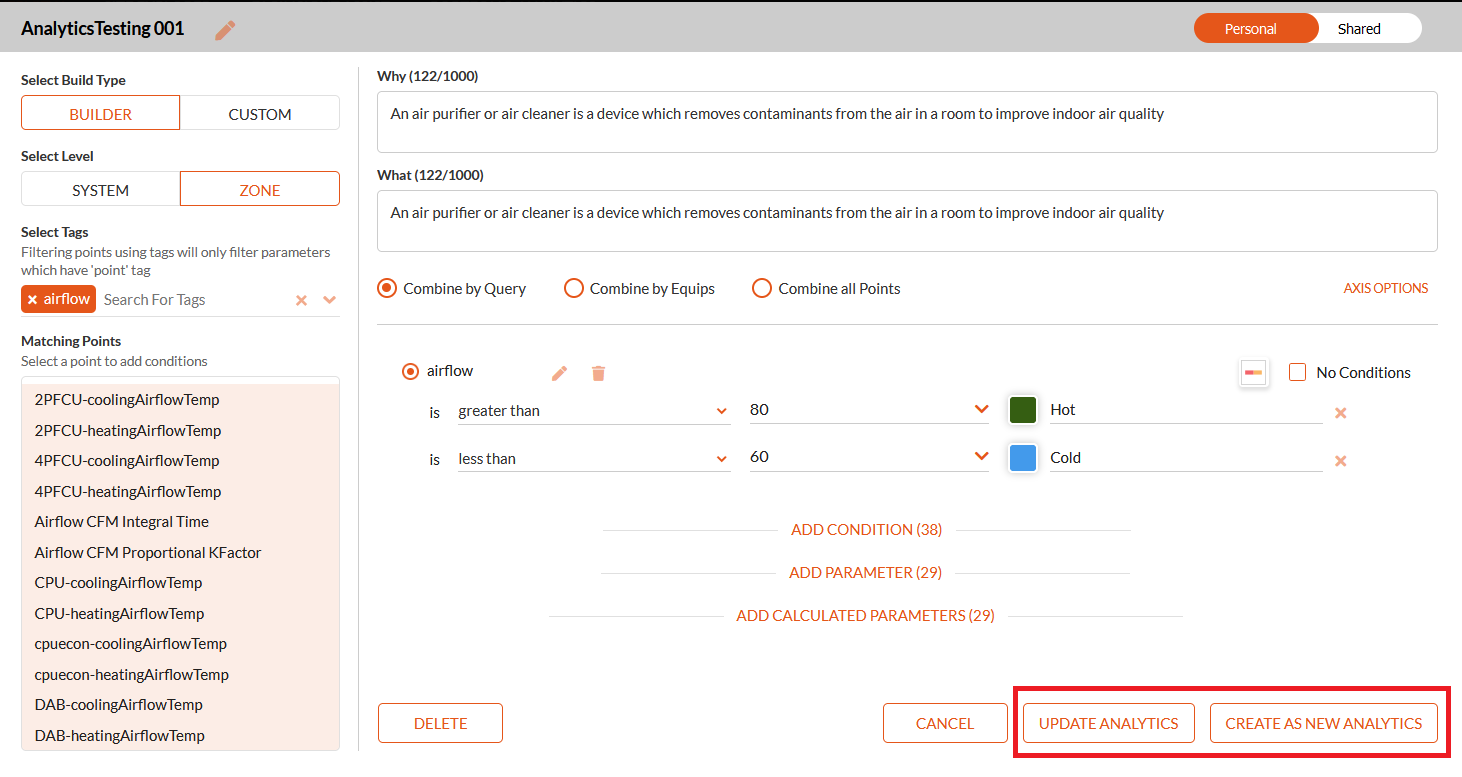

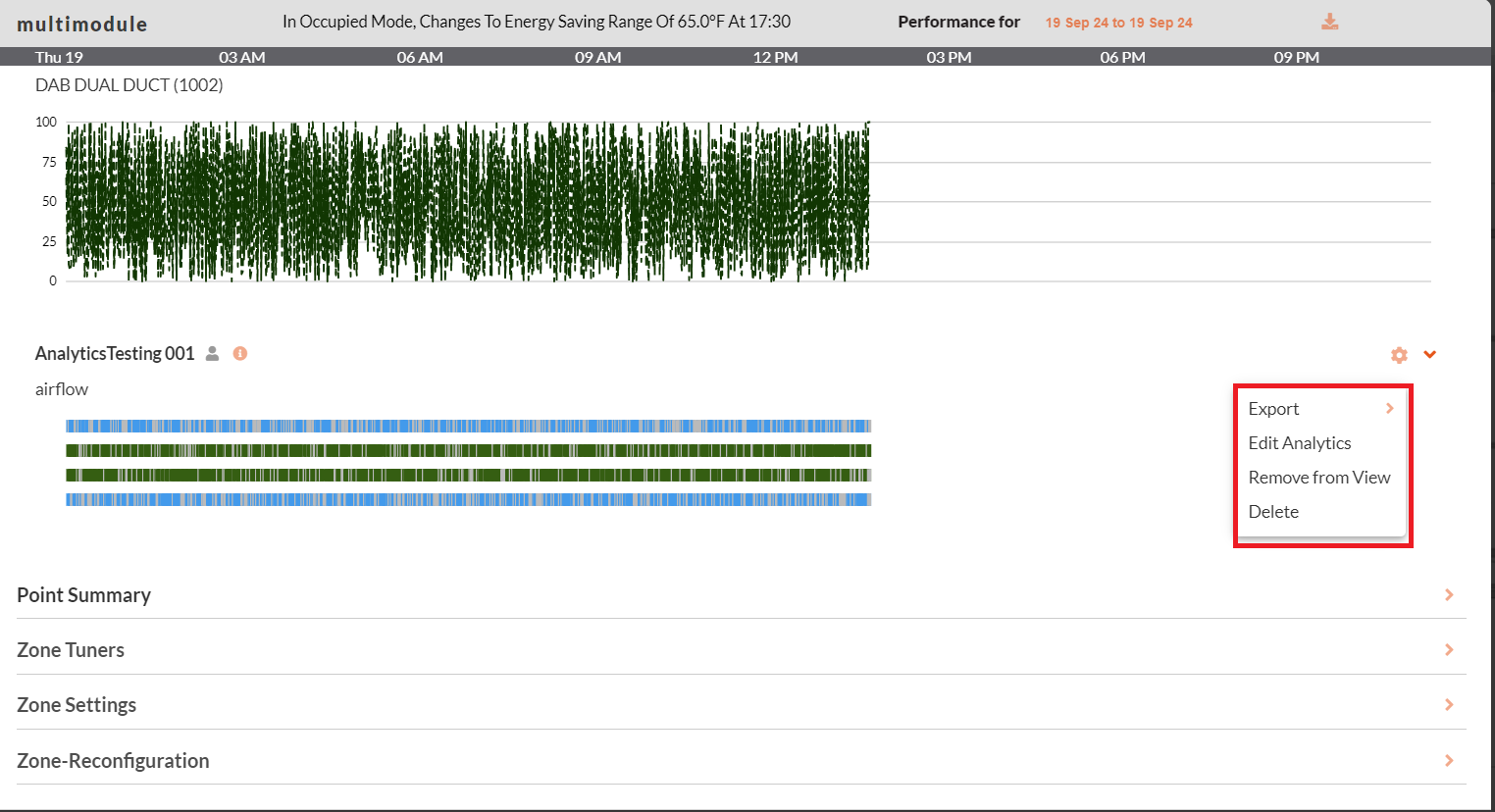

Select the edit icon to further edit an analytics once created

x edit.png

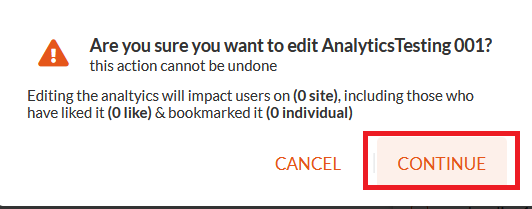

Select Continue to edit the analytics

Click Update Analytics once it is edited
Click Create as New Analytics to duplicate the table as a new analytics

Screenshot 2024-09-19 160029.png

Note: Only analytics created by me can be edited. Edit option isn't applicable for analytics shared by others.

| Advanced Features

The analytics comes with advanced features to aid the user in making informed decisions on datasets. They are described as follows:

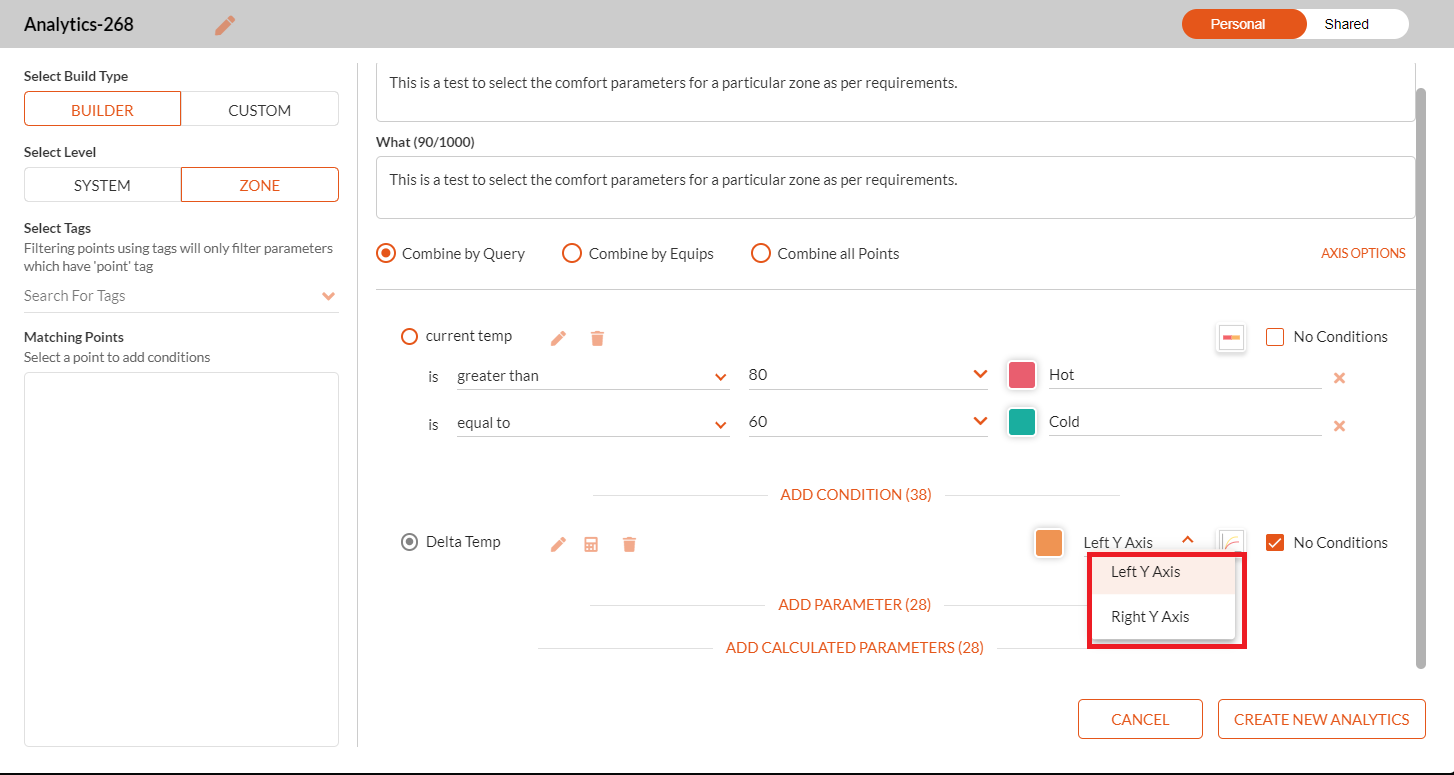

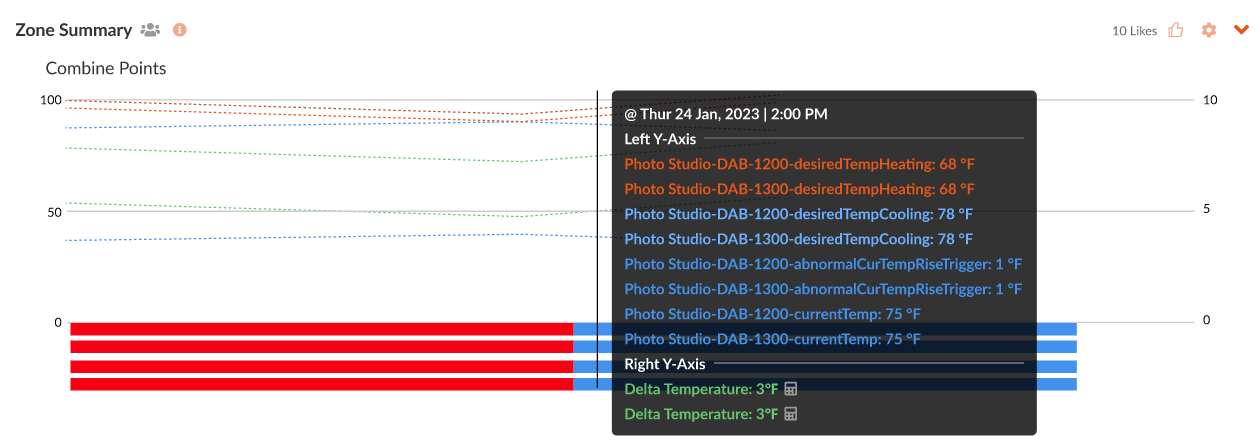

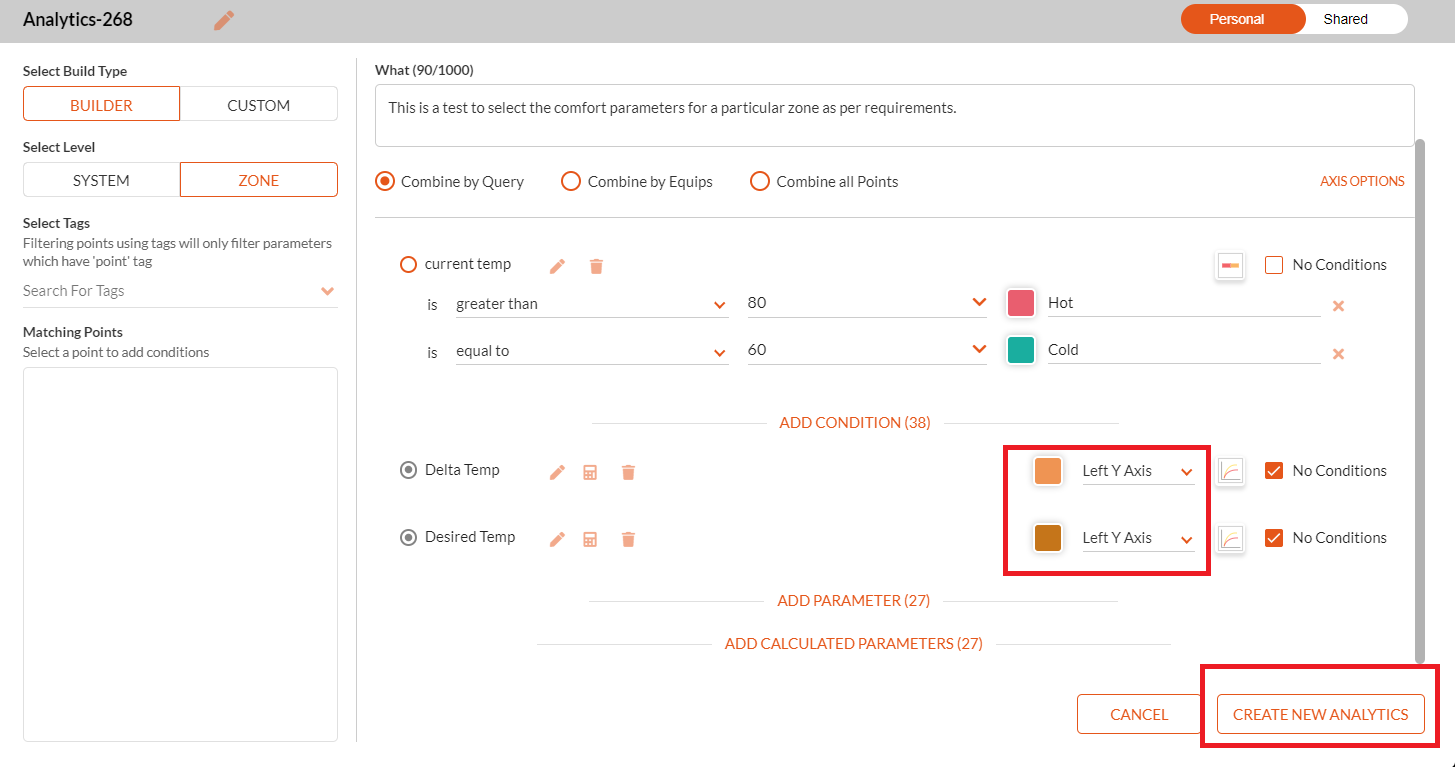

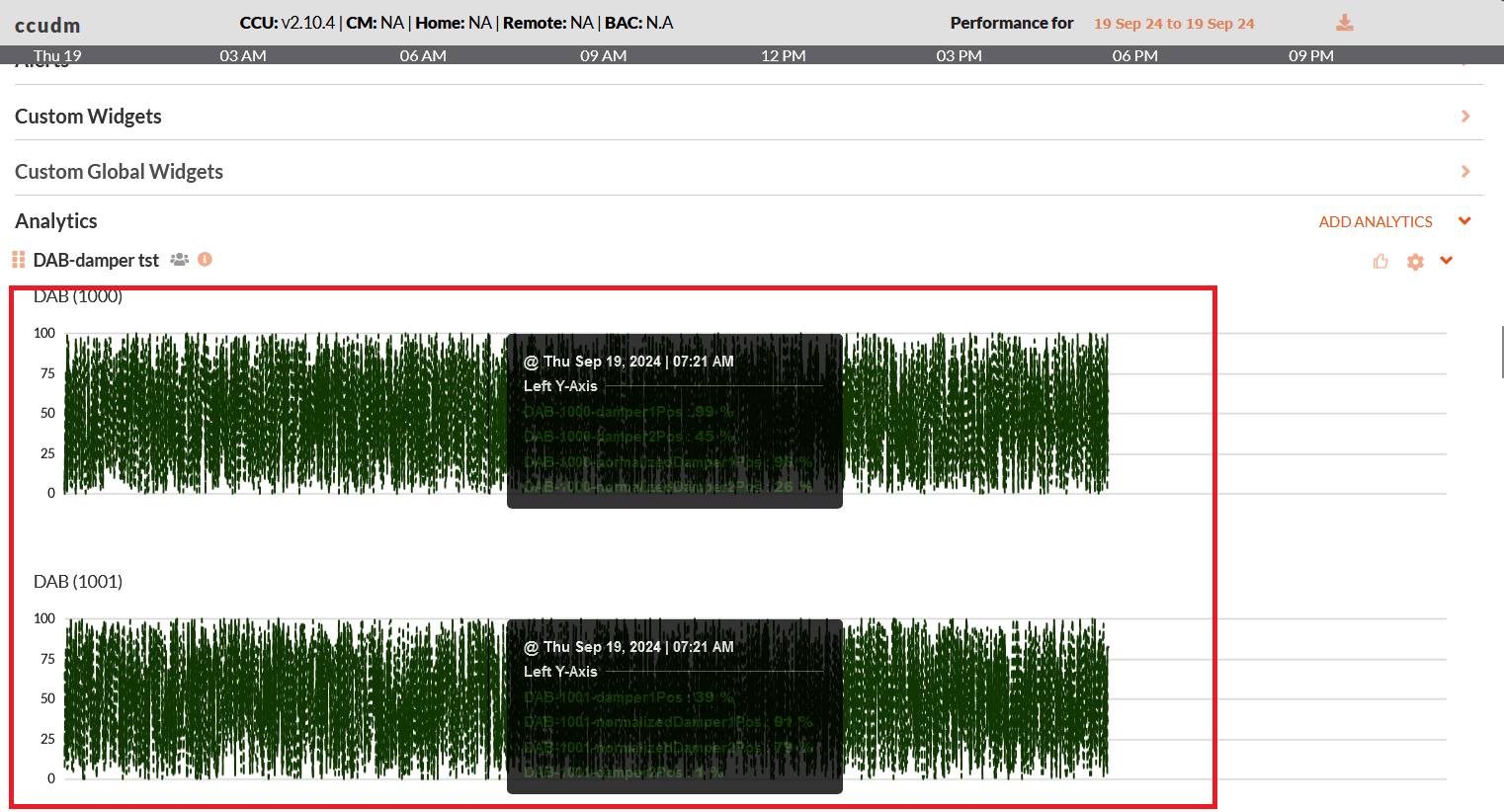

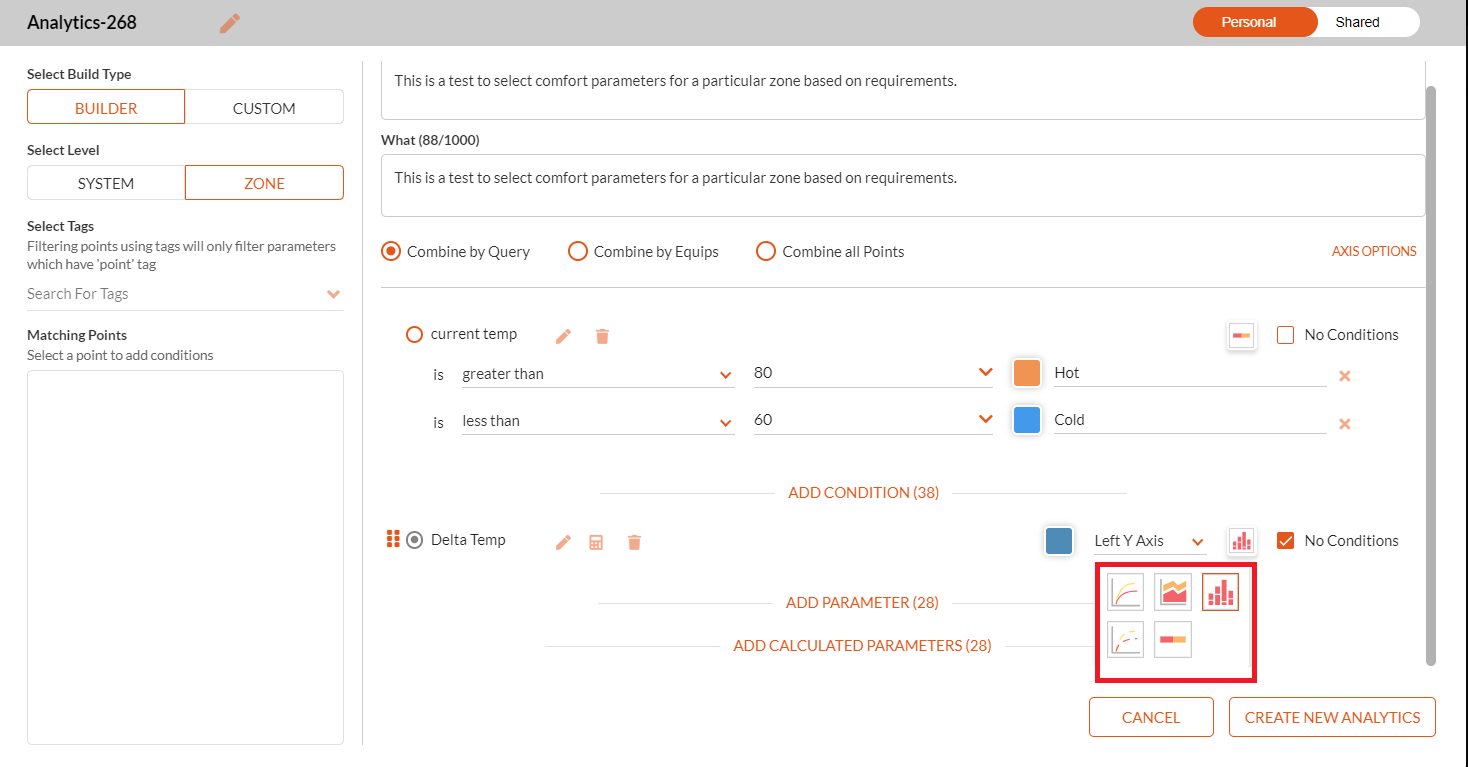

1. Dual Y-Axis Configuration

Users will have the flexibility to configure the Y-axis, selecting from both queried and calculated parameters. By default, the Y-axis will be set to “Left Y-axis,” but users can change this setting to “Right Y-axis” if they prefer.

However, it’s important to note that if any conditions are applied to the parameters, the dual Y-axis configuration will not be available. Once the configuration is applied, only the user who created it will have the authority to modify the settings, ensuring that the configuration remains consistent.

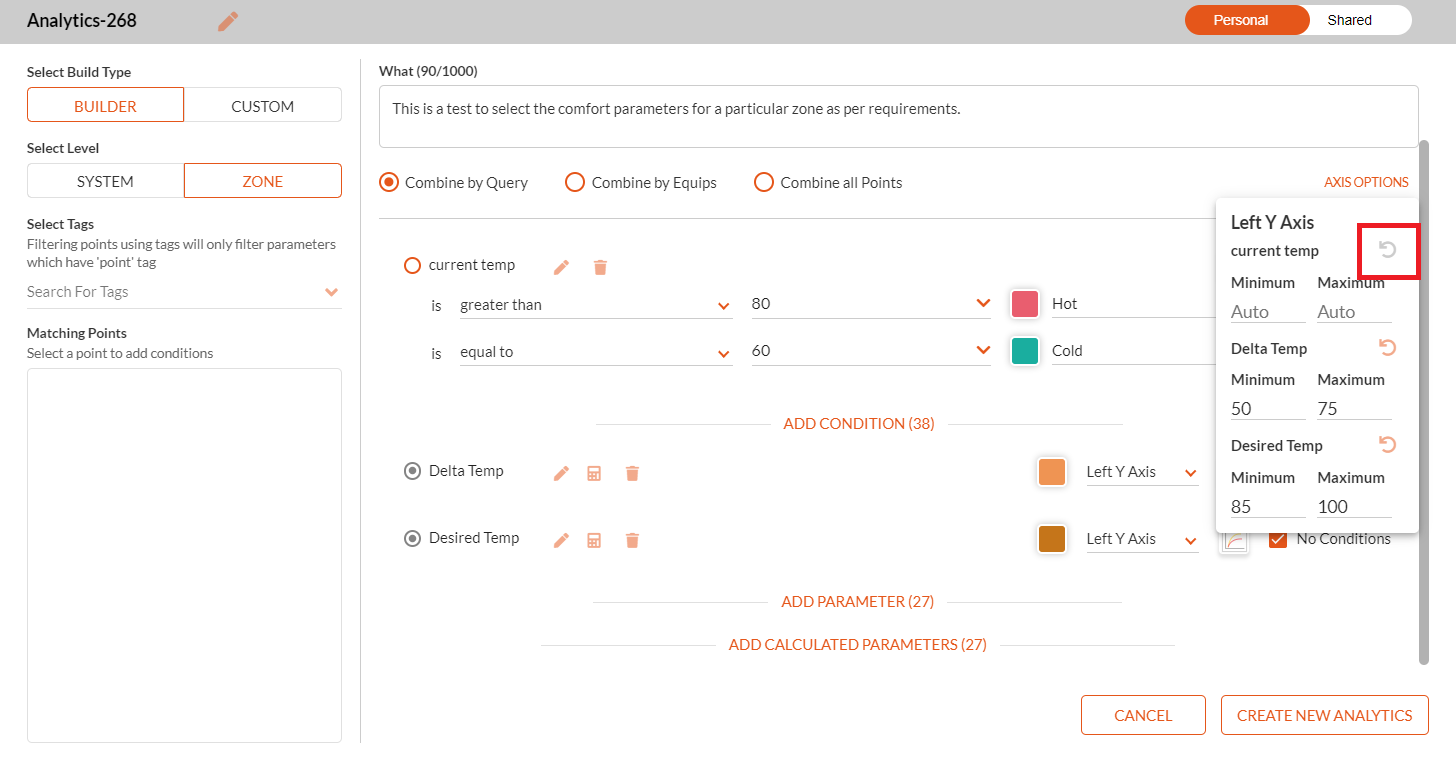

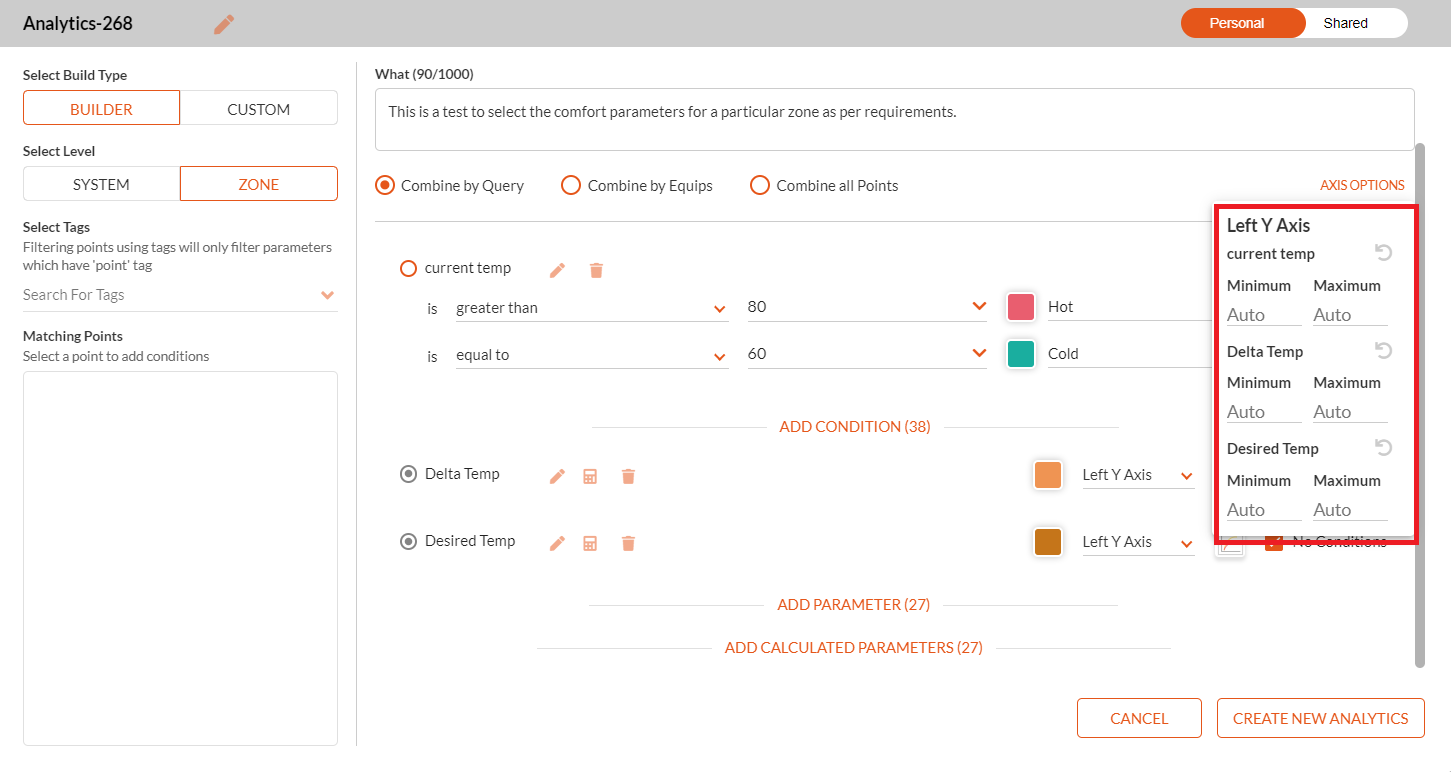

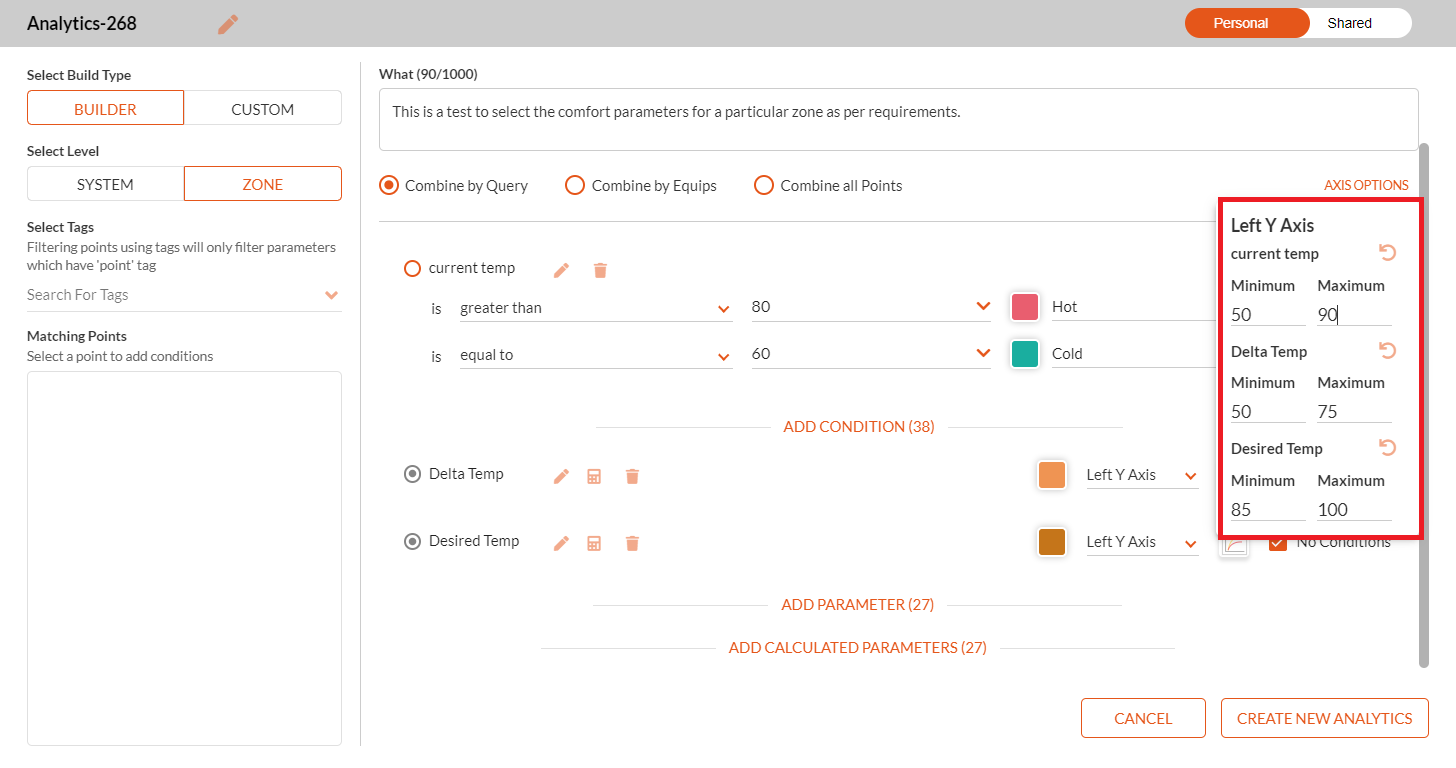

2. Y-Axis Scaling

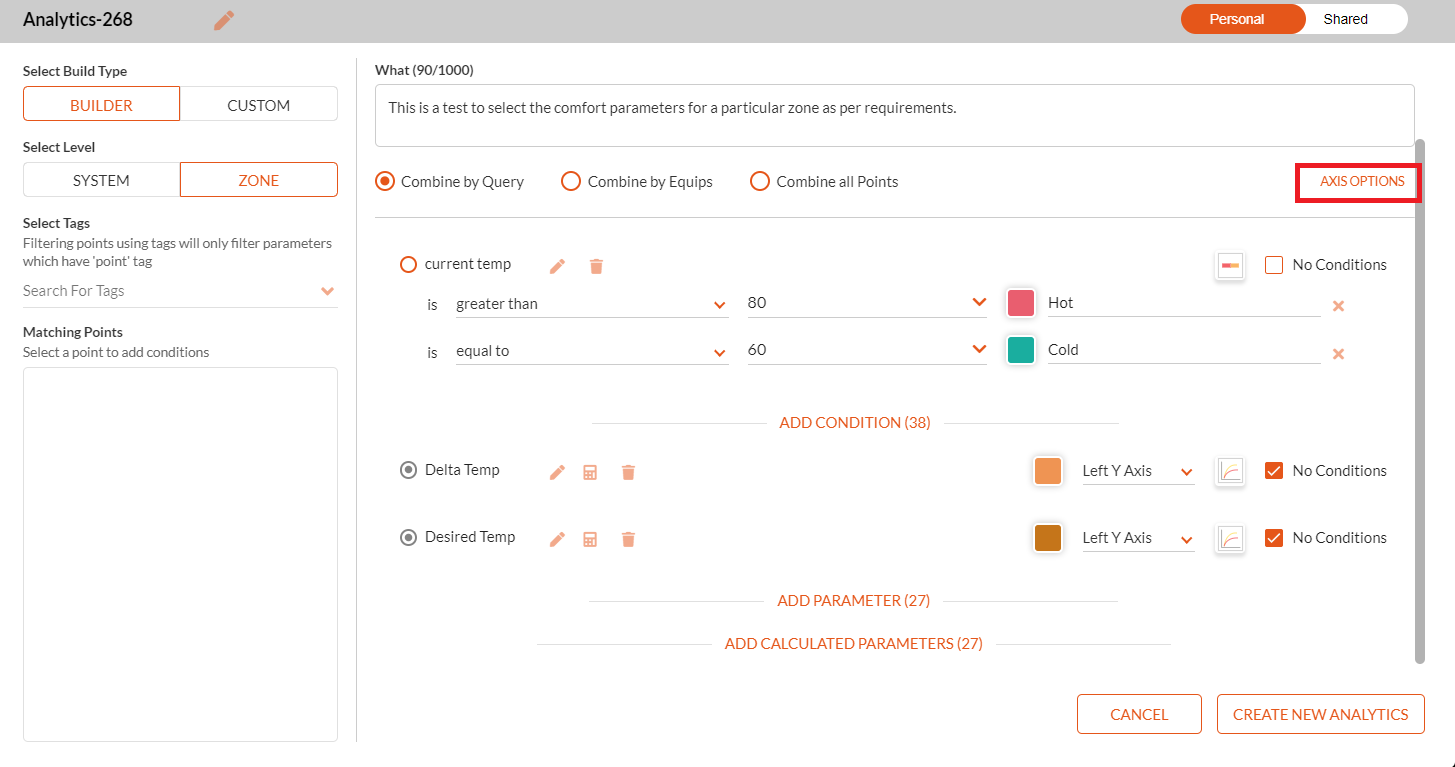

Users will have the flexibility to scale the Y-axis. The “Axis Options” call-to-action will be available for configuration. Depending on the dual-axis setup, users can scale both the left and right Y-axes. They will also be able to set minimum and maximum values for both the left and right Y-axes.
Additionally, users will have the option to revert to the default auto-scaling by clicking on the revert icon. Once the configuration is applied, only the user who created it will have the authority to modify the settings, ensuring consistency.
