Application Note: Control Carrier® Humidi-Mizer® option on WeatherMaster® Single Package RTU with Airoverse® CCU™ Controller

Keywords

Airoverse® CCU™

Carrier®

Carrier® Humidi-Mizer®

WeatherMaster®

Cat. No. 04-811-70007

Form 48HC-4-14-08PD Rev C

Problem

You need an standalone humidistat to control the Humidi-Mizer® feature on the Carrier® WeatherMaster® Package Roof Top Unit. You have no visibility of what the humidistat is doing. Any issue with humidity control has to be addressed onsite.

Solution

The Airoverse® CCU™ allows you to properly control a Carrier® WeatherMaster® unit's Humidi-Mizer® using a contact closure based on a Relative Humidity percentage threshold. This threshold can be adjusted remotely to minimize service calls. De-hum function and average Relative Humidity can be monitored and aid in the troubleshooting process.

Why control with Airoverse®?

When Airoverse® System is used to control the comfort cooling/heating of the roof top unit using the humidity control sequence saves money by replacing a third party and totally standalone Humidistat and allows users to have visibility and control in one centralized user interface.

Wiring at WeatherMaster® RTU's with Humidi-Mizer® option

Humidi-Mizer® System Diagram (See Cat. No. 04-811-70007 for reference)

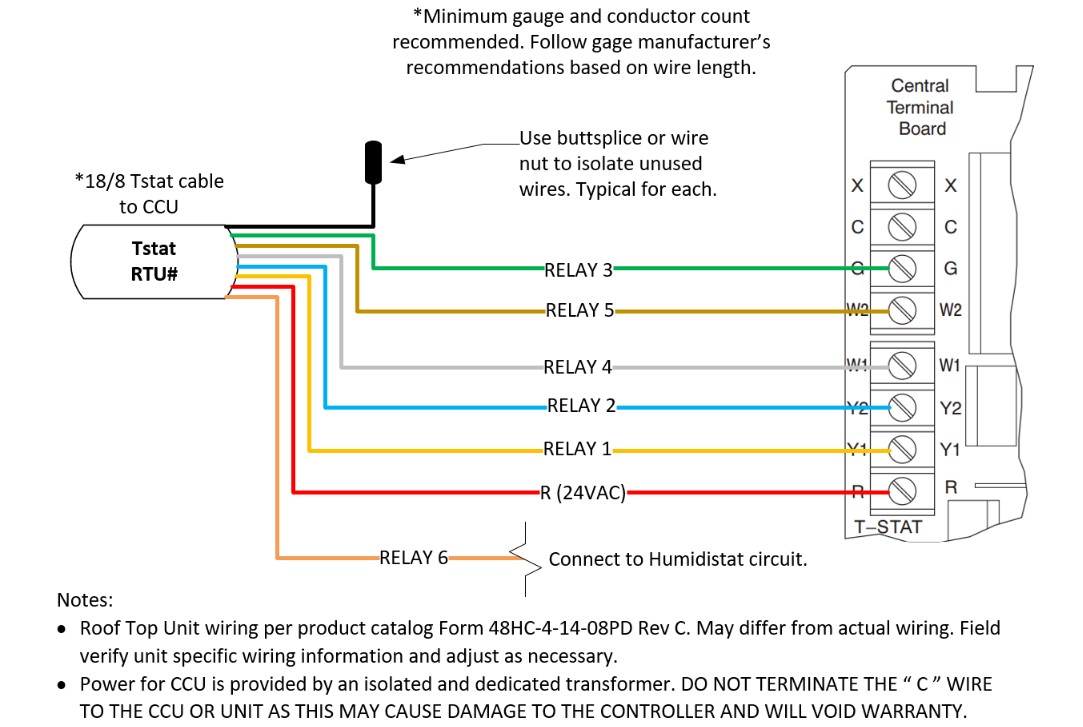

Physical Representation of thermostat terminations (See Form 48HC-4-14-08PD Rev C for reference)

Humidistat connection (See Form 48HC-4-14-08PD Rev C for reference)

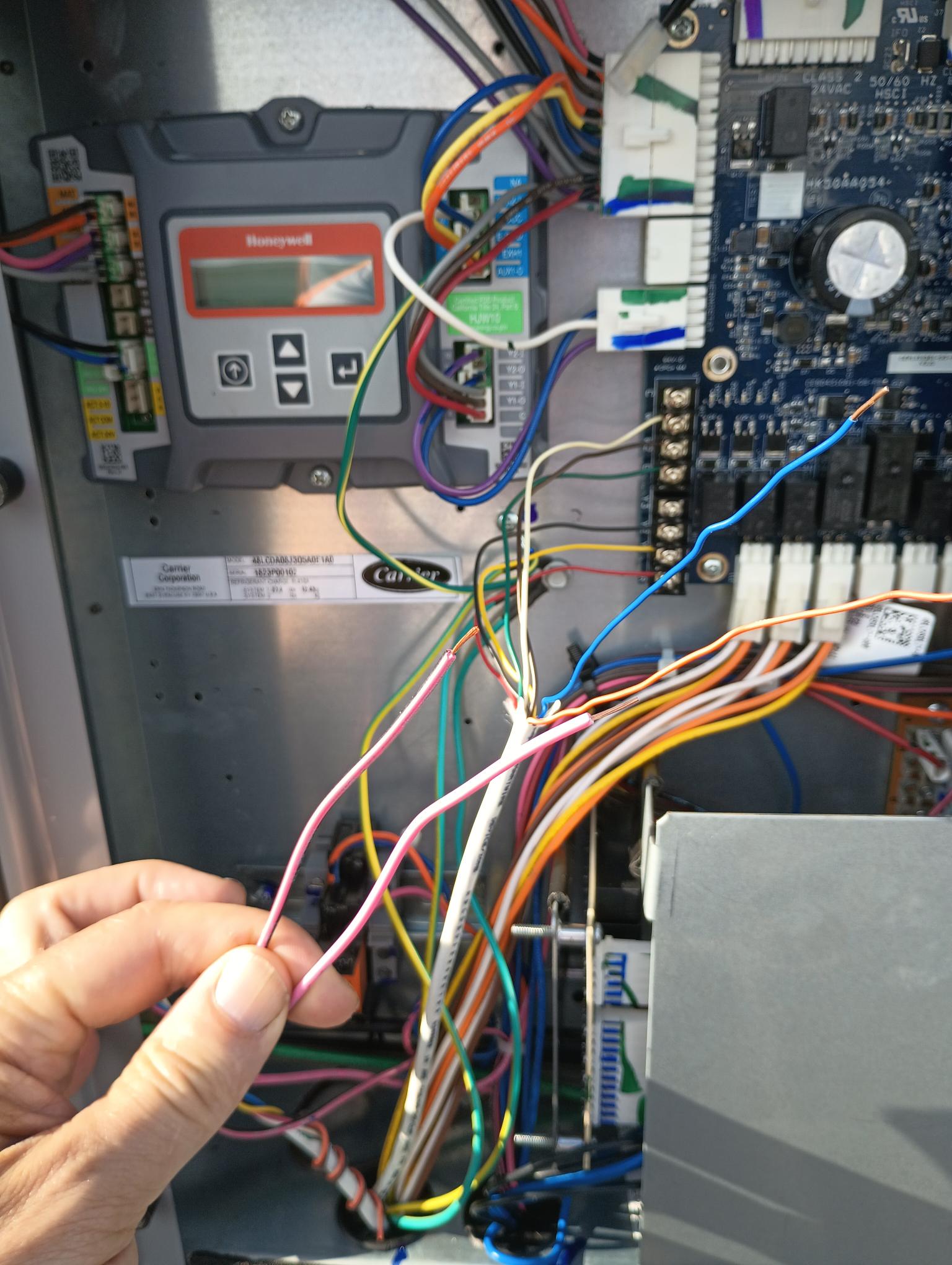

Humidistat wires picture (for reference only)

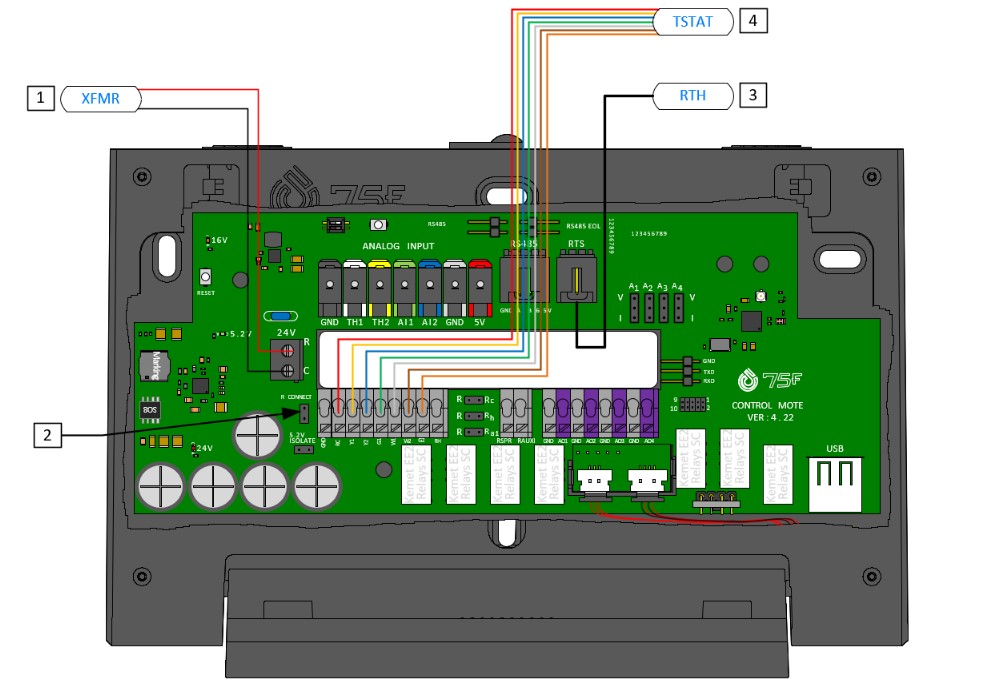

Wiring at Airoverse®CCU™ CM Board

Notes:

1. Airoverse®CCU™ power requirements = 0.8amps @24VAC/DC. A dedicated power supply is highly recommended.
2. Remove R Connect (J14) jumper to use relays as dry contacts. Failure to do so will void the warranty.
3. Install either the Airoverse®Duct Sensor on the Return Ductwork or the Airoverse® Wall Sensor on an area served by the unit for backup or Temp Influencing zone. See Airoverse®CCU™ commissioning notes on Control Design Documents.
4. Thermostat and De-hum connections. Follow manufacturer's gauge recommendations depending on wire length.

Airoverse®CCU™ Commissioning

• System Profile will be configured as a Staged RTU and depending on the application it can be either VAV or DAB.
• Enable: Relay-1, 2, 3, 4, 5, & 6
• Configure Relays as follows:

1. 1. 1. Relay 1 = Cooling Stage 1
      2. Relay 2 = Cooling Stage 2 (If applicable)
      3. Relay 3 = Fan Low Speed(DAB) or Fan Stage 1(VAV)
      4. Relay 4 = Heating Stage 1
      5. Relay 5 = Heating Stage 2 (If applicable)
      6. Relay 6 = Dehumidifier
