Current Standard Solution:
Airoverse offers the ability to control a unit heater with a SmartNode using the Single Stage Equipment (SSE) profile.
Opportunity :
There are scenarios where a customer wants visibility and control of the Unit Heaters in a building.
How does it work? :

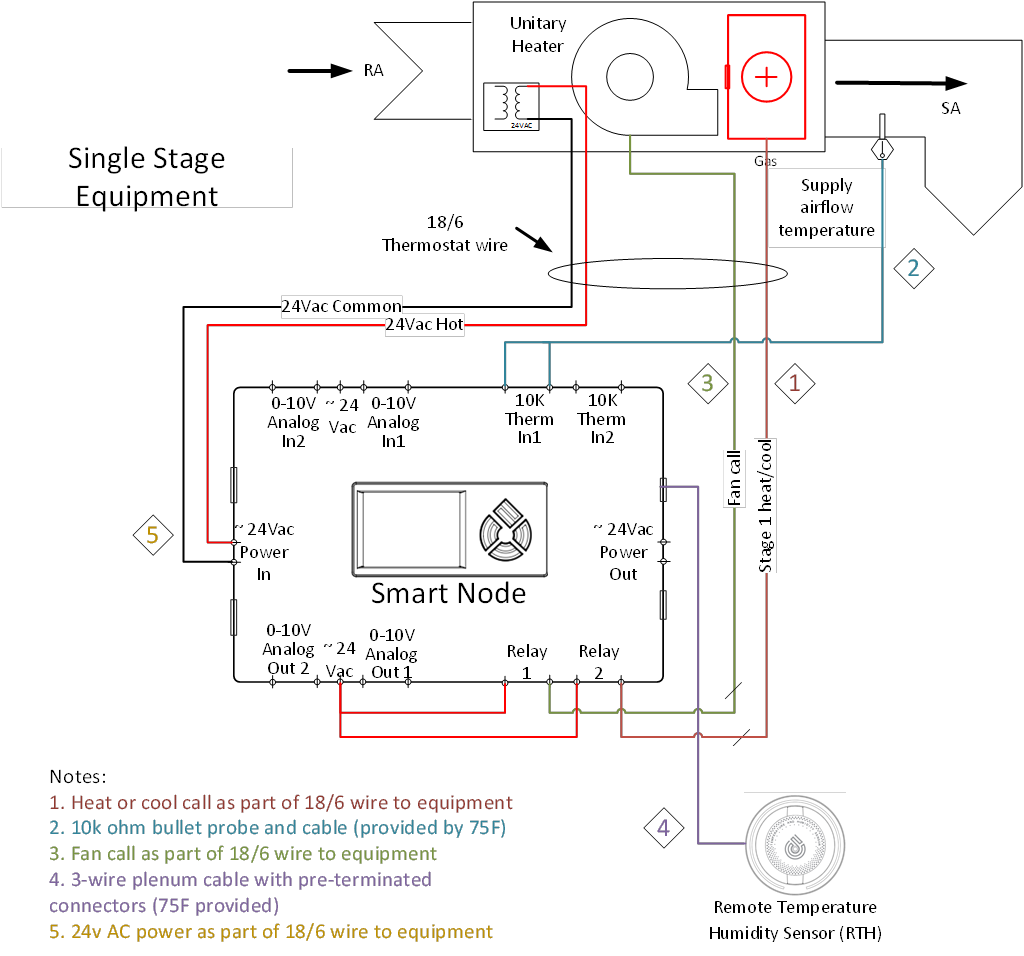

Let's assume the unit heater has a 24v power source. We want to tap into that power supply to power our SmartNode. Next, you want to connect your heating call through Relay 1 on the SmartNode and your fan call (if applicable) through Relay 2. Finally, you want to connect your Airoverse temperature /humidity sensor to the RTS input and a supply air temperature sensor (10K Type 2) to the TH1 input on the SmartNode. See the connection diagram below:
Configuration

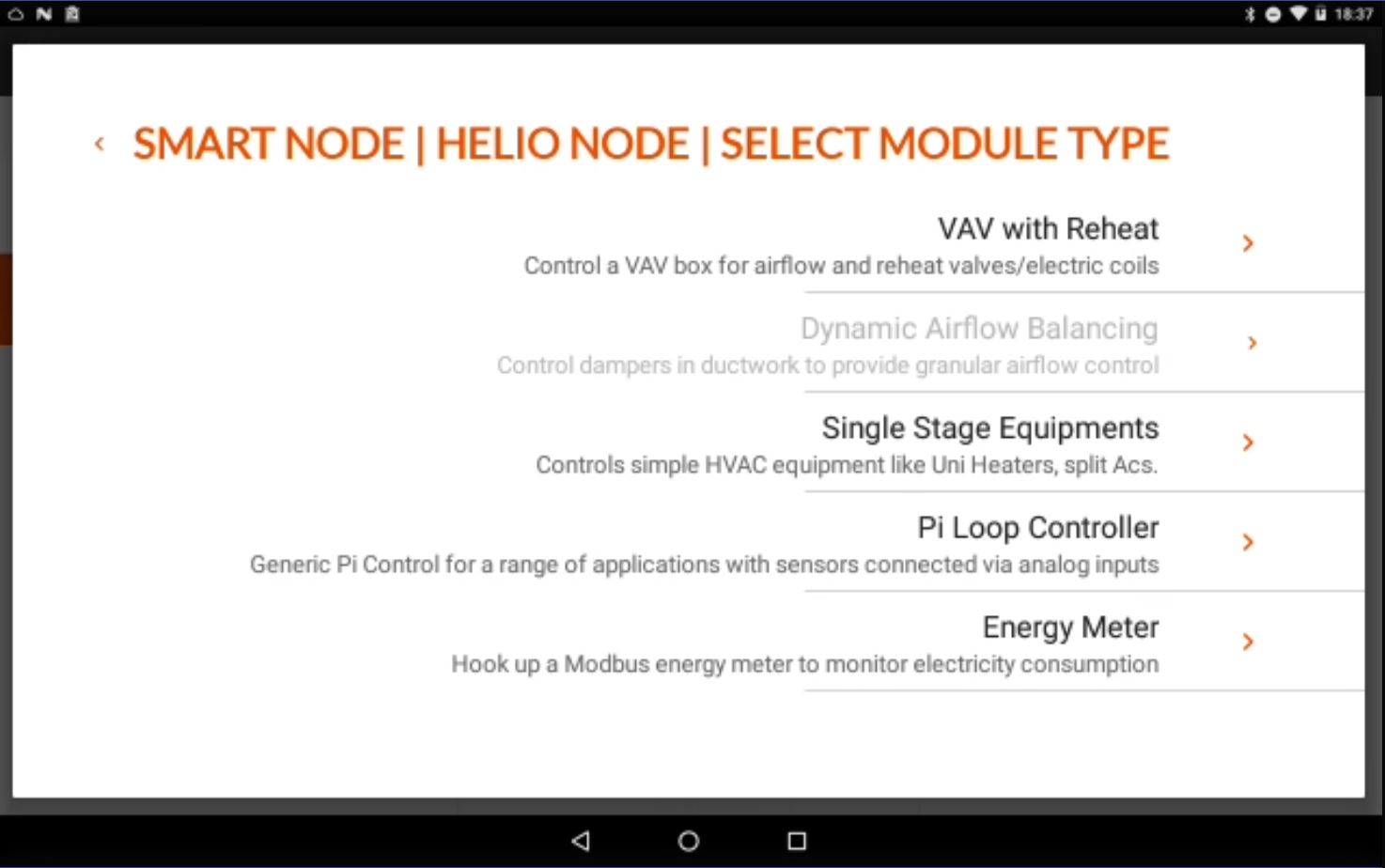

From the Select Module Type screen for the SmartNode,
- Click the Single Stage Equipment option.

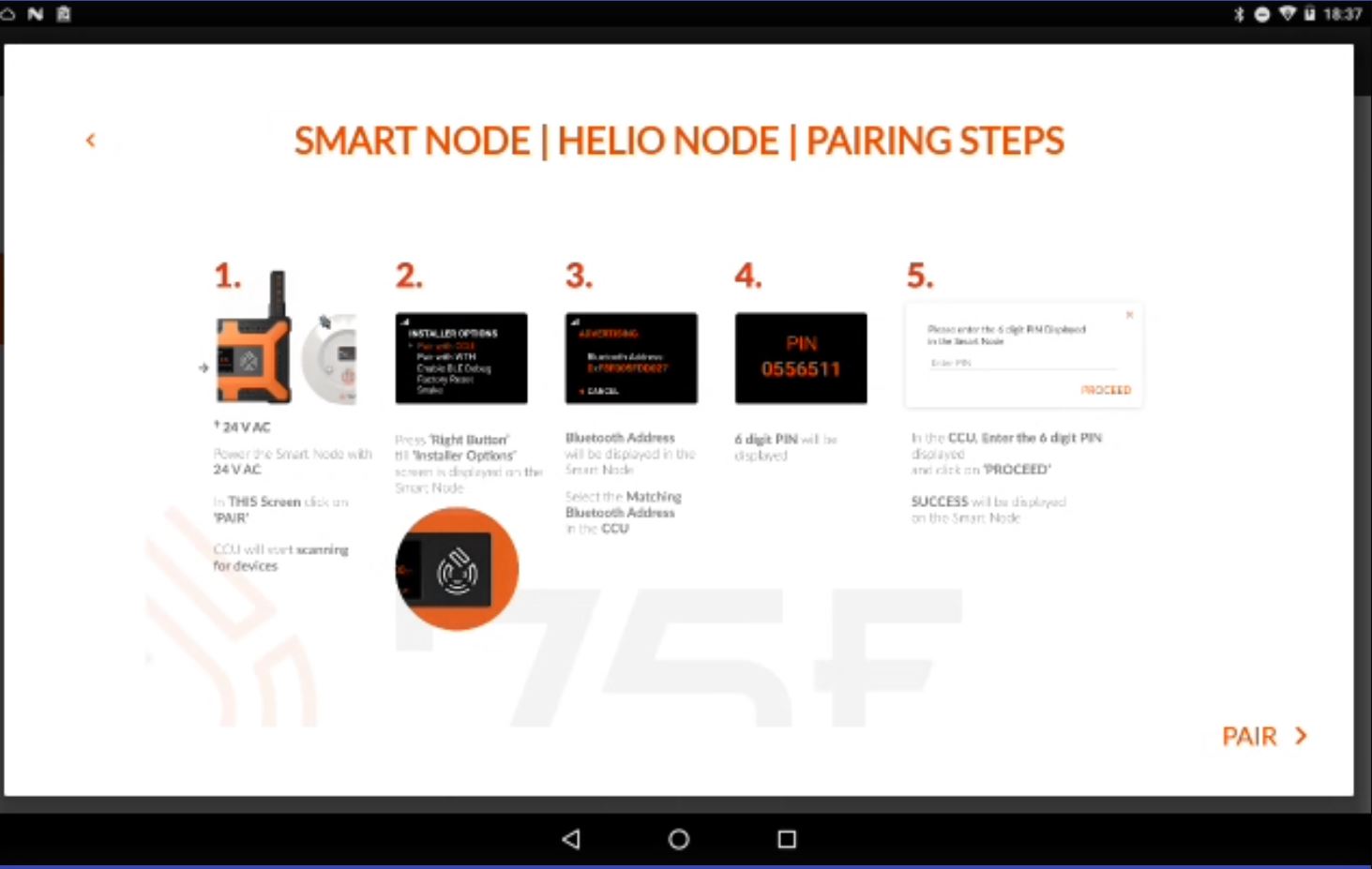

- Follow the instructions for pairing as shown below.

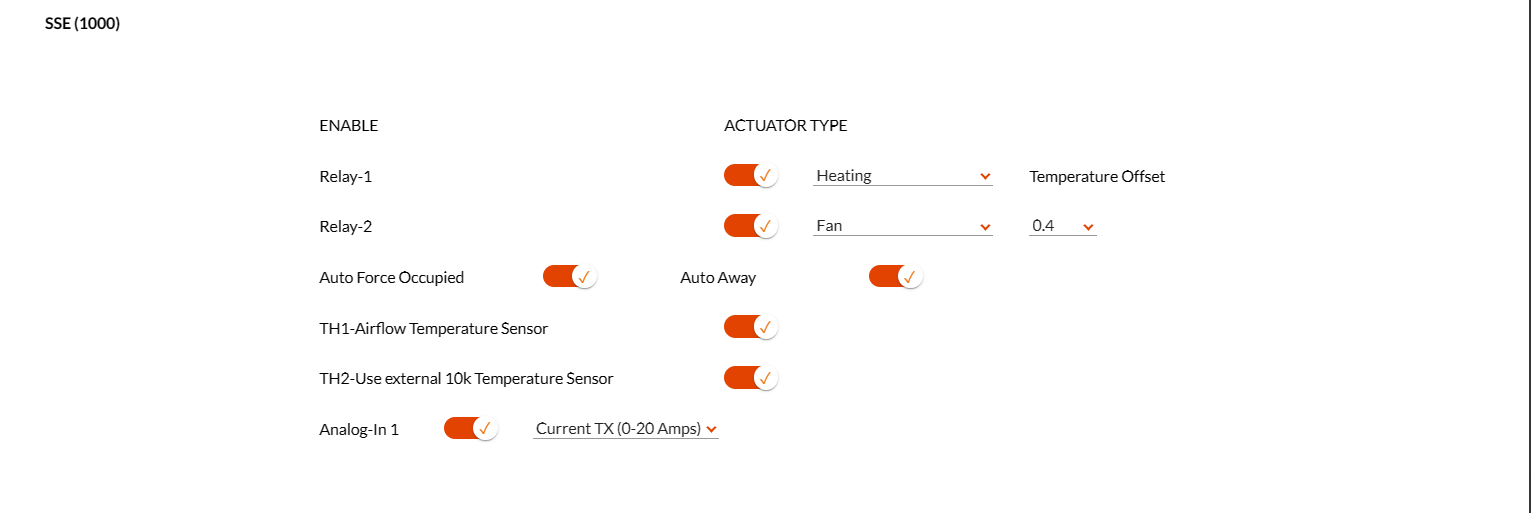

The configuration screen displays the following.
- Relay-1
- Relay-2
- Thermistor-1
- Thermistor-2
- Analog-in 1
Configuration Parameters
|
Parameter |
Purpose |
Default Value |
Values in the drop-down list |
|
Relay 1 |
To enable Heating/Cooling |
Cooling |
Heating Cooling |
|
Relay 2 |
To Enable Fan |
Not Enabled |
Not enabled Fan |
|
Thermistor-1 |
To enable supply air temperature monitoring |
NA |
NA |
|
Thermistor-2 |
To enable external temperature sensing |
NA |
NA |
|
Analog-In1 |
To enable connection of any one type of transformer in the circuit and simply measure the current consumption in the circuit. |
Current TX (0-10Amps) |
Current TX (0-10Amps) Current TX (0-20Amps) Current TX (0-50Amps) |
- Configure the required parameters.
- Click Set to confirm the configuration.
The Single-stage equipment profile using the SmartNode is configured and ready to control the equipment.
The profile data that is aggregated by the CCU can be visualized in the portals.
Note: You can configure SSE modules from CCU but can reconfigure the values from the internal portal.
Post Configuration

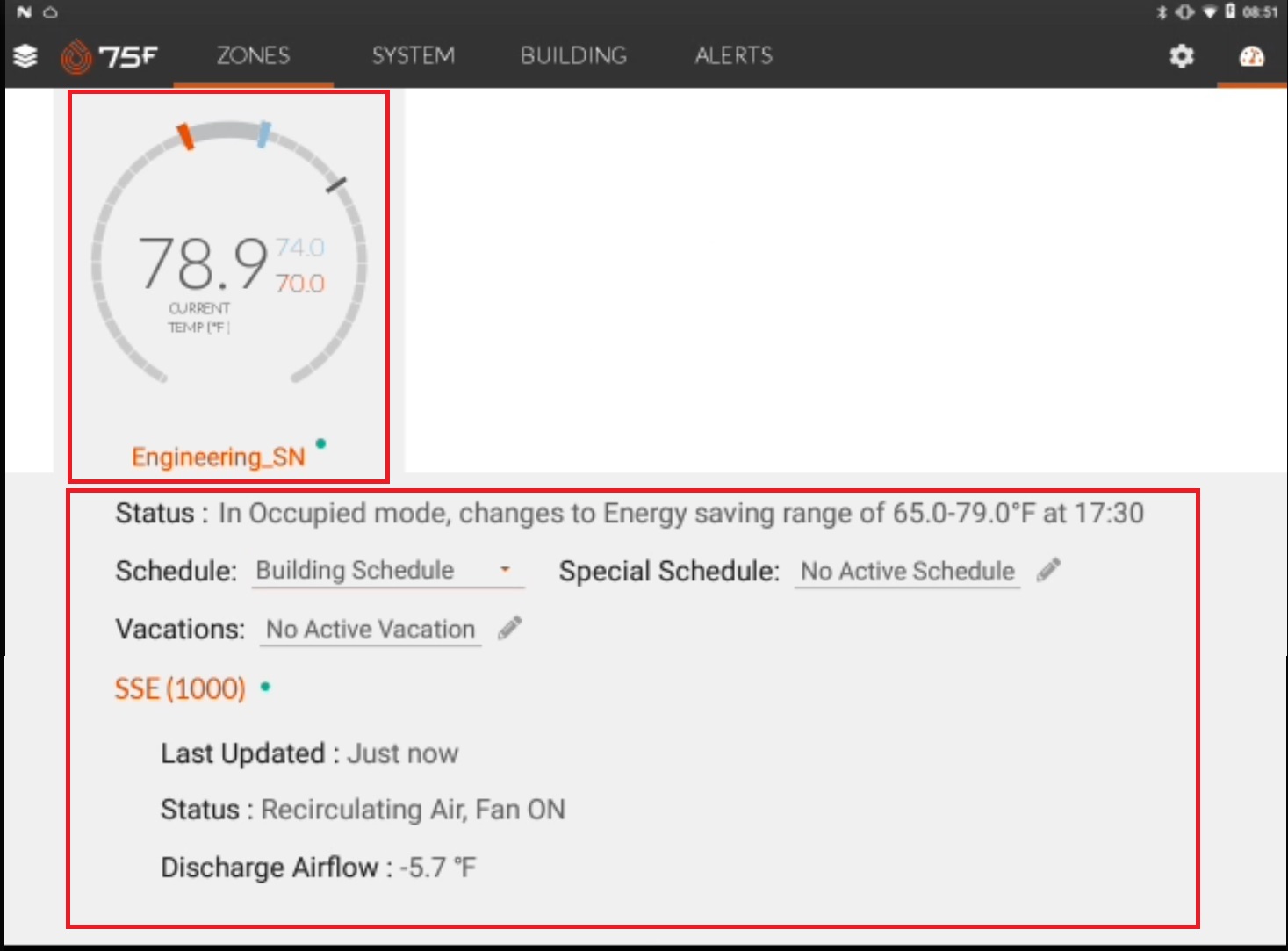

Once an SSE profile for using the SmartNode is configured for a space the same would reflect in CCU as below.

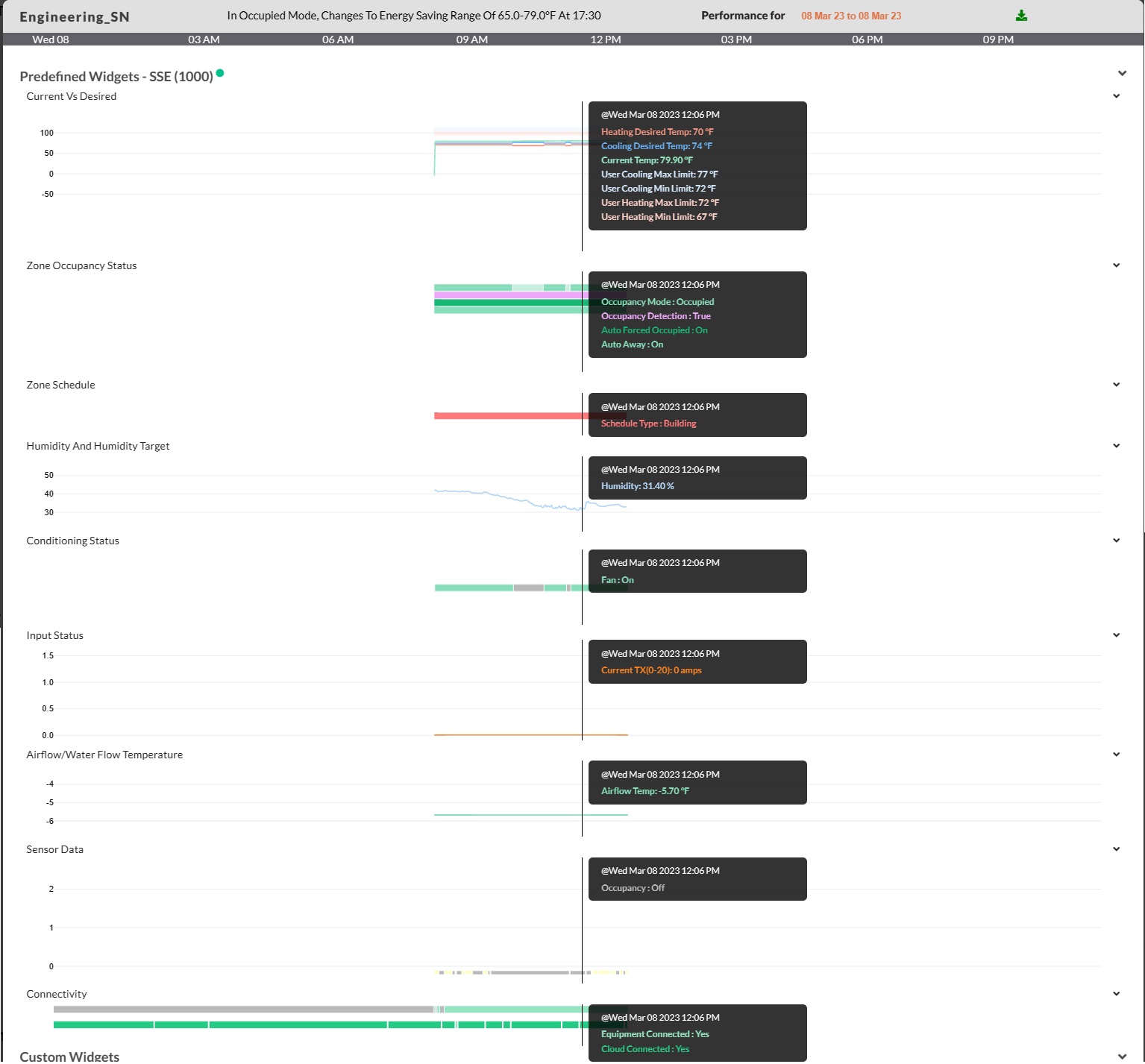

And reflects in the portals as shown below:
Result:
- Unit heaters now have the ability to be monitored and controlled remotely.
- Using a SmartNode with the SSE profile unit heaters can be in setback mode based on the vacation or the unoccupied schedule.
