Application Note : Carrier Split Unit Compatibility with Thermostat Adapter

Solution:

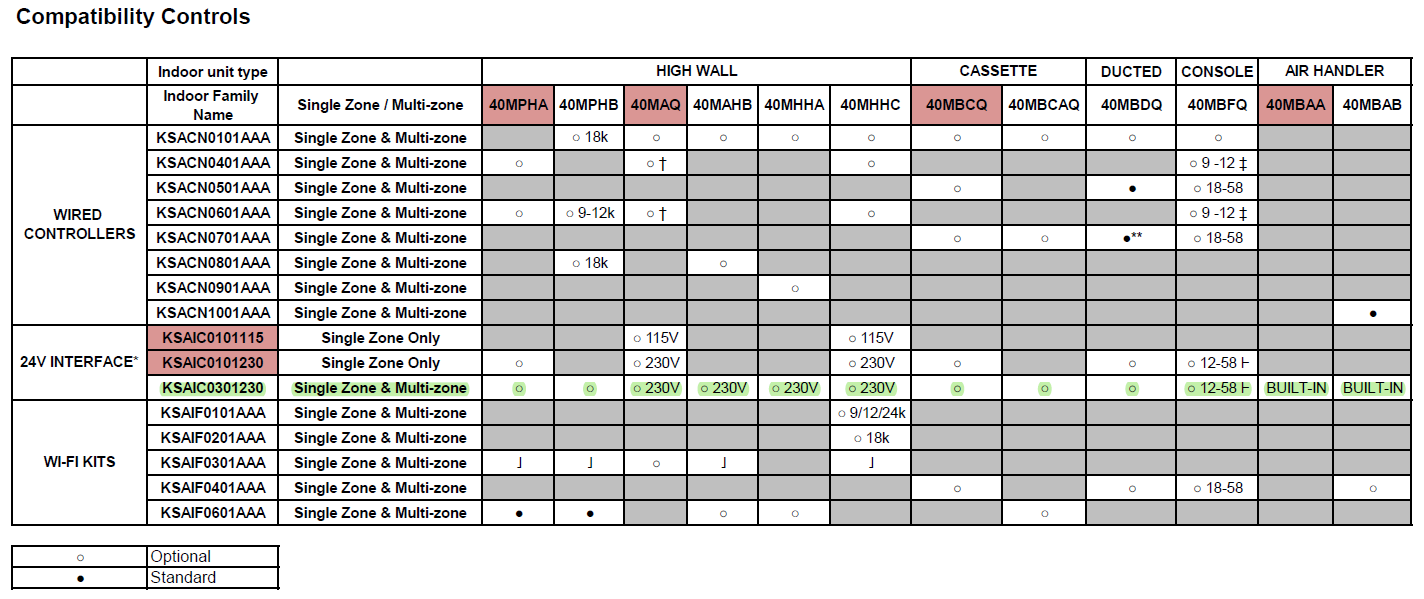

Using the list or attached document, determine if the carrier Split Unit is compatible with a Thermostat Adapter and able to be controlled by Airoverse core product.

Note:

• This is only to be used as a reference to determine if the Models of Split Units can be controlled, not to be used as a design or CDD process.
• The logical diagram refers to control via a CCU, but per the wiring details, this can easily be swapped out for a HyperStat.

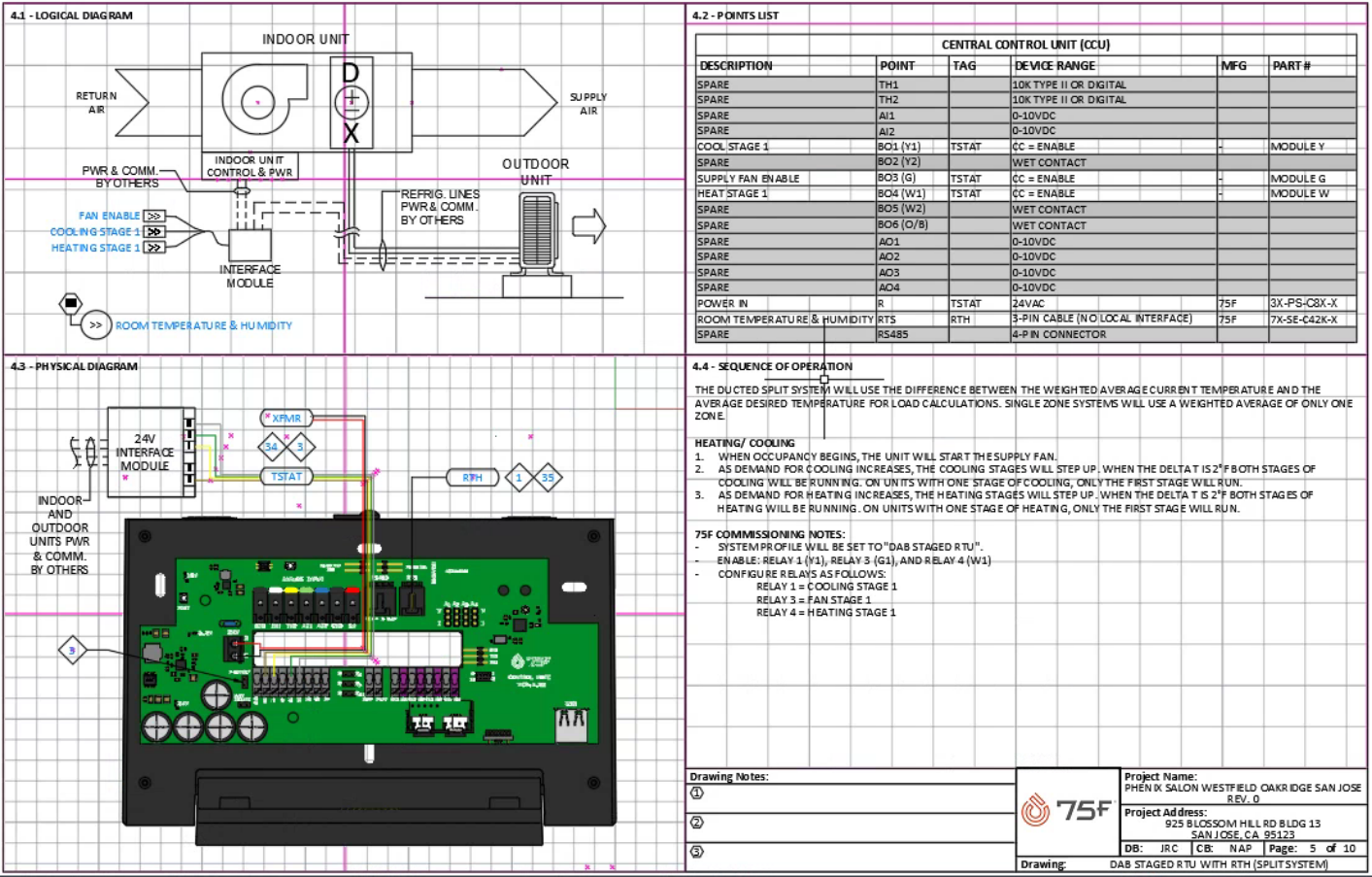

Logical Diagram:

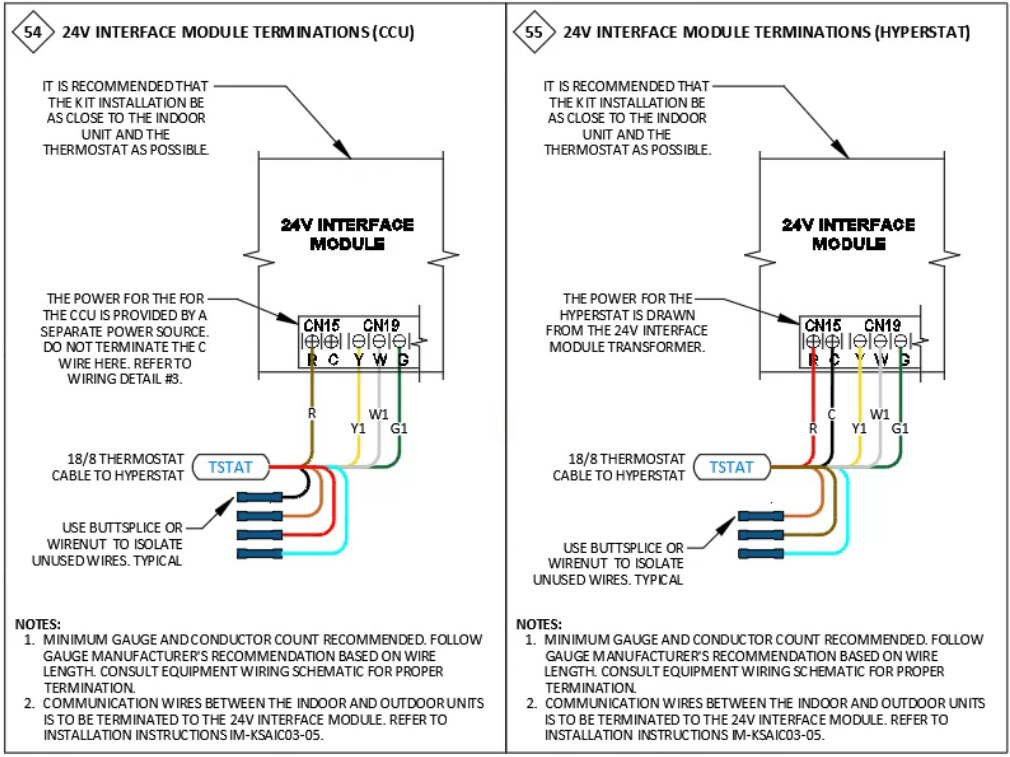

Wiring Details:
