HyperStat Standalone 4 Pipe Fan Coil Unit (4PFCU)

5 Minute Read

| Overview

The HyperStat is part of Airoverse's vertically-integrated suite of intelligent building solutions, delivering multi-mode sensing, remote monitoring , and individual zone control for the comfort and productivity of building occupants, for more information refer to HyperStat Installation & HyperStat UI

The HyperStat hardware is capable to work as a dependent device configured with a Airoverse's CCU configured for various system-level profiles, or with any external Modbus or BACnet devices as a Modbus or BACnet slave, and it can also work as an independent or standalone device which can work as per profiles that can be configured in the HyperStat itself.

This software side support on the HyperStat device provides enhanced control of standalone equipment that is controlled and monitored by the Airoverse solution for both modulating and multi-staged equipment.

The feature is introduced to address the HVAC needs of the customer who would like to use the Airoverse's HyperStat alone for automating the HVAC operation based on certain profiles.

The profiles supported for the standalone operation are.

• Conventional Package Unit (CPU)
• Heat Pump Unit (HPU)
• 2 Pipe Fan Coil Unit (2PFCU)
• 4 Pipe Fan Coil Unit (4PFCU)

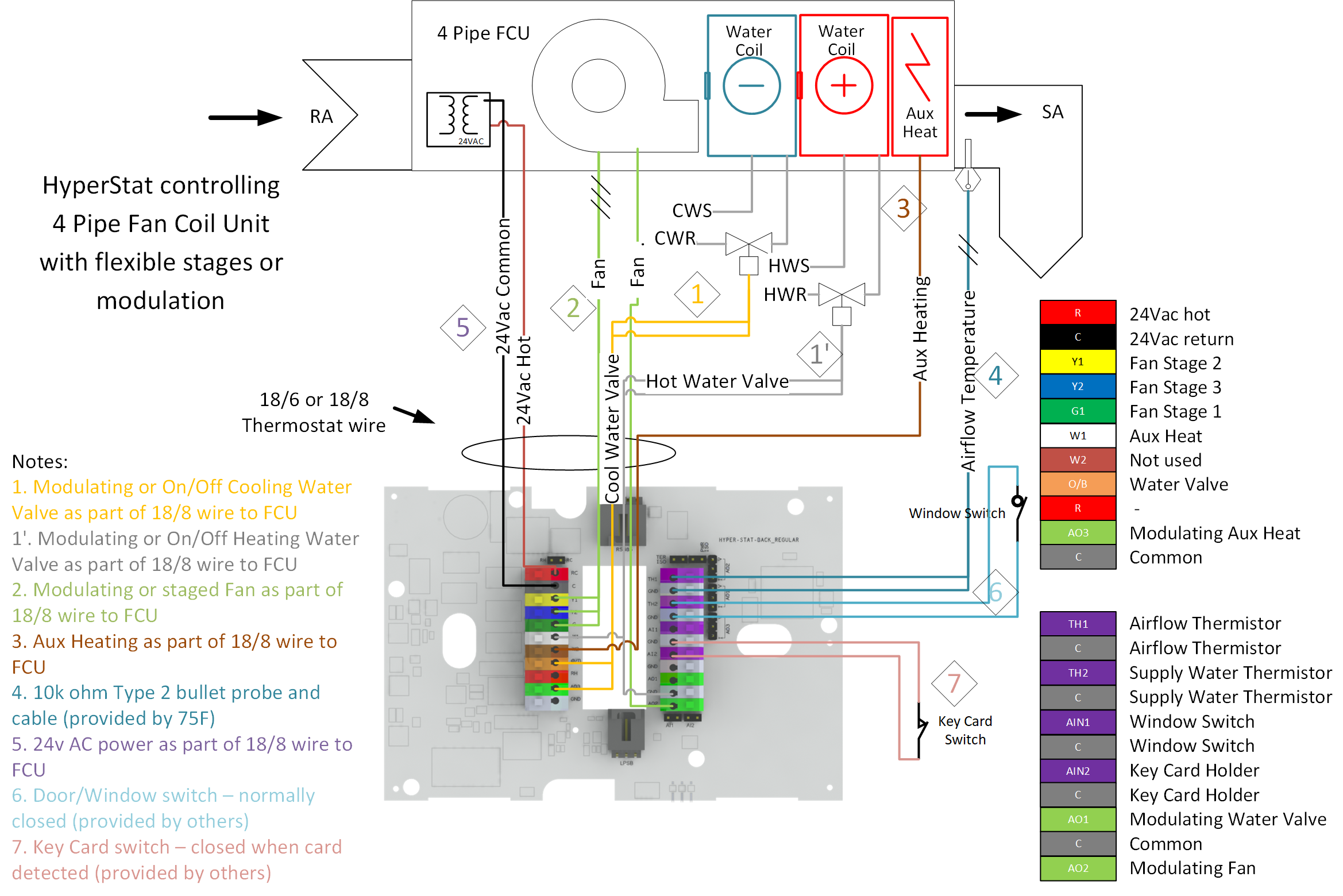

| Wiring

| Setting HyperStat to Standalone

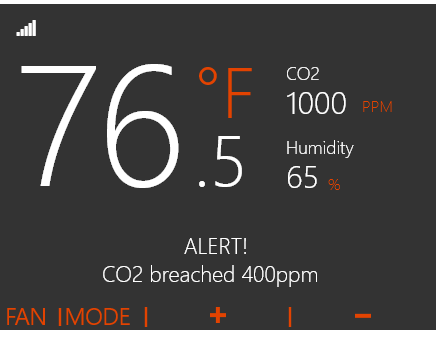

From the HyperStat home UI screen.

• Press the + and -  buttons together to navigate to the other screen of the HyperStat.

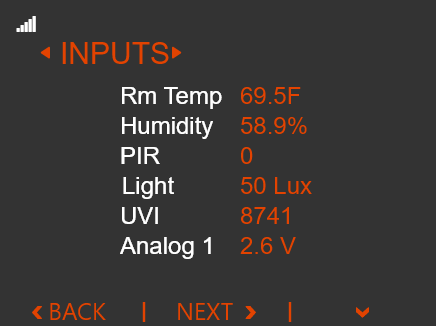

The inputs UI screen is displayed.

From the inputs UI screen.

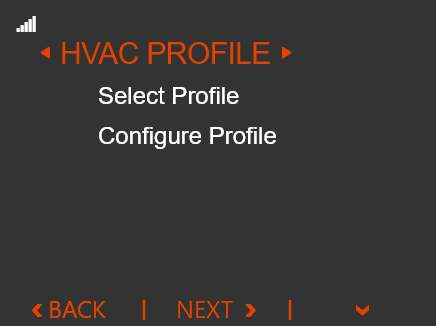

• Press the next button several times to reach the HVAC profile screen.

• Press the down arrow    button to navigate to the select profile option on the screen.

• Press the select button to access the select profile.

• Press the down arrow    button to select the 4 Pipe Fan Coil Unit (4PFCU) profile from the list available.

• Press the back button to confirm setting HyperStat as standalone, select 4 Pipe Fan Coil Unit (4PFCU) as profile, and return to the HVAC profile screen.

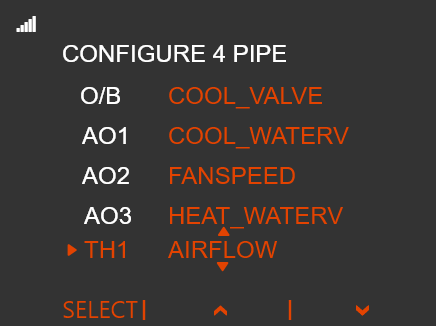

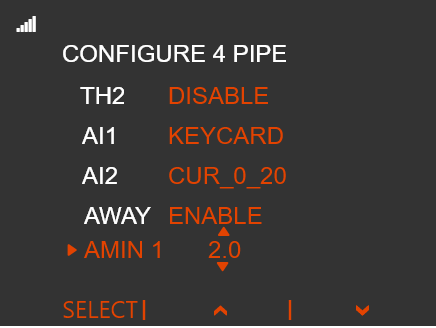

| Configuring Standalone 4 Pipe Fan Coil Unit (4PFCU)

• Press the down arrow button twice to navigate to the Configure profile option.

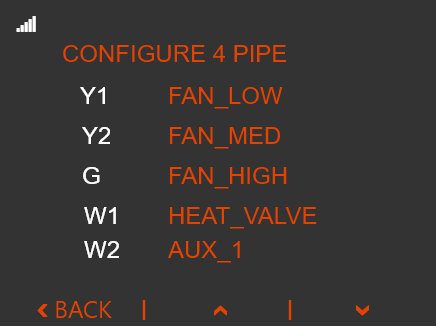

• Press the select button to access the Configure profile option which opens the configuration options available for the 4 Pipe Fan Coil Unit (4PFCU) profile.

• Press the down arrow to navigate to the configuration parameter under the 4 Pipe Fan Coil Unit (4PFCU) profile.

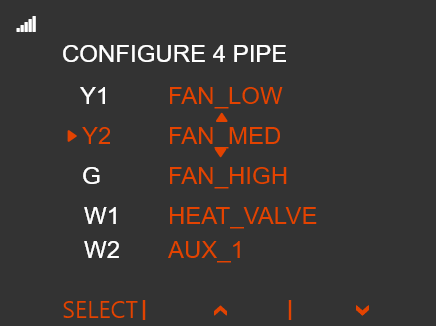

• Press the select button to access the parameters options available under the different configurable relays, analogs, and other available options.

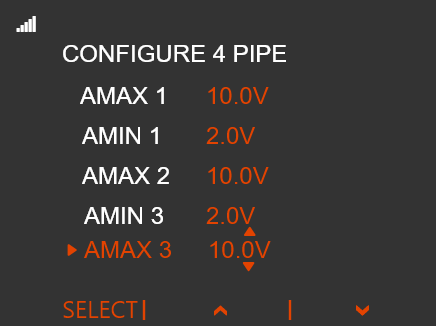

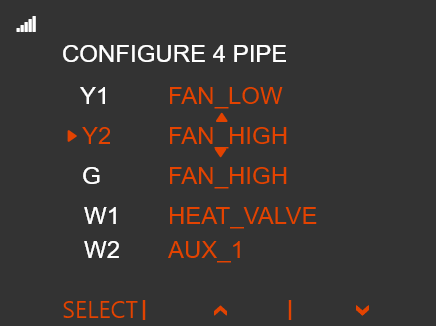

• Press the down and up arrows to locate the required parameter to set for the relays, analogs, and other available options.

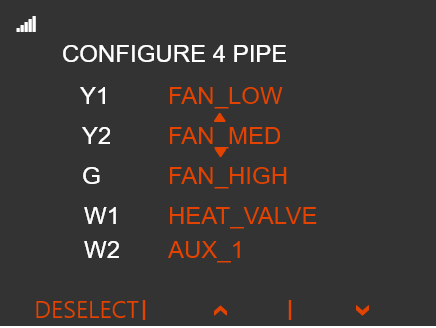

• Press the deselect button to confirm the selection.

• Repeat the above step to navigate, access, and select different parameter options for all the available relays, analogs, and others, till the desired configuration settings are met.
• Refer to the Configuration Parameter table below for the parameter options available under different relays, analogs, and others and their purpose to help in the configuration.

| Configuration Parameters
