| Overview

The HyperStat is part of Airoverse's vertically integrated suite of intelligent building solutions, delivering multi-mode sensing, remote monitoring , and individual zone control for the comfort and productivity of building occupants, for more information refer to HyperStat Installation & HyperStat UI

The HyperStat hardware is capable to work as a dependent device configured with a Airoverse's CCU configured for various system-level profiles, or with any external Modbus or BACnet devices as a Modbus or BACnet slave, and it can also work as an independent or standalone device which can work as per profiles that can be configured in the HyperStat itself.

This software side support on the HyperStat device provides enhanced control of standalone equipment that is controlled and monitored by the Airoverse solution for both modulating and multi-staged equipment.

The feature is introduced to address the HVAC needs of the customer who would like to use the Airoverse's HyperStat alone for automating the HVAC operation based on certain profiles.

The profile supported for the standalone operation are.

Conventional Package Unit (CPU)
Heat Pump Unit (HPU)
2 Pipe Fan Coil Unit (2PFCU)
4 Pipe Fan Coil Unit (4PFCU)

| Wiring

| Setting HyperStat to Standalone

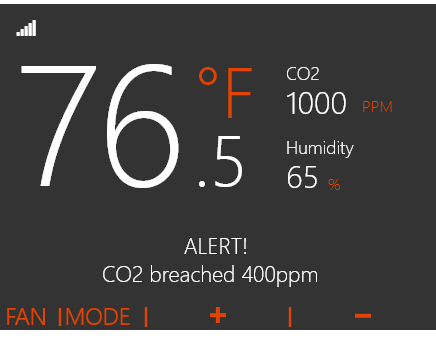

From the HyperStat home UI screen.

Press the + and - buttons together to navigate to the other screen of the HyperStat.

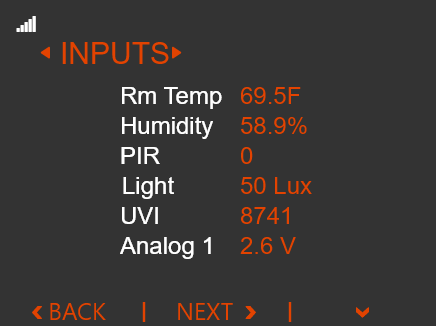

The inputs UI screen is displayed.

From the inputs UI screen.

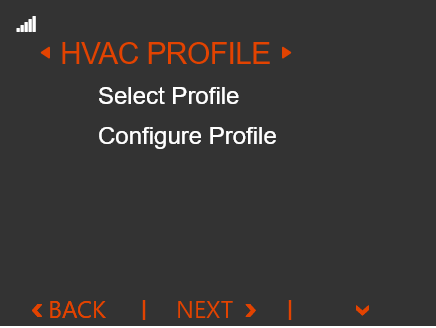

Press the next button several times to reach the HVAC profile screen.

Press the down arrow button to navigate to the select profile option on the screen.

Press the select button to access the select profile.

Press the down arrow button to select the Heat Pump Unit (HPU) profile from the list available.

Press the back button to confirm setting HyperStat as standalone, select Heat Pump Unit (HPU) as profile, and return to the HVAC profile screen.

| Configuring Standalone Heat Pump Unit (HPU)

Press the down arrow button twice to navigate to the Configure profile option.

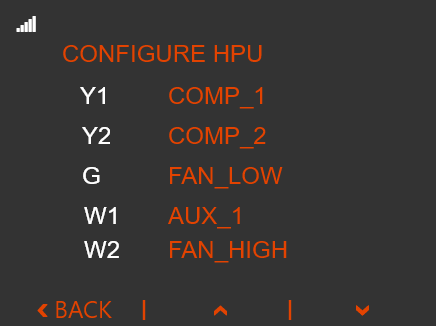

Press the select button to access the Configure profile option, which opens the configuration options available for the Heat Pump Unit (HPU) profile.

Press the down arrow to navigate to the configuration parameters under the Heat Pump Unit (HPU) profile.

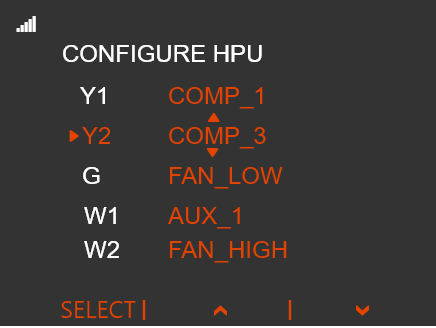

Press the select button to access the parameters options available under the different configurable relays, analogs, and other available options.

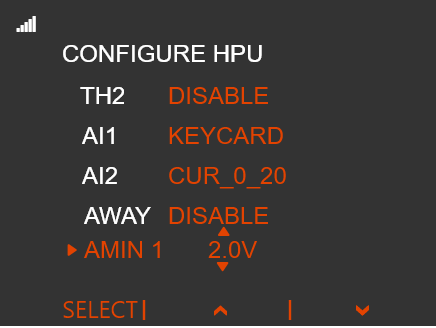

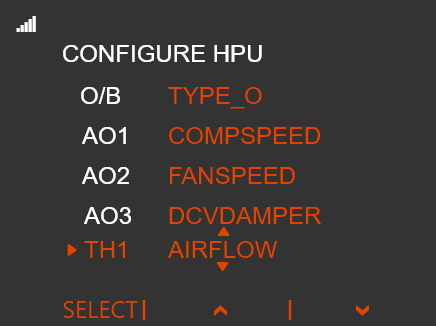

Press the down and up arrows to locate the required parameter to set for the relays, analogs, and other available options.

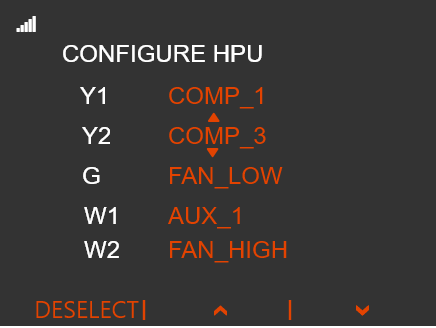

Press the deselect button to confirm the selection.

Repeat the above step to navigate, access, and select different parameter options for all the available relays, analogs, and others, till the desired configuration settings are met.
Refer to the Configuration Parameter table below for the parameter options available under different relays, analogs, and others and their purpose to help in the configuration.

| Configuration Parameters

Parameter	Purpose	Default Value	Values in the drop-down list
Relay 1 (Y1)	To enable compressors control stages/ Humification/ occupancy	Compressor Speed Stage 1	Disable Compressor stage 1 Compressor stage 2 Compressor stage 3 Aux Heating stage1 Aux Heating Stage2 Fan low speed Fan medium speed Fan highspeed Fan Enable Occupancy Enable Humidifier Dehumidifier Type_O Type_B
Relay 2 (Y2)	To enable compressors control stages/ Humification/ occupancy	Compressor Speed Stage 2	Disable Compressor stage 1 Compressor stage 2 Compressor stage 3 Aux Heating stage1 Aux Heating Stage2 Fan low speed Fan medium speed Fan highspeed Fan Enable Occupancy Enable Humidifier Dehumidifier Type_O Type_B
Relay 3 (G)	To enable compressors control stages/ Humification/ occupancy	Fan low speed	Disable Compressor stage 1 Compressor stage 2 Compressor stage 3 Aux Heating stage1 Aux Heating Stage2 Fan low speed Fan medium speed Fan highspeed Fan Enable Occupancy Enable Humidifier Dehumidifier Type_O Type_B
Relay 4 (W1)	To enable compressors control stages/ Humification/ occupancy	Aux Heating Stage 1	Disable Compressor stage 1 Compressor stage 2 Compressor stage 3 Aux Heating stage1 Aux Heating Stage2 Fan low speed Fan medium speed Fan highspeed Fan Enable Occupancy Enable Humidifier Dehumidifier Type_O Type_B
Relay 5 (W2)	To enable compressors control stages/ Humification/ occupancy	Fan High Speed	Disable Compressor stage 1 Compressor stage 2 Compressor stage 3 Aux Heating stage1 Aux Heating Stage2 Fan low speed Fan medium speed Fan highspeed Fan Enable Occupancy Enable Humidifier Dehumidifier Type_O Type_B
Relay 6 (O/G)	To enable compressors control stages/ Humification/ occupancy	Type_O	Disable Compressor stage 1 Compressor stage 2 Compressor stage 3 Aux Heating stage1 Aux Heating Stage2 Fan low speed Fan medium speed Fan highspeed Fan Enable Occupancy Enable Humidifier Dehumidifier Type_O Type_B
Analog out 1	To enable compressor speed/ Fan speed/ / DCV damper	Compressor Speed	Disable Compressor Speed Fan Speed DCV Damper
Analog out 2	To enable compressor speed/ Fan speed/ / DCV damper	Fan speed	Disable Compressor Speed Fan Speed DCV Damper
Analog out 3	To enable compressor speed/ Fan speed/ / DCV damper	DVC Damper	Disable Compressor Speed Fan Speed DCV Damper
Thermistor 1	To enable Airflow sensing	Airflow	Disable Airflow
Thermistor 2	To enable door window open close sensing	Disable	Disable Door/Window 1
Analog Input 1	To enable Keycard sensing/ Door window 2 sensing/ current consumed status sensing	Keycard	Disable Current TX (0-10Amps) Current TX (0-20Amps) Current TX (0-50Amps) Keycard Door/Window 2
Analog Input 2	To enable Keycard sensing/ Door window 2 sensing/ current consumed status sensing	Current TX (0-20Amps)	Disable Current TX (0-10Amps) Current TX (0-20Amps) Current TX (0-50Amps) Keycard Door/Window 2
Auto Away	To enable auto away capabilities	Disable	Disable Enable
Analog Min 1	To set the analog out values for modulating conditioning controls	2V	Range from 0V to 10V in 2V increments
Analog Max 1	To set the analog out values for modulating conditioning controls	10V	Range from 10V to 0V in 2V increments
Analog Min 2	To set the analog out values for modulating conditioning controls	2V	Range from 0V to 10V in 2V increments
Analog Max 2	To set the analog out values for modulating conditioning controls	10V	Range from 10V to 0V in 2V increments
Analog Min 3	To set the analog out values for modulating conditioning controls	2V	Range from 0V to 10V in 2V increments
Analog Max 3	To set the analog out values for modulating conditioning controls	10V	Range from 10V to 0V in 2V increments
