Use Case:

In many scenarios, like in public spaces or high traffic areas, the installation of a controller or thermostat can lead to unwanted settings changes and even damage. In those cases its better to install the controller or thermostat in a less accessible area to the public to prevent unauthorized access or damage to the controller.

Problem:

There are times when the location of the sensors is far away from the controller. Also, since Airoverse sensors are digital they cannot be spliced multiple times since this will affect the communication between the controller and the sensor. Airoverse provides pre-terminated cables of various lengths, up to 100 ft, for the 3-pin digital sensors. But there are times that a longer cable is needed.

Solution:

A custom length cable can be built in the field without the use of special equipment or tools. A cable of up to 300ft can be built to connect the Airoverse Wall Sensor and Airoverse Duct Sensor V2.0 to the controller. When using a Airoverse Multi Sensor the max recommended length is 150ft. The custom length cable kit includes the following:

• (1) 1000ft reel of 22 AWG 3 conductor with shield and drain Plenum rated cable. (Specified cable is required)
• (10) 3-pin Female Molex connector to 3 pin female METZ connector adapter.(Each item can be purchased separate)

Results:

• Easy to install with the 3-pin connectors.

• No temperature reading drops.
• Controllers can all be placed in an office or centralized location for easy access.

Wiring Details:

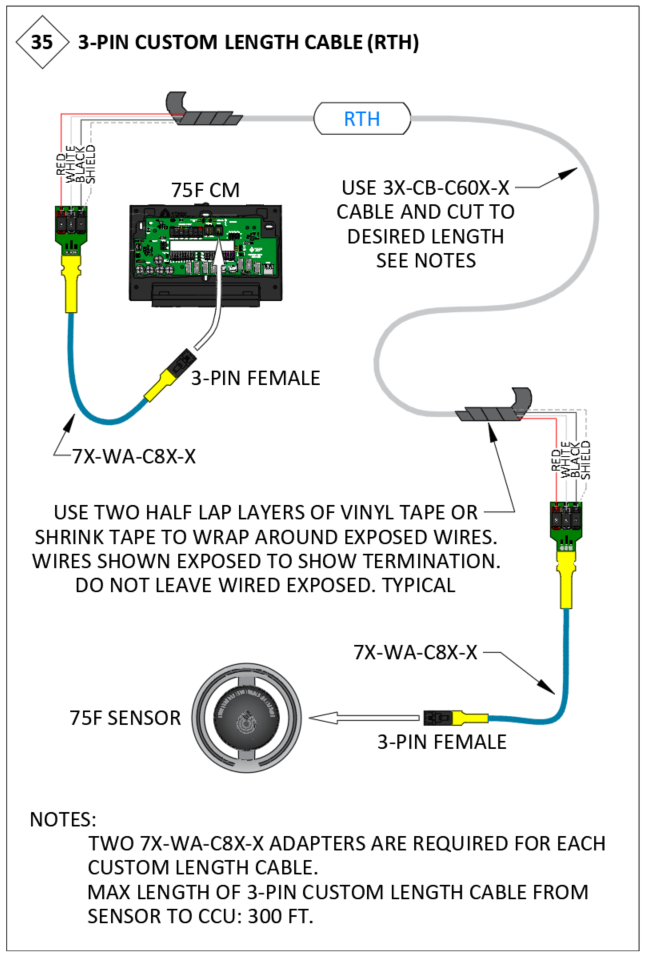

Airoverse Wall Sensor (Black):

Airoverse White Wall Sensor:

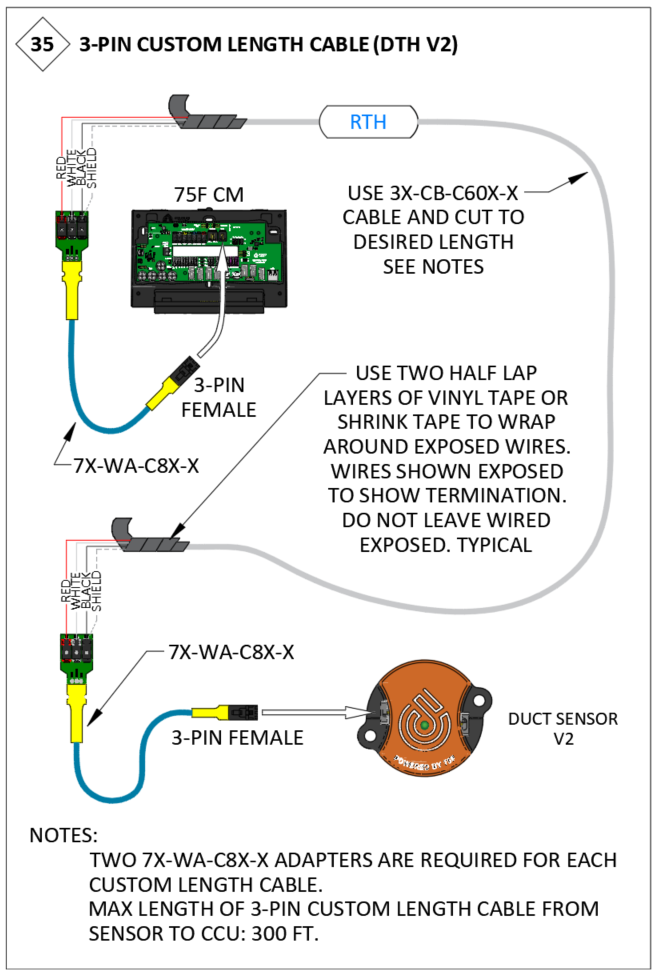

Airoverse Duct Sensor V2.0:

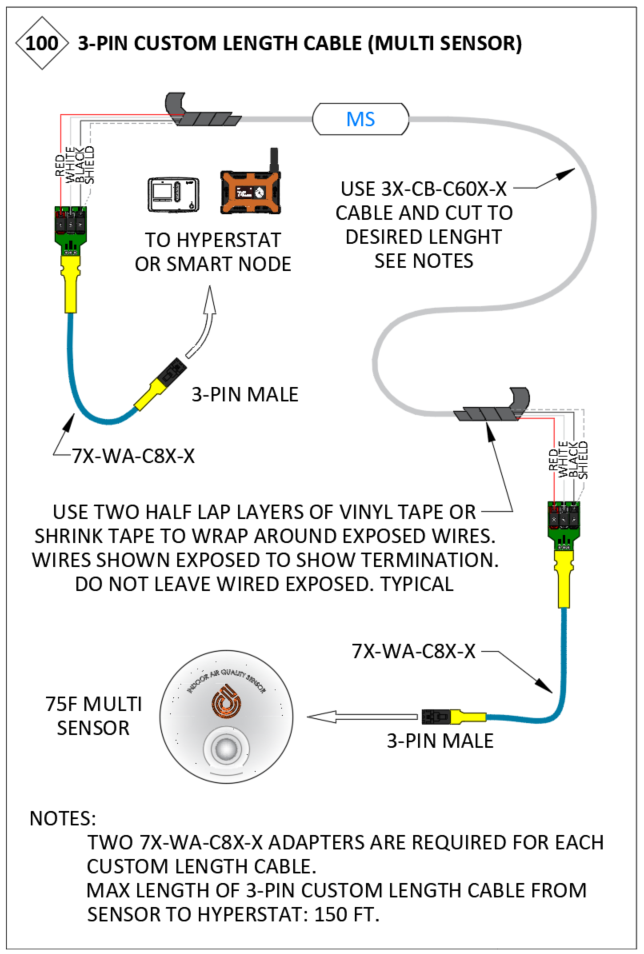

Airoverse Multi Sensor:

Ordering Detail:
