Ceiling/Flush Mount/Duct Sensor - Installation & Initial Setup

2 Minute Read

| Ceiling/Flush Mount/Duct Sensors

| Ceiling Sensor

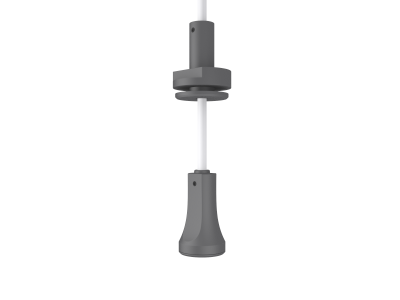

The Ceiling Sensor adds a high-precision temperature and humidity sensor that is pre-calibrated from the factory. The Ceiling Sensor is easily mounted on a ceiling by a threaded bush. The module drop from the ceiling can be adjusted via a set screw.

The Ceiling Sensor uses a proprietary sensor bus to communicate with a master device such as a SmartNode. In principle, the Ceiling Sensor can be daisy chained with other sensors on the sensor bus to provide an extensible sensor network.

| Flush Mount Sensor

The Flush Mount Sensor adds a high-precision temperature and humidity sensor that is pre-calibrated from the factory. The Flush Mount Sensor is easily mounted on a wall or metal beam duct by self-drilling screws. Unlike a Wall Sensor, it does not involve drilling a hole for the mounting or running the wiring behind the surface.

The Flush Mount Sensor uses a proprietary sensor bus to communicate with a master device such as a SmartNode- OAO.

| Duct Sensor

The Duct Sensor adds a high-precision temperature and humidity sensor that is pre-calibrated from the factory. The Duct Sensor is easily mounted on an RTU duct by self-drilling screws.

The Duct Sensor uses a proprietary sensor bus to communicate with a master device such as a SmartNode- OAO.

Specs

• Temperature (typical +/-0.2C)
• Humidity (typical +/- 2% R.H.)

3-Pin interface for power and communication

| Sensor Applications

All sensors can be used in any of the following applications DAB, VAV, OAO, Single Stage Equipment, Hot Water Mixing, and IFTT Logic.

Note: The Flush Mount Sensor and Duct Sensor share the same faceplate. The difference between the two sensors is the sensing probe on the back of the Duct Sensor vs the flat surface on the back of the Flush Mount Sensor.
